Interface Module Automax Automate DCS 5000 A/B 57418.



Sell Surplus: Have a 57C418 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 57C418
  • SKU: 57C418RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

57C418 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 57C418
Product Type A-B Interface Module
Instruction Manual J2-3016

Product Description

The 57C418 is an A-B Interface Module designed by Reliance Electric. There is a good probability that this model was also sold by Asea Brown Boveri or Baldor Reliance. None of the initial manufacturers are still maintaining the 57C418 and it may be hard to find. AX Control makes every attempt to keep this part in stock. Please consult our website for the status of the 57C418.

Reliance Electric created the 57C418 to be an A-B Interface Module for interfacing with both Allen-Bradley and AutoMax Systems. It allows these two different types of controllers to transmit data between each other. AutoMax processor and Allen-Bradley devices are allowed to make this connection while using A-B specific instructions. These instructions have the ability to fool the Allen-Bradley system into thinking that the 57C418 is actually a PLC-2 or a PLC-3 when it is connected to a serial port. The 57C418 has the ability to either be a matser or a slave on the A-B network.

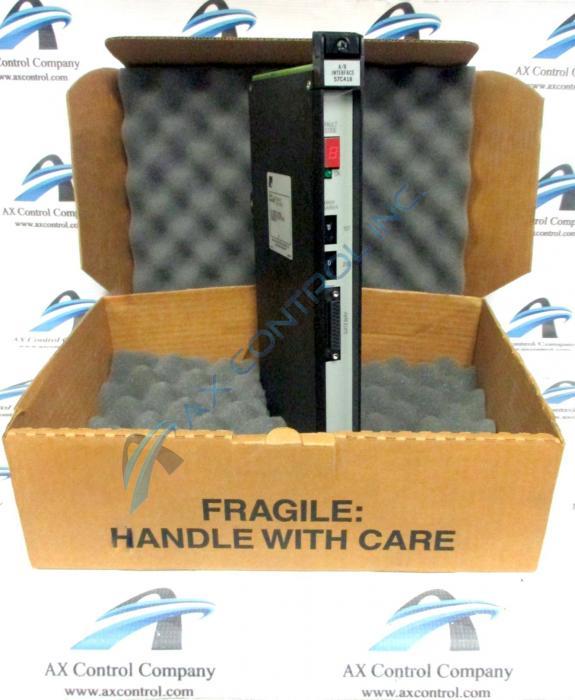

The 57C418 is a slim card assembly that has a circuit board and faceplate contained in a fortified chassis. The faceplate has several components on it including an RS-232 female connection labeled GATEWAY, two DROP NUMBER thumbwheel dials labeled 1st and 2nd, and two LEDs. One of the LEDs is a green OK indicator and the other is a 7-segment Fault Code indicator. This entire system can be plugged into a card storage rack. Just slide the component into an open slot on the rack and plug it into the female card slots on the rack backplane.

Frequently Asked Questions about 57C418

What does 57C418 do at power up?
When 57C418 powers up, the 57C418's on-board processor runs diagnostics on the CPU, EPROM, RAM, serial I/O, memory management unit, dual port memory, and performs system-level diagnostics.
What is the 25-pin D-shell connector on 57C418 used for?
The 25-pin D-shell connector on 57C418 supports the RS232- compatible serial port.
What is the size of 57C418?
57C418 is 11.75 by 1.25 inches. 57C418 is 7.375 inches in depth and 57C418 weighs 2lbs.
What is in the manual for 57C418?
The manual for 57C418 contains a lot of information about 57C418. The manual is the Reliance A-B Interface Module Manual, Manual J2-3016, and the manual gives you related hardware and software, the manual gives a mechanical and electrical description of 57C418, the manual goes through installing and wiring a 57C418, programming 57C418, and diagnostics and troubleshooting for 57C418.

Repair Services For 57C418

Type Lead Time Price Action
Repair Service 1-2 weeks $277

Our highly skilled technicians can repair your 57C418. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

57C418 Manuals, White Papers, Data Sheets, and Troubleshooting
