57C-411 Rockwell Automate Resolver Input Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 57C411 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 57C411
  • SKU: 57C411RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

57C411 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 57C411
Product Type Resolver Input Module
Instruction Manual J-3640

Product Description

The 57C411 was created to be an Input Module by Reliance Electric. This module was possibly also made by Asea Brown Boveri and/or Baldor Reliance. None of these companies still have support for the 57C411. This part may be difficult to locate, but AX Control does try to keep it in stock as a reconditioned or new surplus item. Please check our website for the availability of the 57C411.

The 57C411 is a part of the DCS 5000 system as an Input Module. The major thing this module is meant to accomplish is being able to tell what the angular position is on a resolver rotor. It can determine this position by sensing the position of the rotary shaft and the velocity of the device. On every sample, this module has the ability to interrupt the rotors.

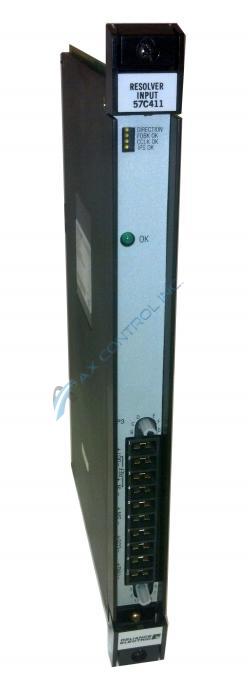

The 57C411 has a small bank of LED indicators that are labeled ISP OK, CCLK OK, FDBK OK, and DIRECTION. There is also a larger LED a little further down the faceplate labeled OK. It is green. There is a P3 dial labeled A, B, C, D, E, F, and G. There is also a bank of connections labeled both numerically and with -TRIG+, -COS+, -SIN+, and -IN+ REF -OUT+.

The 57C411 normally plugs into the backplane of an AutoMax storage rack. There are P1 and P2 slots on the backplane that the back of the module can slide into. You can then make the card more secure by screwing it into two brackets on the rack. There are two brackets on the faceplate that can be used to secure the card and safely remove the card from the rack.

Frequently Asked Questions about 57C411

How do you connect a cable for input signals on a Reliance 57C411?
Input signals come into 57C411 through a multiconductor cable. To connect the cable to 57C411, attach one end to the 57C411 faceplate connector and the other cable attaches to 57C411's terminal board.
What does the "FDBK OK" LED mean on 57C411?
The "FDBK OK" LED on 57C411 indicates that the resolver is connected to the 57C411 module.
What size slot rack does 57C411 fit into?
57C411 can be used in a 6, 10, or 16-slot rack.
Where can I obtain the 57C411 manual?
We have the manual for 57C411. We'll happily send you the manual upon request or you may be able to find the manual on our website. The manual is Manual J-3640 and it is the Resolver Input Module Manual for 57C411.

Repair Services For 57C411

Type Lead Time Price Action
Repair Service 1-2 weeks $242

Our highly skilled technicians can repair your 57C411. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
