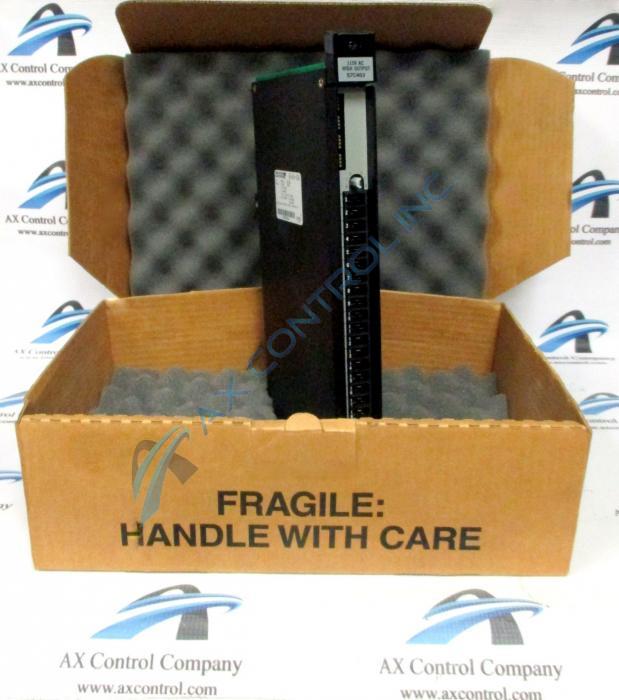

Reliance Electric 57C403 57C-403 Rockwell AutoMax DCS 5000 AC/DC Low Output Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 57C403 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

57C403

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (12)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (12)
  • Click a star to rate this product
Reliance Electric 57C403 57C-403 Rockwell AutoMax DCS 5000 AC/DC Low Output Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 57C403 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

57C403 Technical Specifications

Instruction Manual J-3623
Manufacturer Reliance Electric
Part Number 57C403
Product Type High Power Output Module
Series AutoMax PLC

Product Description

The 57C403 is a Digital I/O Card Module made by Reliance Electric. This module may have possibly been sold under the Asea Brown Boveri or Baldor Reliance names based on when it was actually produced. This device is no longer receiving support from any of the manufacturers. AX Control does make an effort to keep the 57C403 in stock as a repaired or new surplus item.

The 57C403 was a part of the AutoMax Multibus I/O systems as a 115VAC High Output Module. This module has a 16-point digital I/O. It has an isolation of 2500 volts and clusters of four isolated leads. It also has keyed wire connections that will prevent it from being plugged into a different module.

The 57C403 has four banks of LED lights that have four LEDs in each bank for a total of 16 lights. These LEDs are numerically categorized from 0-15 and represent an output circuit that is being monitored. The LEDs will glow when it detects the circuit is receiving power. This module has the ability to be plugged into an AutoMax storage rack. It can slide in through the open side of the rack and be connected to the P1 and P2 bus card slots that are located on the rack’s backplane. This module can then be secured into place using two screws to attach it to the mounting brackets on the rack. The module has two brackets located on the top and bottom edge of the faceplate that you can use to remove the module from the rack.

Frequently Asked Questions about 57C403

How much output power does 57C403 have?
57C403 has 115 VAC high output power.
What type of digital output does 57C403 have?
57C403 has 32-point high-density digital I/O.
What is the isolation on 57C403?
57C403 has 5000 V isolation.
What type of connectors does 57C403 have?
57C403 has keyed connectors.
Where can I find the manual for 57C403?
We can send you the link to the manual for 57C403. The manual for 57C403 is Manual J-3623, the 115 VAC High Power Output Module Manual by Reliance dedicated to 57C403.

Repair Services For 57C403

Type Lead Time Price Action
Repair Service 1-2 weeks $256

Our highly skilled technicians can repair your 57C403. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
