57C402

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.58 (12)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.58 (12)
  • Click a star to rate this product
The 57C402 is a 24 V to 115 VAC/VDC Output Module created for an AutoMax Multibus system.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 57C402 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

57C402

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.58 (12)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.58 (12)
  • Click a star to rate this product
The 57C402 is a 24 V to 115 VAC/VDC Output Module created for an AutoMax Multibus system.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 57C402 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

57C402 Technical Specifications

Manufacturer Reliance Electric
Part Number 57C402
Product Type Digital Output Card Module
Series AutoMax PLC

Product Description

The 57C402 is an Output Module created by Reliance Electric. There is a good possibility that this module was also produced and sold under the Asea Brown Boveri or Baldor Reliance catalog of products. None of these manufacturers are still supporting this module. Even though it is now hard to find, AX Control does try to keep the 57C402 in stock as a reconditioned or new surplus item. Please refer to our website for the availability of the 57C402.

The 57C402 is a 24 V to 115 VAC/VDC Output Module created for an AutoMax Multibus system. This output module has the capability to give off signals and instructions to different types of devices that have basic on/off functions. These devices can include solenoids, pushbuttons, selector or limit switches, and motor starters. This device has a 5000-volt isolation and groups of four isolated commons. It is a 32-point high-density digital I/O. This system has four interrupt channels.

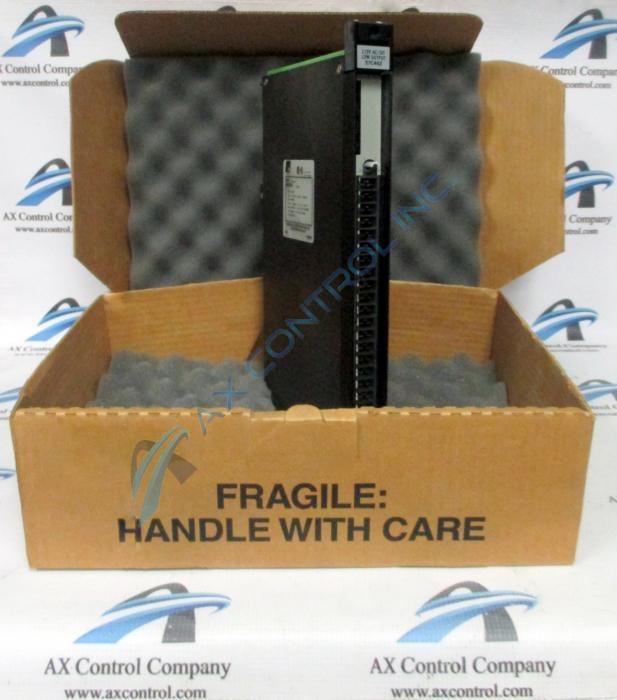

The 57C402 is a basic circuit board that is housed in a protective chassis. It can be plugged into an AutoMax card rack assembly by sliding it directly into the card slots on the backplane of the rack. You can then secure this card using the mounting brackets on the rack and the on the module itself. You need two screws to mount it into place. You can also use the brackets on the module to safely and easily remove the 57C402 from the rack assembly. On the faceplate are four sets of four LED indicators that will monitor the input connections on the module.

Frequently Asked Questions about 57C402

What type of output module is 57C402?
57C402 is a 24 V to 115 VAC/DC Output Module.
How many points does 57C402 have?
57C402 has a 16-point high-density digital I/O and each of the 16 points on 57C402 has an LED indicator and the points on 57C402 are grouped into isolated commons of four.
What does 57C402 produce output signals to?
57C402 produces ON/OFF output signals to motor starters, indicators, solenoirds, and more.
What does 57C402 consist of?
57C402 consists of a printed circuit board, faceplate, and protective enclosure.

Repair Services For 57C402

Type Lead Time Price Action
Repair Service 1-2 weeks $312

Our highly skilled technicians can repair your 57C402. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
