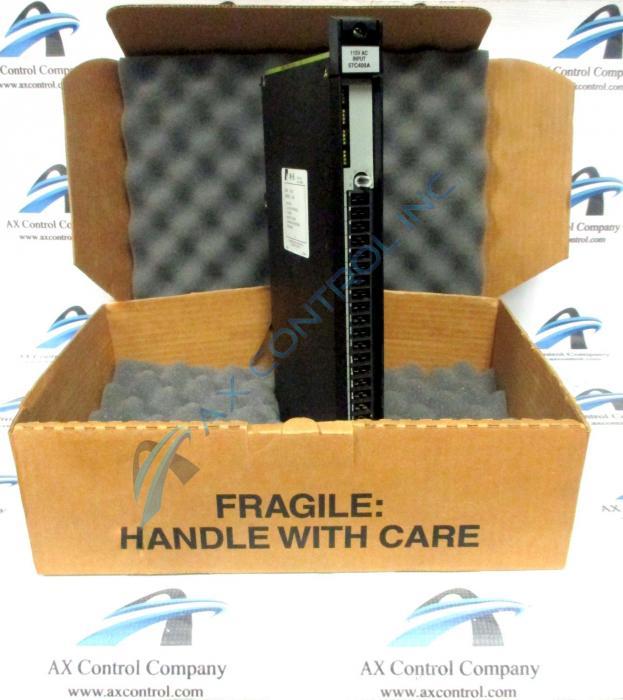

57C-400 Automate DCS 5000 16 Point I/P Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 57C400 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

57C400

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
57C-400 Automate DCS 5000 16 Point I/P Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 57C400 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

57C400 Technical Specifications

Instruction Manual J-3625
Manufacturer Reliance Electric
Part Number 57C400
Product Type A-C/D-C Input Module
Series AutoMax PLC

Product Description

The 57C400 is an Input Module created by Reliance Electric. There is a strong probability that it may have also been sold by Asea Brown Boveri and Baldor Reliance depending on what years it was in development. This module is not being supported by these original manufacturers anymore and may be hard to locate. AX Control does try to keep this item in stock though. Please consult our website for information about its availability.

The 57C400 is a 115V AC/DC, 50/60 HZ Input Module created for the DCS 5000 and AutoMax systems. This module’s basic purpose is to provide basic on/off devices with the commands needed to start and stop their processes. The devices that can be affected in such a way include pushbuttons, selector and limit switches, and relays.

On the 57C400’s faceplate, there are places where you can connect inputs. There are 16 LED indicator lights that are assigned to show the condition of these inputs. The LEDs will glow when it sees that there is a current flowing to the inputs.

The 57C400 is a printed circuit board with a faceplate that is protected by a secure chassis. This module is typically stored on a storage rack. On the backplane of the storage rack, there are female card slots that you can slide this device into. Once you have it in place, you can then use the mounting brackets on the module and the rack to secure it into place. You can also use the mounting brackets on the module to carefully remove the module from the storage rack.

Frequently Asked Questions about 57C400

How many input circuits does 57C400 have?
57C400 has 16 input circuits for 115 volt A-C or D-C logic signals. The input circuits on 57C400 are grouped into fours and each group shares a common. 57C400 also has 16 LEDs to show the status of each input.
What is a restriction of 57C400?
57C400 is a read only module. If you try to write 57C400, there will be a severe system error. Do not reference 57C400 from a coil in a ladder logic task or reference 57C400 as an output in a control block function.
How do you know a bus error has occurred on a Reliance 57C400?
When a "31" or "51"-"58" appears on the 57C400's LED, it indicates a bus error on 57C400.
Where do I find the 57C400 manual?
The manual for 57C400 is the 115 A-C/D-C Input Module Manual. We supply the manual for you. Request the manual for 57C400 or find the manual on our website.
  • 57C400-1
  • 57C400-1A
  • 57C400-1B
  • 57C400-1C
  • 57C400-1E
  • 57C400-1F
  • 57C400-1J
  • 57C400-1K
  • 57C400-1R
  • 57C400-2
  • 57C400-2A
  • 57C400-3
  • 57C400-4J
  • 57C400A
  • 57C400B
  • 57C400C
  • 57C400D
  • 57C400E
  • 57C400F
  • 57C400G
  • 57C400H
  • 57C400I
  • 57C400J
  • 57C400K
  • 57C400L
  • 57C400M
  • 57C400N
  • 57C400O
  • 57C400P
  • 57C400Q
  • 57C400R
  • 57C400S
  • 57C400T
  • 57C400U
  • 57C400V
  • 57C400W
  • 57C400X
  • 57C400Y
  • 57C400Z
