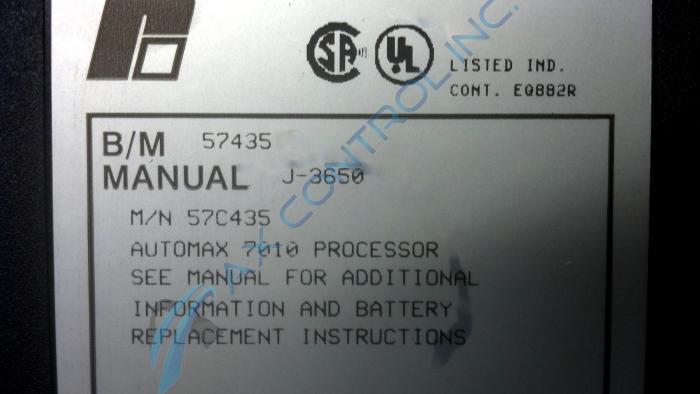

7010 Processor PLC Module 57C435. Call Now! | Image
3 year warranty

7010 Processor PLC Module 57C435. Call Now! | Image
7010 Processor PLC Module 57C435. Call Now! - Wiring Diagram Image


    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (5)
  • Click a star to rate this product
7010 Processor PLC Module 57C435.



Sell Surplus: Have a 57435 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 57435
  • SKU: 57435RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

57435 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 57435
Product Type Processor Module
Instruction Manual J-3650

Product Description

The 57435 is a Processor Module created by Reliance Electric. This processor could have been also sold by Asea Brown Boveri or Baldor Reliance depending on its manufacturing dates. This processor is no longer being supported by the manufacturers, but AX Control does still try to keep it in stock. When it is in stock, we sell it as either a surplus or a reconditioned item.

The 57435 is an AutoMax 7010 Processor Module. It is a Multibus Processor. This Processor is 3-6 times faster than the 6011 Processor Module. It has 16 and 32-bit Motorola microprocessors. This card allows you the ability to mix and match different processors on an AutoMax storage rack. A total of four processors can be run on the same rack. However, if you choose to run that many processors, you will need to also install a Common Memory Module.  The Run base OS was downloadable to make future upgrades possible.

The 57435 is a printed circuit card that is encased in a protective enclosure. It has a total of two female RS-232C connectors. These are labeled PORT A and PROGRAMMER/PORT B. There are also Fault Code 7-segment LED indicators with two normal LEDs labeled BAT OK and OK. There is a lithium battery on the side of the card that is not covered by the enclosure. This battery is connected to the RAM application and operating system memory. This entire module can slide into a storage rack and connect to two female card slots. This system then attaches to the rack via screwing into the brackets on the rack.

Frequently Asked Questions about 57435

How do I obtain the instruction manual for 57435?
AX Control has the manual for the Reliance AutoMax PLC 57435 part on our site's website. You can also send us a request for the 57435 manual. The manual that corresponds to 57435 is the AutoMax Processor Manual. The manual is a Reliance manual and 57435 is one of three model numbers the manual identifies.
What supports modern control on a Reliance 57435?
The 57435 processor serial ports support full modern control in electric on a Reliance 57435. There are RS-232C signals on 57435 that have 450 vault isolation to logic common. For a circuit diagram of how this electrical process works on 57435, view figure 2.2 in the manual.
Where do I find information about programming a Reliance 57435?
To find information on programming a Reliance 57435, see the AutoMax language instruction manual and the AutoMax Executive instruction manual. There is some information on programming a 57435 in section 4.0 of Instruction Manual J-3650, but the manuals listed above go further into programming 57435.
  • 57435-1
  • 57435-1A
  • 57435-1B
  • 57435-1C
  • 57435-1E
  • 57435-1F
  • 57435-1J
  • 57435-1K
  • 57435-1R
  • 57435-2
  • 57435-2A
  • 57435-3
  • 57435-4J
  • 57435A
  • 57435B
  • 57435C
  • 57435D
  • 57435E
  • 57435F
  • 57435G
  • 57435H
  • 57435I
  • 57435J
  • 57435K
  • 57435L
  • 57435M
  • 57435N
  • 57435O
  • 57435P
  • 57435Q
  • 57435R
  • 57435S
  • 57435T
  • 57435U
  • 57435V
  • 57435W
  • 57435X
  • 57435Y
  • 57435Z

Repair Services For 57435

Type Lead Time Price Action
Repair Service 1-2 weeks $336

Our highly skilled technicians can repair your 57435. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
