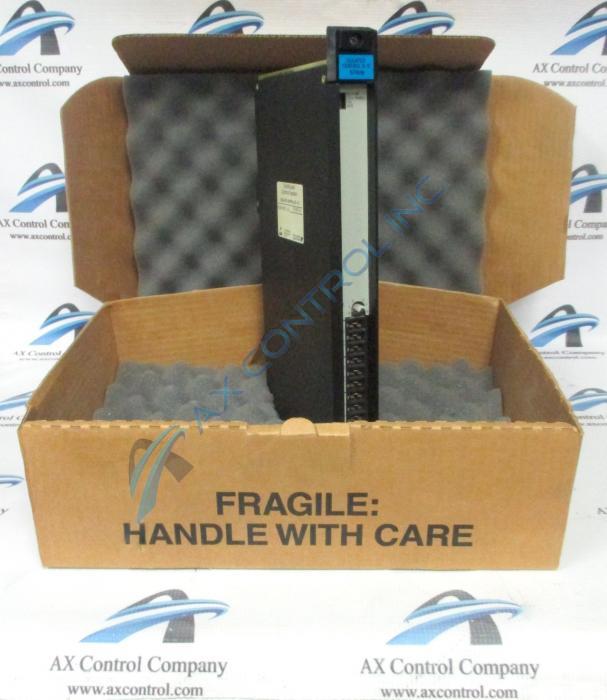

Reliance Electric AutoMax 57409 2 Channel Analog Input Module 57409

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 57409 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 57409
  • SKU: 57409RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

57409 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 57409
Product Type 2 Channel Analog Input Module
Instruction Manual J-3637

Product Description

The 57409 was a Reliance Electric made Input Module. It was possibly also mass-produced by Baldor Reliance or Asea Brown Boveri depending on what years it was in production. None of these original manufacturers still support the 57409. However, AX Control does try to keep it in stock as a new surplus or refurbished item. Please check our website to see if it is available for purchase.

The 57409 was a Multibus I/O System for the AutoMax. This module was an analog Input mode that allowed for two input channels to be used. It has an input range of +1, 5, 10, and 20 volts. It had a 4 to 20 mA current input range. It had a 12-bit resolution plus polarity and a program interruption ability. The 57409 had the ability to use its software to select sampling rates and input filters.

The 57409 had a high-performance closed-loop control using a variable reference and feedback signals.  The 57409 came with three main components, a printed circuit assembly, a faceplate, and a protective enclosure. This faceplate had a female connector socket that was used to feed external analog signals using a multi-conductor cable that is attached to a terminal strip.  The conductor cable had a mating cable plug and faceplate socket that could not be plugged into anything else.

The 57409 had the ability to be plugged into an AutoMax Card Storage Rack. This card could slide into the female card slots on the backplane of the rack. Then you would attach the brackets on the faceplate to the brackets on the rack using two screws. This allowed for a very secure mounting.

Frequently Asked Questions about 57409

Is the manual for 57409 easy to find?
Yes, you can look up the manual for 57409 by searching for the J-3637 Manual or we can easily send you the manual that goes along with 57409. The manual is specifically for 57409 because it is Reliance's 2 Channel Analog Input Module Manual.
Do the channels on 57409 have the same software?
No, the channels on 57409 don't always have the same software. 57409 has two analog input channels with software-selectable filters.
What happens when 57409 is in the overrange condition?
When 57409 is in overrange condition, the magnitude on 57409 is doubled but the accuracy on 57409 is cut in half.
