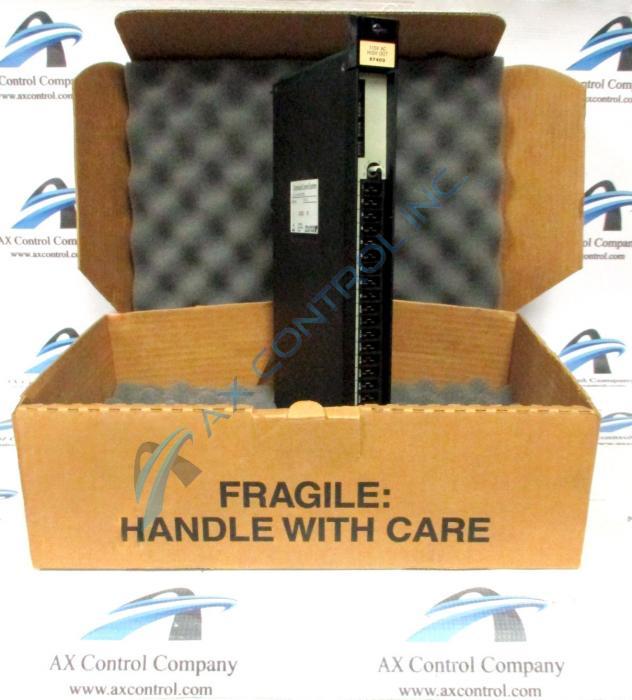

Reliance Electric AutoMax 57403 Module 115VAC Output 16 Point 57 403

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 57403 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

57403

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (6)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (6)
  • Click a star to rate this product
Reliance Electric AutoMax 57403 Module 115VAC Output 16 Point 57 403

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 57403 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

57403 Technical Specifications

Instruction Manual J-3623
Manufacturer Reliance Electric
Part Number 57403
Product Type High Power Output Module
Series AutoMax PLC

Product Description

The 57403 model is a high power output module that was made to be used along with the AutoMax system, both of which were introduced to the market by Reliance Electric. This product is no longer being made by Reliance Electric; however, AX Control may still have it in stock. The availability of the 57403 high power output module is displayed on our website, but you can always call if you have any additional questions about how to order this product.

The 57403 high power output module has a total power of 115 VAC. This device is designed to drive up to sixteen 115 Volt control signals from the AutoMax system. This is done by making these control signals behave as if they are outputs. In this situation, the output signal frequency can be either 50 or 60 Hertz. In addition to that, the individual outputs have the rating of a maximum of 2 Amps. The output signals have 2500 Volt isolation to the logic common and the outputs have a high inrush capacity for handling capacitive loads. The 57403 high power output module has four isolated commons. Each of these four commons have four outputs.

In most cases, the 57403 high power output module will be used as a means to output on/off signals to certain devices. Mainly, these devices will be either motor starters or solenoids. This is because these devices require a maximum of 2 Amps current and have a large inrush current requirement, which the 57403 high power output module is perfect at servicing.



Frequently Asked Questions about 57403

How do I find the manual for 57403?
We can send you the link to the 57403 manual. The manual for 57403 is the Reliance 115 VAC High Power Output Module Manual, Manual J-3623. While 57403 is now obsolete, it is hard to find the manual for 57403 but we can provide you with the manual.
What is the repair time on 57403?
The standard repair time for an AutoMax 57403 is 2-4 weeks. For +10% or $50, we can do a 5-7 rush repair on 57403, and for +25% or $100, we'll do a 48 hour emergency rush repair on 57403.
How many outputs does 57403 have?
57403 has 16 outputs with an LED status indicator for each output on the 57403 faceplate.
  • 57403A
  • 57403B
  • 57403C
  • 57403D
  • 57403E
  • 57403F
  • 57403G
  • 57403H
  • 57403I
  • 57403J

Repair Services For 57403

Type Lead Time Price Action
Repair Service 1-2 weeks $250

Our highly skilled technicians can repair your 57403. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

57403 Manuals, White Papers, Data Sheets, and Troubleshooting
