Reliance Automax DCC Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 57401 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 57401
  • SKU: 57401RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

57401 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 57401
Product Type Digital I/O Drive
Instruction Manual J-2716

Product Description

Reliance Electric designed the 57401 unit to be a digital I/O drive for the AutoMax programmable logic controllers. This device is no longer under production by Reliance Electric. However, AX Control continues to supply the 57401 digital I/O drive and may have it in stock currently. This device’s availability is displayed on this page, but you are welcome to call or email us if you have any additional questions about the 57401 digital I/O drive’s availability or our shipping procedures.

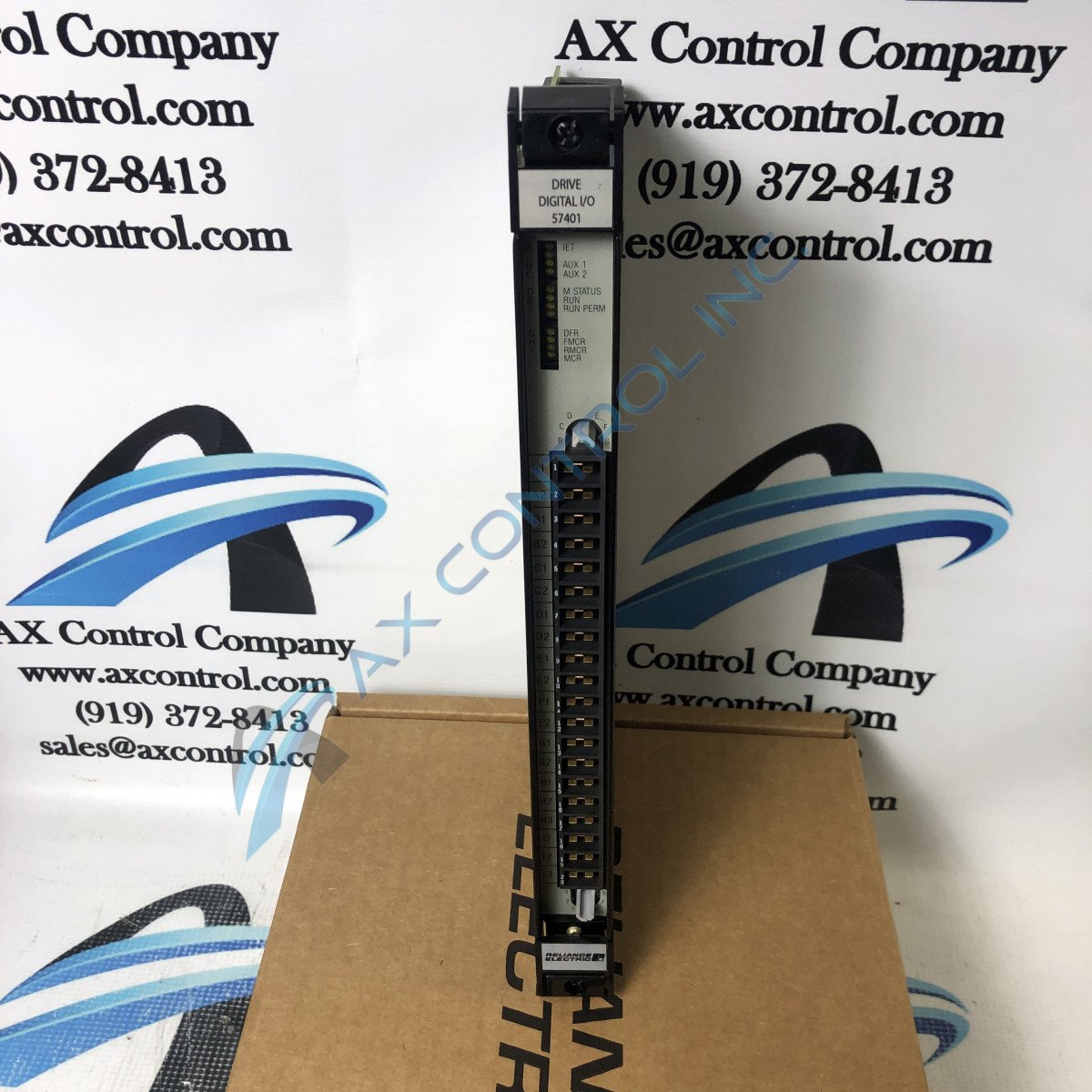

On the front of the 57401 digital I/O drive, you will find its faceplate, which has many different components that are available for use. At the very top of the 57401 digital I/O drive, there is a total of twelve small indicator lights. These lights will illuminate whenever the labeled status is tripped so that the operator is alerted. These lights range from fault codes to regular status checks. Below these lights, you will find many rectangular I/O ports lined up vertically down the length of the drive’s faceplate. Specifically, there are twenty of these I/O ports. Located at the top and bottom of this line of I/O ports, you will find a small key slot. Both of these key slots have a total of six positions on them. The key slot on the top has the positions “B” through “D” on its left side and “E” through “G” on its right side. The key slot on the bottom has the positions “1” through “3” on its left side and “6” through “8” on its right side.

The 57401 digital I/O drive has a weight of about 2.00 lbs. or 0.91 kg.

Frequently Asked Questions about 57401

What is the voltage on 57401?
57401 has a voltage of 115V.
How many channels does 57401 have?
57401 has 20 total I/O channels. The channels on 57401 are labeled: A1, A2, B1, B2, C1, C2, D1, D2, E1, E2, F1, F2, G1, G2, H1, H2, H3, I1, I2, I3.
What status indicators does 57401 have?
57401 has 10 total status indicators. 57401 has an "IET" status indicator, 57401 has "AUX 1 and 2" indicators, 57401 has "M STATUS," "RUN," and "RUN PERM" indicators, and 57401 has "DFR," "FMCR," "RMCR," and "MCR" indicators at the uppermost part of the 57401 faceplate.
  • 57401-1A
  • 57401-1B
  • 57401-2
  • 57401-2A
  • 57401-3
  • 57401-4J
  • 57401A
  • 57401B
  • 57401C
  • 57401D
