45C66

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (10)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (10)
  • Click a star to rate this product
The 45C66 is a Digital N.O. Contact Relay that was originally created to be a part of an AutoMax DCS.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 45C66 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 45C66
  • SKU: 45C66RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

45C66 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 45C66
Product Type Rail Digital Output Module

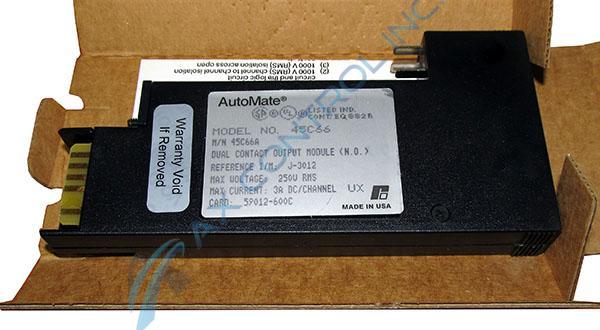

About the 45C66

The 45C66 is a Dual Contact Output Module made by Reliance Electric. This module may have also been produced by Baldor Reliance and Asea Brown Boveri. It is no longer being supported by any of these companies, but AX Control typically has it in stock. Please check our website for the availability of the 45C66.

The 45C66 is a Digital N.O. (normally open) Contact Relay that was originally created to be a part of an AutoMax DCS. This device is used with relay outputs that are high-current and individually isolated. This device uses both AC and DC voltage. It uses 250VAC and 30/110 VDC. It has a normal operating voltage that is rated 1-20 V RMS and 1-30 VDC. It has a total of 2 outputs. This module has two channels and those channels have two LED diagnostic lights that will glow to indicate the module is functioning properly. This module also comes with logic and blown fuse LED indicators. You can access the fuse on the faceplate of the module to easily change it. The module suggests a 4A 250V AGC replacement fuse.

The 45C66 is typically mounted to a digital I/O rail storage device like the 45C1. A total of 8 I/O modules can be connected to the rail including the 45C66. All of the filled wiring is on this rail and not on the module itself so that the module can easily be removed or put into place. This module is easily slid into the backplane of the rail and into female card slots.

Frequently Asked Questions about 45C66

What application is 45C66 used for?
45C66 applies individually isolated high-current relay outputs.
What type of rail digital output module is 45C66?
45C66 is a rail digital output module with typically open relay contacts.
What is 45C66's operating voltage?
45C66 has an operating voltage of 1-250V RMS.
How many outputs does 45C66 have?
45C66 has two total outputs.

Repair Services For 45C66

Type Lead Time Price Action
Repair Service 1-2 weeks $369

Our highly skilled technicians can repair your 45C66. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

45C66 Manuals, White Papers, Data Sheets, and Troubleshooting
