45C60 Technical Specifications

Instruction Manual J-3012
Manufacturer Reliance Electric
Part Number 45C60
Product Type Dual A-C Output Module
Series AutoMax PLC

Product Description

The 45C60 model was developed and manufactured by Reliance Electric to be an AutoMate dual output module. This product is no longer being made by Reliance Electric, but AX Control typically has it in stock despite that. If you are interested, please check our website or contact us for confirmation of its availability.

The 45C60 dual output module, in most cases, will be used for general purpose isolated output applications. The voltage category for the 45C60 dual output module is 120 VAC with an operating voltage of 80 to 132 V RMS. This module has a total of two outputs, which are Triac type outputs. The maximum continuous current per output for this device is 2 Amps and the maximum surge current per output is 20 Amps for 0.1 seconds and 10 Amps for 0.5 seconds. The maximum off-state current is 5.9 mA and the maximum holding current is set to a total of 70 mA.

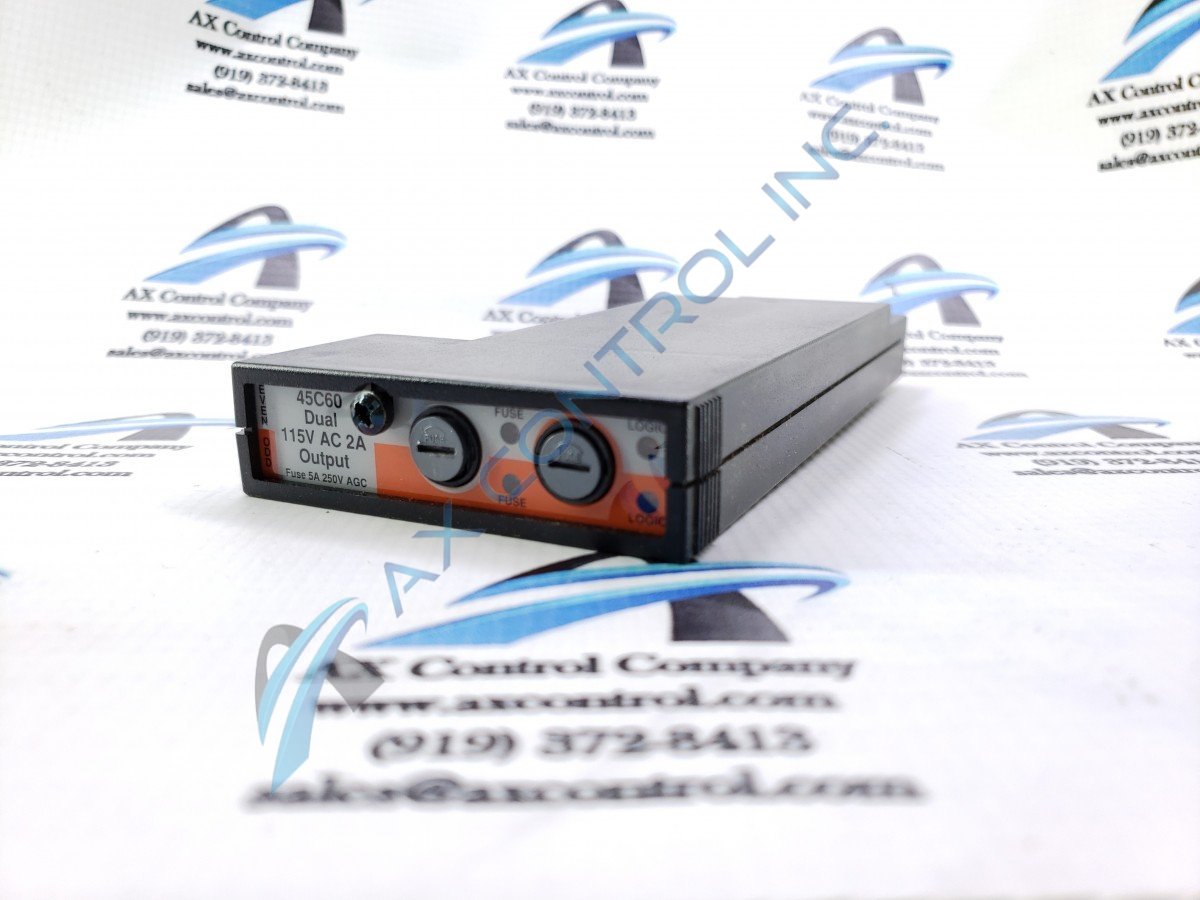

The 45C60 dual output module is split into two sections, as indicated on the device’s faceplate. These two seconds are the “EVEN” section at the top half of the faceplate and the “ODD” section at the bottom half of the faceplate. Each of these faceplates have two indicator lights (for a total of four on the whole faceplate). These indicator lights are labeled as “FUSE” and “LOGIC.” There are two large fuses that are separated by the column of two “FUSE” indicator lights.

The 45C60 dual output module has an approximate weight of about 0.30 lbs. or 0.14 kg.



Frequently Asked Questions about 45C60

How much power does 45C60 operate on?
45C60 operates at 115 VAC and the two outputs 45C60 has are rated at 2 continuous amps.
How many channels does 45C60 have?
45C60 has six total channels. 45C60 has a fuse even channel, a blown fuse indicator even channel, a blown fuse indicator odd channel, a fuse odd channel, and a logic indicator even and odd channels. You can view a diagram of 45C60 in the AutoMate DCS 5000/AutoMax Digital I/O Rails and Modules Manual, manual J-3012, where you can easily find where each channel on 45C60 is located.
What is the size of a Reliance AutoMax 45C60?
45C60 is 2.1cm in height. 45C60 is 7.6cm wide. 45C60 is 15.5cm in depth. 45C60 also weighs 5 ounces.
Where can I find more technical specifications for 45C60?
You can see more tech specs for 45C60 in the manual, manual J-3012. 45C60 is identified in chapter three of the manual, and table 3.5 in the manual is a table of more tech specs for 45C60. The table in the manual includes 45C60's location, conditions, dimensions, and output current.
