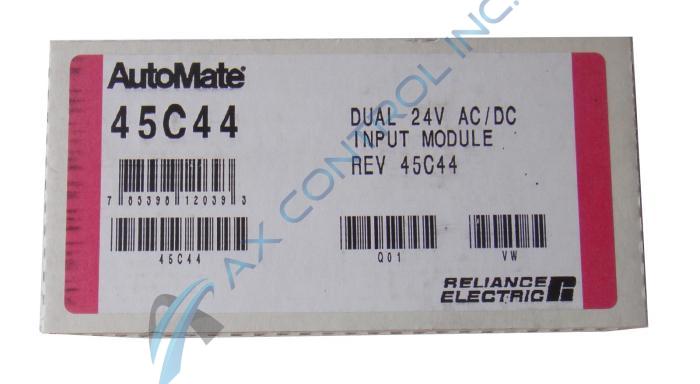

Obsolete Rockwell Automate DCS 5000 24VAC/DC Dual Input Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 45C44 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

45C44

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (9)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (9)
  • Click a star to rate this product
Obsolete Rockwell Automate DCS 5000 24VAC/DC Dual Input Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 45C44 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

45C44 Technical Specifications

Instruction Manual J-3012
Manufacturer Reliance Electric
Part Number 45C44
Product Type Dual A-C/D-C Input Module
Series AutoMax PLC

Product Description

The 45C44 unit is a dual AC/DC input module that was designed and produced by Reliance Electric to be used in conjunction with the AutoMax line of products. Even though the 45C44 dual input module’s production has been stopped, it still can typically be found within our stock here at AX Control. If you are interested in purchasing the 45C44 dual input module, then be sure to give us a call or send us an email to check on its availability in our stock.

In most cases, the 45C44 dual input module will be used as within devices that require on/off interface circuitry, such as within limit switches, selector switches, push buttons, and the logic levels that programmable controllers require. In addition to that, the 45C44 dual input module has circuitry that allows for two individually isolated input channels to be included. Both of these channels are designed to accept either an AC signal or a DC input signal that is set over a specified voltage. Whenever the input signal reaches a predetermined threshold, then the logic will be turned on. The electrical isolation of the input signal that derives from the logic signal is enabled thanks to the inclusion of photo couplers within the 45C44 dual input module.

For each of the 45C44 dual input module’s input channels, you will find two LED status indicators. There is a green indicator light that is labeled as the “POWER” indicator. This indicator light lights up whenever the particular input it represents it turned on. There is also the yellow LED status indicator, which is labeled as the “LOGIC” indicator. This indicator illuminates whenever the logic signal to the control system is turned on.

Frequently Asked Questions about 45C44

How much power does 45C44 have?
45C44 operates on 24 VAC/DC power.
What are some features 45C44 has?
45C44 has two individually isolated input channels, 45C44 has two LED indicators for each input channel, 45C44 has a minimum current resistor at each input, 45C44 has filtering, and 45C44 has a stick-on label to identify the type of model 45C44 is.
How much A-C signal will 45C44 accept?
The input channels on 45C44 will accept A-C signal between 48 and 63Hz.
Can AX Control give me the manual for 45C44?
Yes. We have the manual for 45C44 and are happy to share the manual with you. The manual is the AutoMate DCS 5000/ AutoMax Digital I/O Rails and Modules Manual - Manual J-3012.
  • 45C44A
  • 45C44B
  • 45C44C
  • 45C44D

Repair Services For 45C44

Type Lead Time Price Action
Repair Service 1-2 weeks $334

Our highly skilled technicians can repair your 45C44. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
