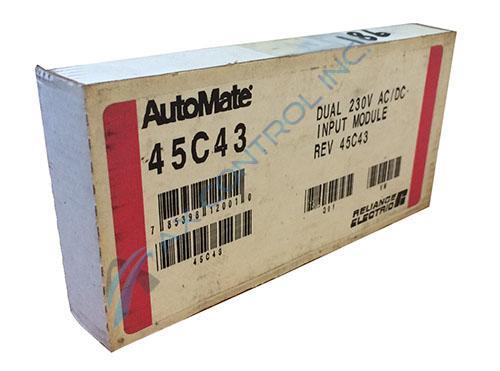

Rockwell Automate DCS 5000 Dual 230VAC/DC Input Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 45C43 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 45C43
  • SKU: 45C43RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

45C43 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 45C43
Product Type Dual A-C/D-C Input Module
Instruction Manual J-3012

About the 45C43

Reliance Electric was responsible for the creation and distribution of the 45C43 model, which is a dual AC/DC input module. The 45C43 dual input module is no longer made by the original manufacturer, but AX Control still makes an attempt to stock this product. So, be sure to contact us to find out the availability of the 45C43 dual input module.

The 45C43 unit is a dual input module, which means that it has a total of two channels. Between the logic circuit and the input circuit on the 45C43 dual input module, the optical isolation is 2500 VRMS. In addition to that, the electrical isolation is determined by the location of the inputs, which are separate from one another.

For the 45C43 dual input module’s voltage ratings, you must examine the device at different states. When the device is turned ON, the DC threshold is 203 Volts and the AC threshold is 150 Volts. When the device is turned OFF, the DC threshold is 165 Volts and the AC threshold is 120 Volts. The nominal AC/DC voltage is 230 Volts and the impedance is 54 kiloOhms. Lastly, the dissipation per input is 1.5 Watts.

When you are ready to install the 45C43 dual input module, then all you must do is mount this device to an I/O Rail. Be sure that the installation area is the correct environment for the 45C43 dual input module, particularly when it comes to the temperature and the humidity of the environment. When operating, the 45C43 dual input module must exist in a temperature range of 0 degrees to 60 degrees Fahrenheit, but when stored the temperature range must be between -20 degrees and 85 degrees Fahrenheit.

Frequently Asked Questions about 45C43

What does 45C43 provide?
45C43 provides the needed interface circuitry between the on/off devices and the logic levels required by the programable controller. The on/off devices 45C43 provides to are things like pushbuttons, selector switches, and limit switches.
How many input channels does 45C43 provide?
45C43 has two individually isolated input channels. Both channels on 45C43 will accept an A-C signal or D-C signal of the specified voltage.
Does 45C43 have a filter?
Yes. 45C43 is filtered for less noise which may affect module operation.
Is the manual for 45C43 easy to find?
Yes, we can provide you with the manual for 45C43. The manual is the AutoMate DCS 5000/AutoMax Digital I/O Rails and Modules Manual - Manual J-3012. The manual identifies 45C43 in section 3.2 of the manual.
  • 45C43A
  • 45C43B
  • 45C43C
  • 45C43D
