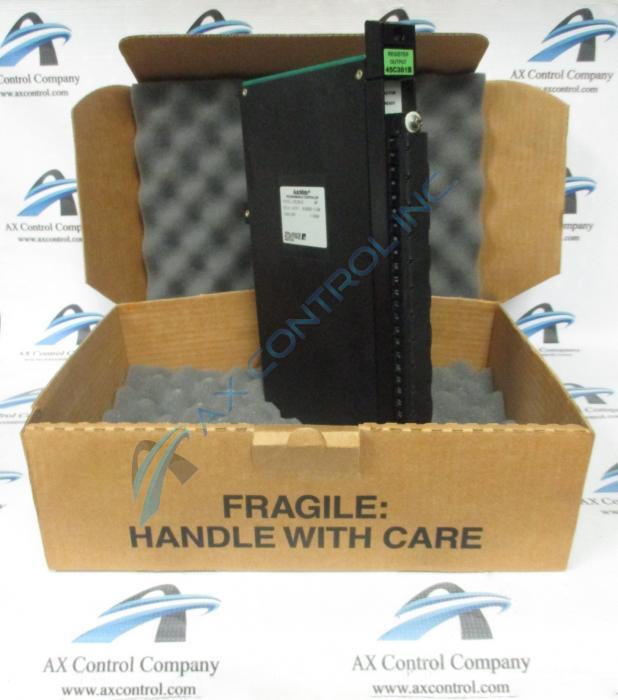

Reliance Automate 45C-381 DCS 5000 Register 30 Output Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 45C381 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 45C381
  • SKU: 45C381RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

45C381 Technical Specifications

Manufacturer Reliance Electric
Series AutoMate PLC
Part Number 45C381
Product Type Register Output Card

About the 45C381

The 45C381 module is a register output card that was designed and produced by Reliance Electric. Although the 45C381 register output card is not in production anymore, it may still be available from AX Control’s stock. This device’s availability is shown on this product page, but you can always give us a call or send us an email if you have any questions about its availability. In most cases, we can ship the products that are in stock on the same day that you order them, provided that you order them prior to 4:00 p.m.

In general, the 45C381 register output card will be used to interface with your chosen AutoMate system and the output devices that you choose to connect to it. This includes LED outputs and other parallel binary or BCD logic signals. Also, this card may be used whenever there are large numbers of low level digital I/O signals that need to be implemented.

The 45C381 register output card has numerous features that make it an important addition to your AutoMate programmable logic controller. The 45C381 register output card has an on board power supply and the capability to handle 16 bits of data. In addition to that, you can switch between either a single channel direct or six channel multiplex (meaning six strobe signals) system. There are also 24 terminals featured on a removable connector and TTL to 24 VDC logic levels available. All of these features are encased in a protective housing that shields them from any possible damaging materials and keeps the internal temperature regulated.

Frequently Asked Questions about 45C381

What is 45C381 used for?
45C381 is used for ouput. 45C381 and the register input card 45C380 are available for interfacing to LED outputs, thumbwheel switch inputs, or other parallel binary/BCD logic signals.
How many terminals does 45C381 have?
45C381 has a 24-terminal removable connector.
How many channels is a Reliance 45C381?
45C381 can be a single channel direct or 45C381 can be six-channel multiplexed with 45C381 having 6 strobe signals.
  • 45C381A
  • 45C381B
  • 45C381C
  • 45C381D

Repair Services For 45C381

Type Lead Time Price Action
Repair Service 1-2 weeks $340

Our highly skilled technicians can repair your 45C381. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
