The 45C312 is a Card Rack Assembly created by Reliance Electric for AutoMate 30/40.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 45C312 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 45C312
  • SKU: 45C312RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

45C312 Technical Specifications

Manufacturer Reliance Electric
Series AutoMate PLC
Part Number 45C312
Product Type Card Rack

Product Description

The 45C312 is a Card Rack Assembly created by Reliance Electric. This rack was possibly also sold under the Baldor Reliance or ASEA Brown Boveri brands depending on what years it was actually in production.

The 45C312 is a simple metal enclosure that is used for the Automate 30/40 System. This type of component is mandatory in an AutoMate configuration. The size of the card assembly is something that you can customize. The 45C312 has a 10- slot configuration. This rack assembly is a little more flexible with its system configurations than some of the smaller models. If you want to plug in a 2-slot or 3- slot power supply the rack can manage that. You will, however, need to account for that in your card slot allotment.

If you can configure your cards correctly, this rack assembly can serve three main functions. The first function is being able to be a standalone controller. The second function is to be a part of a network that can use the R-NET to send messages to other AutoMate PCs. The final function that this system set up can perform is to become a remote I/O subsystem that can be stored in a remote location.

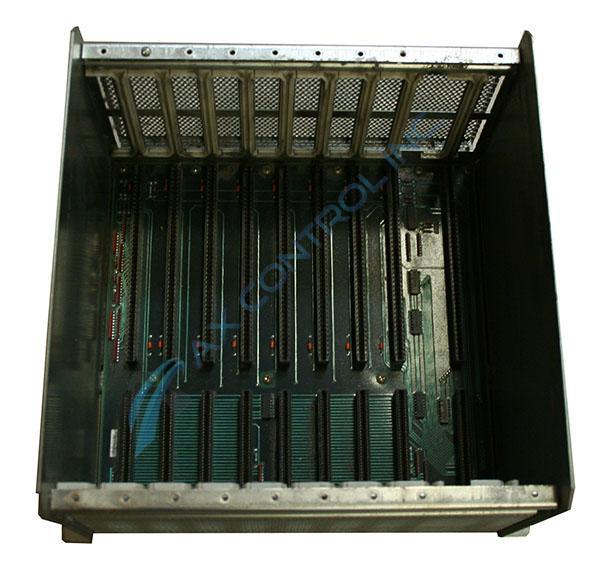

The 45C312 is a decent sized metal enclosure. It does not come with any wiring or a power supply. There are two metal sides, a top and bottom that have air vents that promote airflow within the device set up, and the back which holds the long and short card slots. You can slide the cards or power supplies into the open side and mount them directly to rack using the mounting brackets on the top and bottom edge of the rack. You can secure the devices using screws.

Frequently Asked Questions about 45C312

45C312 is used with what system configuration?
45C312 is the basic unit in any AutoMate 30/40 system configuration.
What cards does 45C312 accept?
45C312 can accept N minus 2 cards and N minus 3 cards if a 2-slot or 3-slot power supply is being used on the 45C312.
  • 45C312A
  • 45C312B
  • 45C312C
  • 45C312D

Repair Services For 45C312

Type Lead Time Price Action
Repair Service 1-2 weeks $349

Our highly skilled technicians can repair your 45C312. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
