45C-22 Rockwell Automate DCS 5000 Local Head 3AG 120VAC I/O Module.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 45C22 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 45C22
  • SKU: 45C22RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

45C22 Technical Specifications

Manufacturer Reliance Electric
Series AutoMate PLC
Part Number 45C22
Product Type Local I/O Head
Instruction Manual J-3671

Product Description

The 45C22 is a Reliance Electric created Local I/O Head. This device may have also been sold by Asea Brown Boveri and Baldor Reliance as a part of their product lines depending on the year it was in production. This part is no longer being supported by the manufacturers though. AX Control does attempt to keep this item in stock as refurbished or new surplus stock. Please refer to our website for the availability of the 45C22.

The 45C22 is an AutoMate Local I/O Head. It facilitates a direct connection to the AutoMate Processors. It uses the Local Head Operating Mode. It requires 120/240 VACs, 50/60 HZ, and +10% and -15%. It is 120VAC and 1AMP.

The 45C22 is a large cube. This device has three sides that have factory-drilled air holes that allow for air circulation to flow through the inner circuitry. There are four screws holding on one of the side panels. You can remove these screws to gain access to the inner workings of the 45C22.

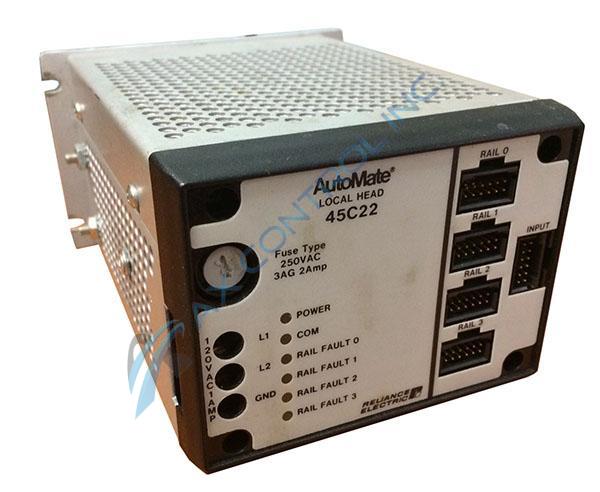

On the front faceplate, the 45C22 has a bank of six LED indicators. These lights are labeled POWER, COM, RAIL FAULT 0, RAIL FAULT 1, RAIL FAULT 3, and RAIL FAULT 3. This device uses a 250 VAC, 3AG, 2 AMP fuse. You can remove the fuse from the faceplate to replace it. This device also has four input connections labeled RAIL 0, RAIL 1, RAIL 2, REAIL 3, and INPUT. There are four holes in the corners of the faceplate that can be used to mount the 45C22.

Frequently Asked Questions about 45C22

What is the line frequency on 45C22?
45C22 has a 47.5 to 63 Hz line frequency.
What is the maximum load for 45C22?
At 120 VAC, 45C22 has a maximum load of 0.5 amps.
How much does 45C22 weigh?
45C22 weighs 2.5lbs or 1.1kg.
Why is manual J-3671 the manual for 45C22?
Manual J-3671 is the manual for 45C22 because it is the AutoMate Local I/O Head Manual. And although the manual says it is for M/N's 61C22 and 61C23, 45C22 is identical to 61C22. Whenever the manual addresses 61C22, the manual is also referring to 45C22.
  • 45C22A
  • 45C22B
  • 45C22C
  • 45C22D

Repair Services For 45C22

Type Lead Time Price Action
Repair Service 1-2 weeks $341

Our highly skilled technicians can repair your 45C22. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

45C22 Manuals, White Papers, Data Sheets, and Troubleshooting
