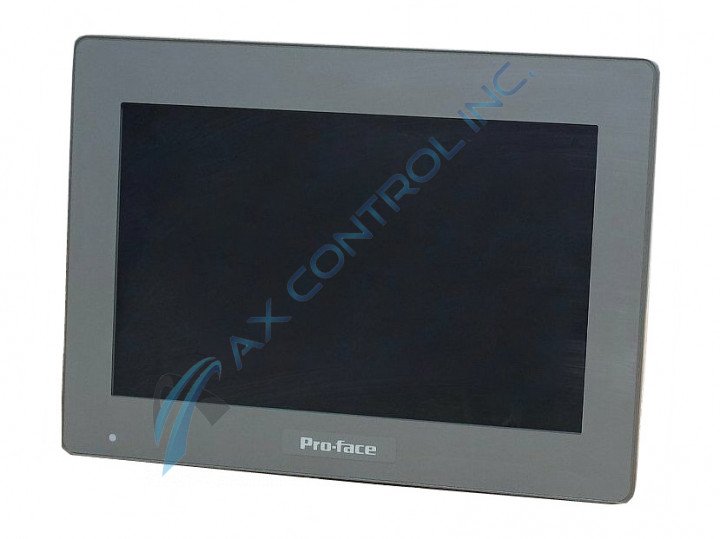

PFXSP5500WAD Proface Schneider Electric Smart Portal Modular Display 10-inch Analog Wide TFT with a 1,280 x 800 pixels (WXGA) resolution.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PFXSP5500WAD to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PFXSP5500WAD

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
PFXSP5500WAD Proface Schneider Electric Smart Portal Modular Display 10-inch Analog Wide TFT with a 1,280 x 800 pixels (WXGA) resolution.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PFXSP5500WAD to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PFXSP5500WAD Technical Specifications

Dimensions W268.5 x H198.5 x D67mm (W10.57 x H7.81 x D2.64 in.)
Display Color 262,144 colors
Display Type TFT Type Color LCD
Enclosure Type IP66F, IP67F, TYPE 4X (Indoor Use Only) / 13
Input Voltage 12...24VDC
Keypad/Display Resistive Film (analog)
Manufacturer Pro-Face by Schneider Electric
Model SP-5500WA
Resolution 1,280 x 800 pixels (WXGA)
Screen Size 10.1” wide

Product Description

Product model PFXSP5500WAD SP-5500WA is an advanced display monitor from Pro-face. It is part of the SP5000 series of Human-Machine Interfaces. This monitor can also be found under model number SP-5500WA. The product weighs approximately 5.5 pounds, sometimes less, and has a display size of 10 inches. It has a maximum power consumption of 8.5 watts, which drops to 2.5 watts or less when the backlight is turned off. Model PFXSP5500WAD SP-5500WA has an inrush current of 30A or less. The rated input voltage is 12 to 24 Vdc, with voltage limits of 10.8 to 28.8 Vdc.

Model SP-5500WA has more than 260,000 display colors, and a white LED backlight. The backlight has a service life of 50,000 hours or more and is non-user-replaceable. There are brightness control levels from 0 to 100, which can be adjusted through the touch panel. The monitor’s touch panel has a resolution of 1,024 x 1,024 and a lifetime of 1,000,000 times or more. Surrounding air temperature should stay between 32 and 140 degrees Fahrenheit, while storage temperate can range from -4 to 140 degrees Fahrenheit.

Please refer to any manuals listed on our site for troubleshooting, or make a support report for our tech team.

  • SP-5500WA
Reviews For PFXSP5500WAD
Internal Review

The PFXSP5500WAD modular HMI allows the user to quickly check alarm messages at the site. This series has faster application transfer and improved graphics than Proface's more outdated models. While some components are not user-replaceable, repairs are typically fast and simple for common items like batteries, touch panels, and locking mechanisms. - AX Tech

Repair Services For PFXSP5500WAD

Type Lead Time Price Action
Repair Service 1-2 weeks $1145

Our highly skilled technicians can repair your PFXSP5500WAD. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
