Digital Electric Pro-face Series PS-4600 PFXPP161EA25P00G00 12-inch Industrial PC Core i3 CPU AC Power supply 2 GB RAM Windows 7 OS WinGP Software Bundle

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PFXPP161EA25P00G00 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PFXPP161EA25P00G00

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
Digital Electric Pro-face Series PS-4600 PFXPP161EA25P00G00 12-inch Industrial PC Core i3 CPU AC Power supply 2 GB RAM Windows 7 OS WinGP Software Bundle

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PFXPP161EA25P00G00 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PFXPP161EA25P00G00 Technical Specifications

CPU CoreTM i3-3217UE
Dimensions W313 x H239 x D123.2 mm [W12.32 x H9.41 x D4.85 in.]
Features Aluminum
Input Voltage AC100V
Manufacturer Pro-Face
Model PS-4600
Resolution 1024 x 768 pixels (XGA)
Screen Size 12 Inch
Slot Type 1 PCI Slot
Software Version Windows 7 Ultimate (32bit)
Weight 4.1 kg [9.03 lb]

Product Description

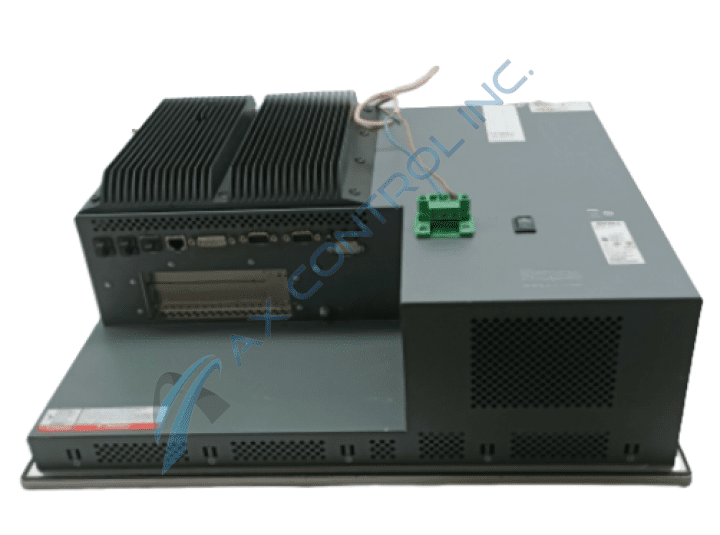

The PFXPP161EA25P00G00 is one of the PS4000 Standard Model Industrial PCs available in AX Control’s on-hand inventory.  This unit offers a 12-inch display along with a single PCI slot.  The unit is built upon a Core i3 CPU and includes a Windows 7 Ultimate MUI 32-bit operating system with 2 GB of accessible RAM.  The unit is built with a 500 GB hard drive onboard, as well as with the WinGP software bundle.

The WinGP software bundle is designed to share screen data from Pro-face HMIs via GP-Pro EX software to a Windows PC.  This bundle will also give users superior connectivity to peripheral devices, with no need to develop additional drivers for communication.   The bundle supports Visual C++, C#, Visual Basic, VB.Net, and VBA.  The dedicated API will allow flexible integration to in-house PC applications.  Meanwhile, the WinGP handling API allows users to obtain information and change settings through user-applications.

This industrial PC supports dozens of languages out of the box. This includes Turkish, Thai, Russian, Portuguese, Korean, Japanese, French,  Dutch, Chinese, and Arabic.

When properly installed according to OEM guidelines, this industrial PC will provide a NEMA 4x degree of protection.   This protection degree is valid when the front USB cover is closed.   The unit is designed for use to 2000 meters, and can be operated within a temperature range of zero to 50 degrees Celsius.

For additional information, refer to original Pro-face documentation like user guides, manuals, and data sheets.  AX Control has some of these documents listed on our website.


Reviews For PFXPP161EA25P00G00
Internal Review

This Pro-face Industrial PC is built with Windows 7 installed and a WinGP software bundle available. However, this unit is considered a highly configurable device where changes to the System BIOs, OS, hardware, and software are possible. Make sure to read through associated Pro-face manuals to understand both the positive and negative aspects of this configurability. --AX Control Tech Team.

Repair Services For PFXPP161EA25P00G00

Type Lead Time Price Action
Repair Service 1-2 weeks $568

Our highly skilled technicians can repair your PFXPP161EA25P00G00. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
