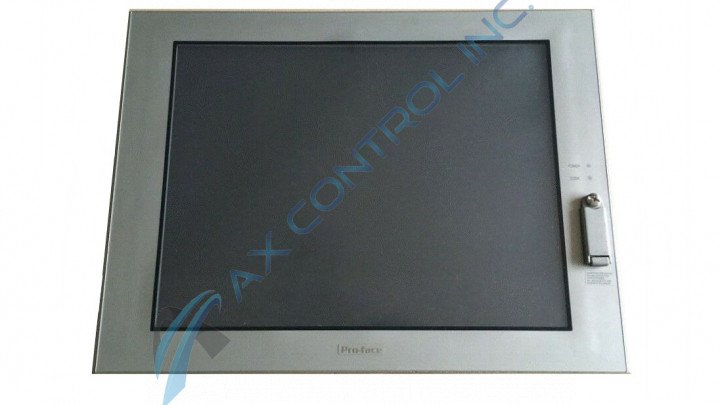

PS3710A-TA2 is an AC Powered Industrial Personal Computer with a 15-Inch TFT Color LCD with a resolution of 1024 × 768 from the Pro-face PS3700 Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PS3710A-TA2 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PS3710A-TA2

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
PS3710A-TA2 is an AC Powered Industrial Personal Computer with a 15-Inch TFT Color LCD with a resolution of 1024 × 768 from the Pro-face PS3700 Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PS3710A-TA2 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PS3710A-TA2 Technical Specifications

CPU Intel© Pentium© M 1.6 GHz
Dimensions 410mm [16.14in.] W x 309mm [12.17in.] H x 100mm [3.94in.] D
Display Colors 262,144 Colors
Display Type TFT Color LCD
Enclosure Type NEMA4/4x/12 Rated
Features 2 Slots (Max. 2 GB) SO-DIMM socket
Global Code PFXPS3712Y
Input Voltage AC100 to 240V
Model Number 3580301-02
Resolution XGA (1024 × 768 dots)
Screen Size 15 inches
Slot Type 4 COM ports, RS-232C, D-sub 9 pin (plug)
Weight ~8.0Kg(17.6lbs)

Product Description

This unit weighs approximately 8kg before it is prepared for shipment.  It has external dimensions of 410mm [16.14in.] W x 309mm [12.17in.] H x 100mm [3.94in.] D. The effective display area of the TFT Display is 304.1mm x 228.1mm (15-inches).

Special features that the PS3710A-TA2 by Pro-face include a 2 or 8 GB Bootable CompactFlash Card, 16-64 GB SSD (Solid State Drive), and an Integrated Factory Alert System with Output Port. This industrial panel computer by Digital Electronics contains an Intel® Pentium® M 1.6GHz CPU. The PS3710A-TA2 can support Windows XP Pro or XP Embedded.

The PS3710A-TA2 uses forced air cooling with the use of 2 fan units. Excessive dust and dirt can affect the panel’s performance, so make sure you check the fan and clean its filter on a regular basis. This maintenance procedure is covered in associated Pro-face manuals and will help extend the lifetime of your fan unit. As long as you follow Pro-face’s standards for installation then this unit will be NEMA 4/4x/12 Rated, be water-resistant to IPf65, and will perform optimally in Class I, Div. 2 Hazardous Locations.

If this particular version doesn’t meet your requirements, please check out the other options within our inventory. This particular unit requires AC power. If you require a DC-powered unit, we have those options available. Look through our inventory or talk to our team. For additional information on the PS3710A-TA2, take a look at original manuals or user guides.

Reviews For PS3710A-TA2
Internal Review

The PS3710A-TA2 sports exceptional features such as a 15-inch (XGA 1024x768) TFT Touch Screen Display, Intel® Pentium® M 1.6 GHz Processor, Integrated Factory Alert System, and when installed correctly, this unit is NEMA 4/4x/12 Rated, resisting Class I, Div. 2 Hazardous Locations. - AX Techs

Repair Services For PS3710A-TA2

Type Lead Time Price Action
Repair Service 1-2 weeks $567

Our highly skilled technicians can repair your PS3710A-TA2. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

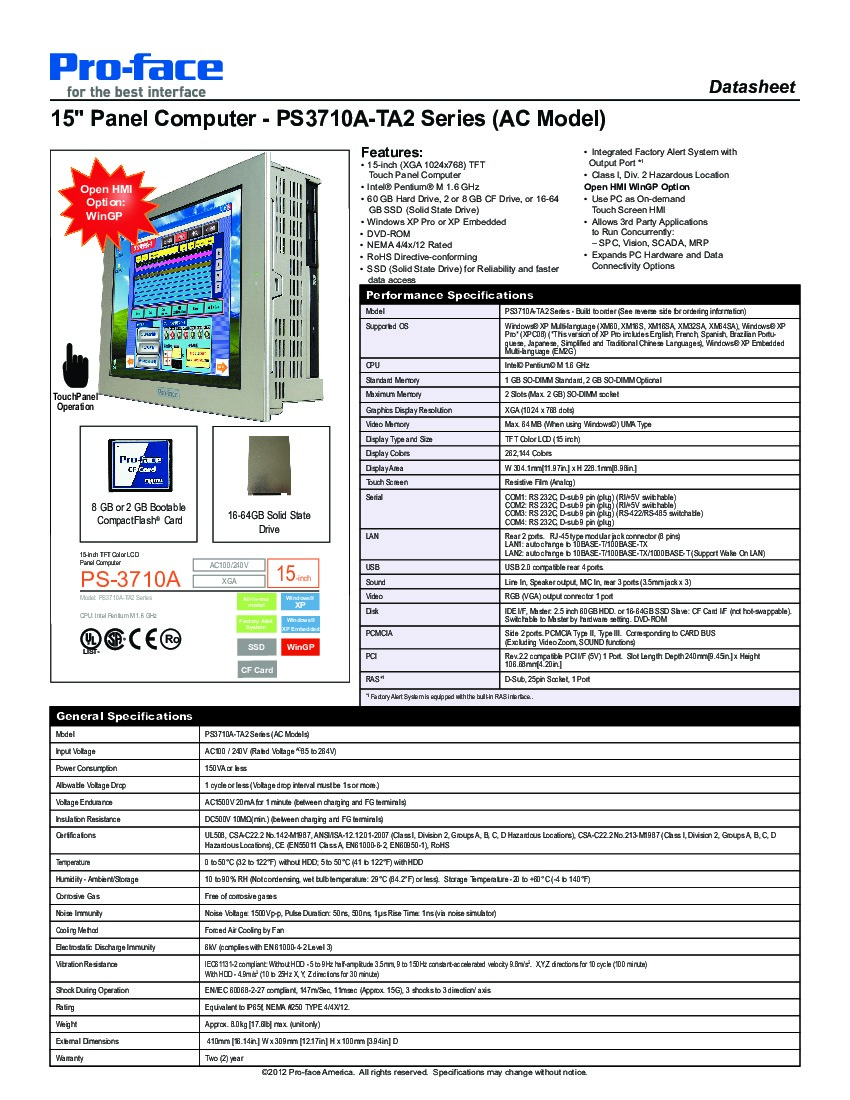

PS3710A-TA2 Manuals, White Papers, Data Sheets, and Troubleshooting
