PS3651A-T42S-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (4)
  • Click a star to rate this product
Pro-face Xycom's Industrial Personal Computer PS3651A-T42S-24V with a DC Powered 12.1-Inch TFT Color LCD

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a PS3651A-T42S-24V to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3651A-T42S-24V
  • SKU: PS3651AT42S24VPX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3651A-T42S-24V Technical Specifications

CPU Intel ULV CeleronM (600MHz)
Dimensions W313mm [12.32in.] x H239mm [9.41in.] x D60mm [2.36in.]
Display Type TFT Type Color LCD
Enclosure Type IP65f NEMA4/4x/12 Rated
Features Passively Cooled
Input Voltage DC24V
Model Number 3480801-11
Resolution XGA (1024 × 768 dots)
Screen Size 12.1 inch
Weight ~3.8kg [8.4lb]

About the PS3651A-T42S-24V

The PS3651A-T42S-24V by Pro-face is designed with an Intel CeleronM CPU using GP-Pro EX Software on a Windows OS with FirstBIOS Embedded Pro by Phoenix Technologies Co.

This module has a replaceable CFL backlight and a rugged aluminum body.  The PS3651A-T42S-24V is UL listed and RoHS compliant. When properly installed, the unit has an equivalent rating equal to IP65f or NEMA 4/4X/12.

This unit uses passive air cooling so dust and dirt won’t immediately affect performance. However, you should still perform preventative maintenance and clean the unit on a regular basis. This maintenance procedure is covered in associated Pro-face manuals and will help extend this panel’s lifespan. Make sure to locate the PS3651A-T42S-24V in areas that are free of corrosive gases. The PS3651A-T42S-24V should only be used where the ambient temperature remains between zero and 50 degrees Celsius to prevent condensation or overheating.

For many Proface Human Machine Interfaces, the overlay can be replaced during quality assurance, renewing the touchscreen even when sold as reconditioned, remanufactured, or used.

Reviews For PS3651A-T42S-24V

Internal Review
(3.0)

90% of the time, this units display and/or touch panel will no longer work if it is dropped. Be sure to have qualified persons assist in install. Manuals are viewable on our site. - AX Tech

Repair Services For PS3651A-T42S-24V

Type Lead Time Price Action
Repair Service 1-2 weeks $526

Our highly skilled technicians can repair your PS3651A-T42S-24V. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

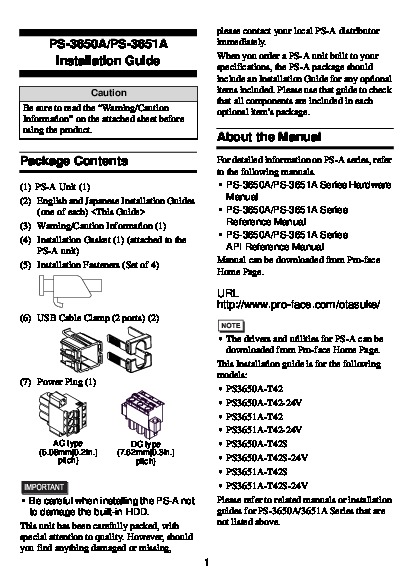

PS3651A-T42S-24V Manuals, White Papers, Data Sheets, and Troubleshooting
