PS3651A-T42S

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
With a chassis rated equivalent to IP65f and NEMA 4/x4/12, along with a bright and colorful TFT Display, the PS3651A-T42S can be used in any environment necessary.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PS3651A-T42S to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PS3651A-T42S

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
With a chassis rated equivalent to IP65f and NEMA 4/x4/12, along with a bright and colorful TFT Display, the PS3651A-T42S can be used in any environment necessary.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PS3651A-T42S to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PS3651A-T42S Technical Specifications

CPU Intel ULV CeleronM (600MHz)
Dimensions W313mm [12.32in.] x H239mm [9.41in.] x D60mm [2.36in.]
Display Type TFT Color LCD
Enclosure Type Equivalent to IP65f, NEMA 4/x4/12
Features Grounding resistance of 100 Ohms
Input Voltage AC100V
Model Number 3480801-01
Resolution XGA (1024 × 768 dots)
Screen Size 12.1 inches
Weight ~3.8kg [8.4lb]

Product Description

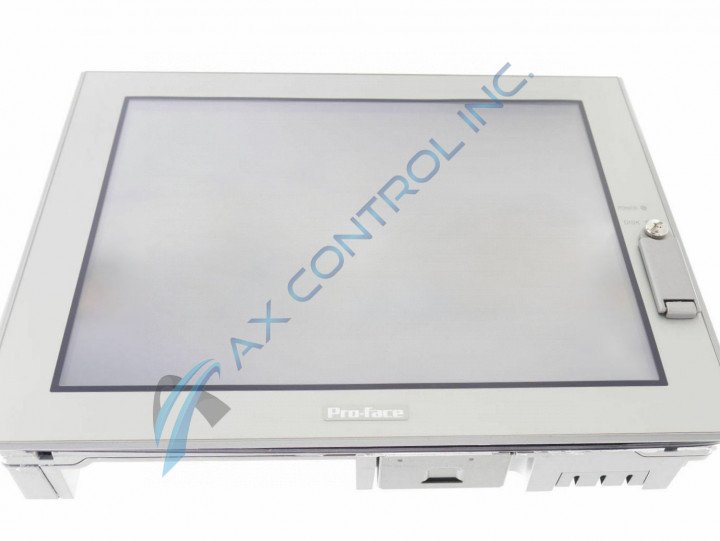

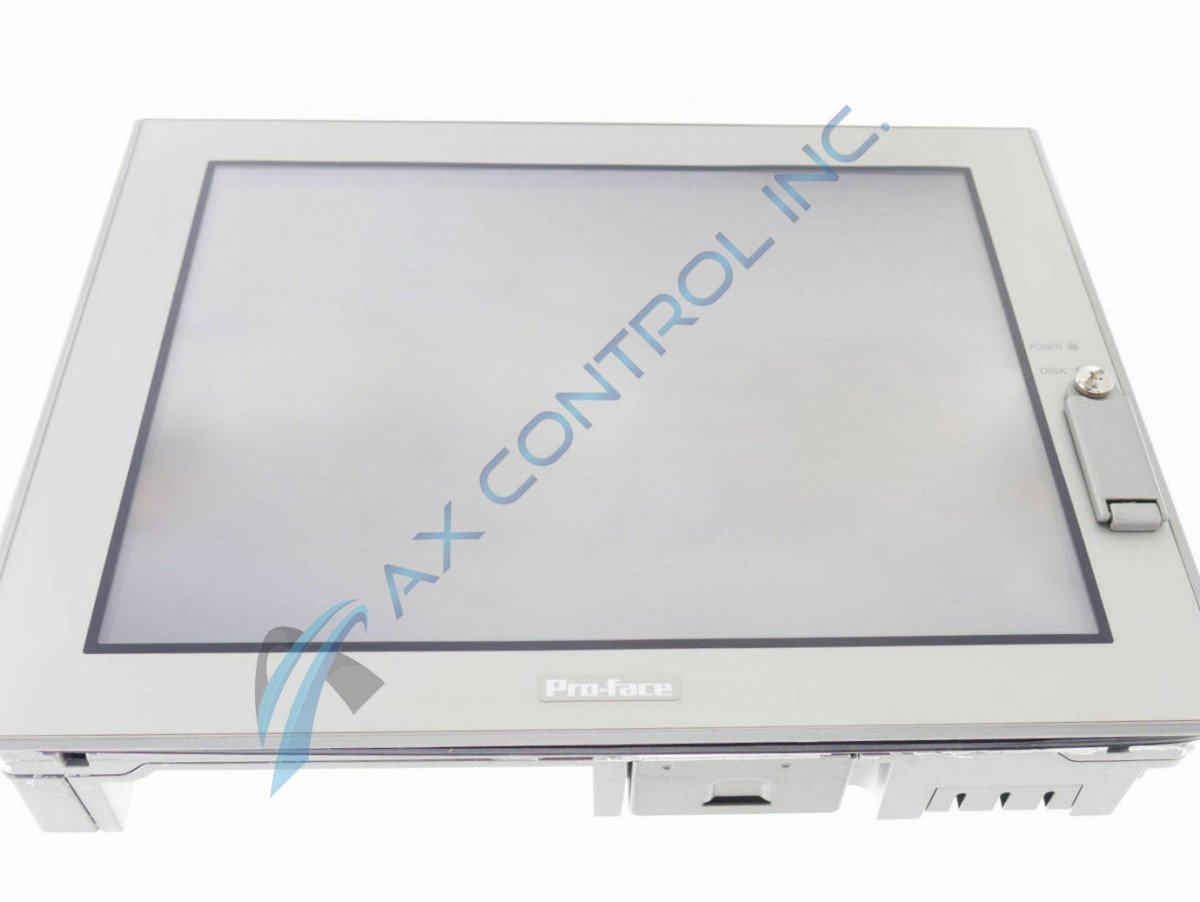

The PS3651A-T42S is a 12.1-inch panel computer from Pro-face Xycom. This is part of the company’s PS3600 series of industrial personal computers. This series features touch panel operation for quick and easy operation.

This industrial personal computer is built around an Intel ULV CeleronM 600MHz CPU. It can support a number of different OS systems, including Windows XP Pro, Windows XP ML, and Windows XP Embedded ML.  The unit also offers multiple standard interfaces, including a CF Card, serial interfaces, Ethernet, UCB, and PCMCIA.

The PS3651A-T42S requires an input voltage of 24 VDC, with a rated voltage of 19.2 to 28.8 VDC. It has a max power consumption of 40W and an In-Rush current of 30A or less at room temperature.

When installing this PS3000 HMI in an application the user must download the application-specific program using the quick designer software before use. If no external copy of the software is available, AX Control can attempt to retain the software on the panel during repair if requested in the repair order. If not specifically requested, generally the HMI is reset to factory defaults during the repair process. Our team can typically ship in-stock products within a few hours of receiving your purchase order. If an order is placed after 3 PM EST then there is a chance your order won't be shipped until the next business day.

Reviews For PS3651A-T42S
Internal Review

The PS3651A-T42S supports multiple Windows OS, including Windows XP Embedded multi-language, Windows XP Pro, and Windows XP multi-language. This is a TFT color LCD unit with 262,000+ colors available. It is fronted by an analog resistive film touch panel, allowing your team to have full control over your systems. - AX Control Tech Team

Repair Services For PS3651A-T42S

Type Lead Time Price Action
Repair Service 1-2 weeks $514

Our highly skilled technicians can repair your PS3651A-T42S. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

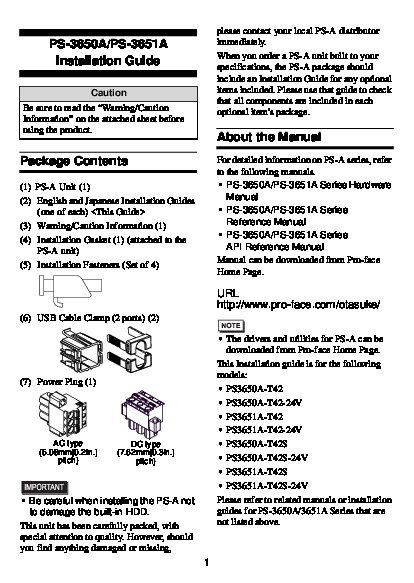

PS3651A-T42S Manuals, White Papers, Data Sheets, and Troubleshooting
