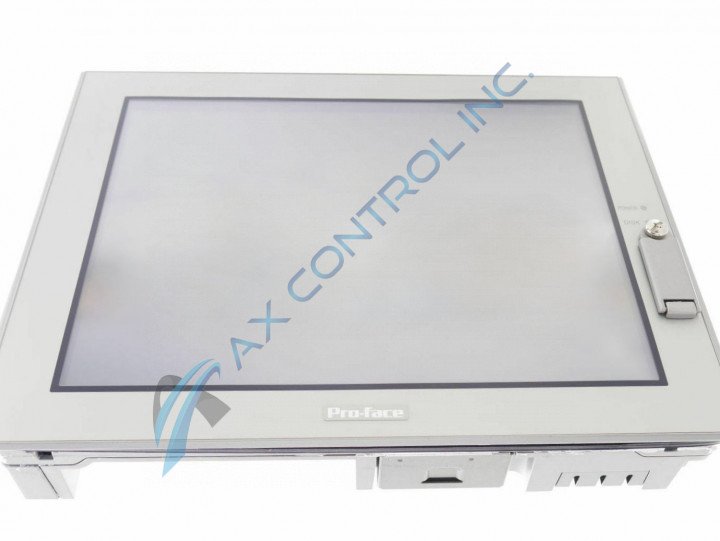

The PS3651A-T42 Unit is a 12.1-Inch NEMA Rated Touchscreen Operator Interface designed by Digital Electronics, a subsidiary of Pro-face Schneider Electric.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a PS3651A-T42 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3651A-T42
  • SKU: PS3651AT42PX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3651A-T42 Technical Specifications

CPU Intel ULV CeleronM (600MHz)
Dimensions W313mm [12.32in.] x H239mm [9.41in.] x D60mm [2.36in.]
Display Type TFT Type Color LCD
Enclosure Type NEMA 4/4X/12, IP65f
Features Natural Air Circulation
Input Voltage AC100V
Model Number 3480801-01
Resolution XGA (1024 × 768 dots)
Screen Size 12.1 inch
Weight ~3.8kg [8.4lb]

About the PS3651A-T42

The PS3651A-T42 is a PS3000 Series Industrial Computer from Pro-face Xycom.  This series is designed to offer users all-in-one PCs with the ruggedness to survive the rigors of the industrial floor.  This PS3651-A system offers a 12.1-inch XGA display with rich colors.

This industrial personal computer is built around a Celeron M 1.0 GHz central processing unit.  It can support a number of different OS systems, including Windows XP Pro, Windows XP ML, and Windows XP Embedded ML.  The unit works on a 100 to 240 VAC power supply and offers multiple standard interfaces, including a CF Card, serial interfaces, Ethernet, UCB, and PCMCIA.

Units like this one have a replaceable backlight and a rugged aluminum body.  They are UL listed and RoHS compliant.  When properly installed, the unit has an equivalent rating equal to IP65f or NEMA 4/4X/12.  Read through associated documentation for full installation instructions.   Additionally, this unit can support an optional built-in battery backup unit.

This unit weighs approximately 8.4 pounds before it is prepared for shipment.  It has external dimensions of 12.32 inches by 9.41 inches by 2.36 inches.  This particular unit does not include a fan but instead uses natural air cooling using an installed heat sink.  Make sure you read through associated manuals to understand the limitations and proper use of this heat sink model.  Because it does not have a fan, proper installation is necessary to maintain a working temperature.   If you need access to these documents, talk to our team.

Reviews For PS3651A-T42

Internal Review
(5.0)

This product is designed to offer users all-in-one PCs with the ruggedness to survive the rigors of the industrial floor. When properly installed, the unit has an equivalent rating equal to IP65f or NEMA 4/4X/12. - AX Techs

Repair Services For PS3651A-T42

Type Lead Time Price Action
Repair Service 1-2 weeks $547

Our highly skilled technicians can repair your PS3651A-T42. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

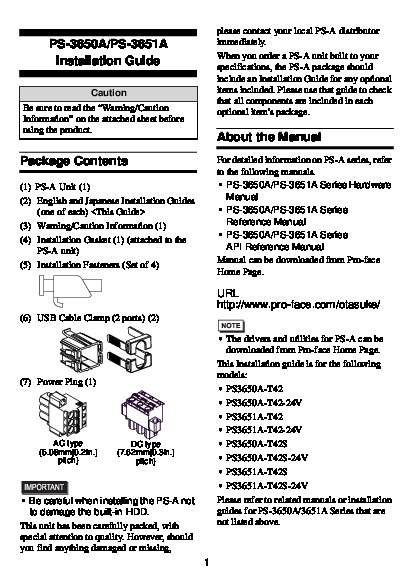

PS3651A-T42 Manuals, White Papers, Data Sheets, and Troubleshooting
