PS3651A-T41

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (4)
  • Click a star to rate this product

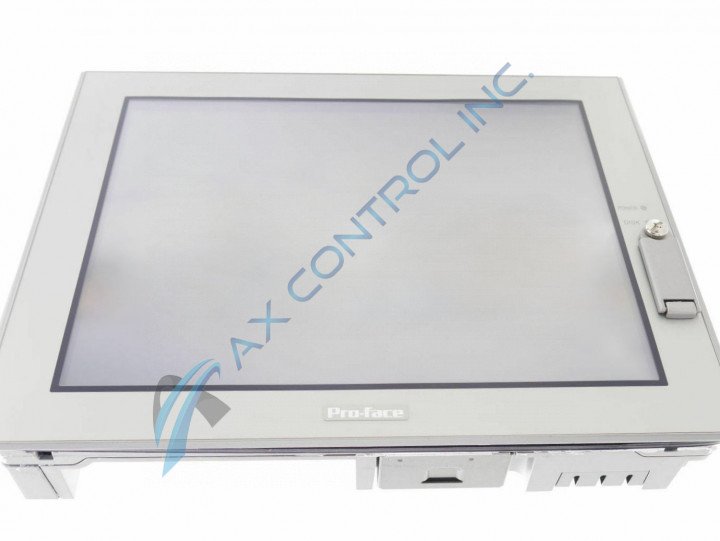

The PS3651A-T41 is a 12 inch HMI included in the Pro-face PS3000 Industrial PC Family. It features 2 LED indicator lights on the front of the display directly to the left of the touchscreen.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a PS3651A-T41 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3651A-T41
  • SKU: PS3651AT41PX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3651A-T41 Technical Specifications

CPU Intel ULV CeleronM (600MHz)
Dimensions W313mm [12.32in.] × H239mm [9.41in.] × D60mm [2.36in.]
Display Type TFT Type Color LCD
Enclosure Type Rated IP65f, NEMA 4/x/12
Features FirstBIOS Embedded Pro (Phoenix Technologies Co.)
Input Voltage AC100V
Model Number 3480801-01
Resolution XGA (1024 × 768 dots)
Screen Size 12.1 inches
Slot Type COM1 Port and 2 Ethernet Ports
Weight ~3.8kg [8.4lb]

About the PS3651A-T41

The PS3650A-T42-24V  is a slim 12.1-inch XGA TFT Touch panel computer from Pro-face Xycom. This is part of the PS3000 series. AX Control works hard to maintain the on-hand stock of many different Proface systems so we can get you what you need, quickly.

The PS3651A-T41 is built around an Intel Celeron CPU and FirstBIOS Embedded Pro by Phoenix Technologies Co.  It has a 1 MB L2 Cache memory along with 1GB main memory.  The board features 1 COM interface, 2 ethernet ports, and 4 USB ports. This industrial PC requires an input voltage of AC100V. This unit is UL listed, CE certified, and RoHS compliant.

Make sure to locate the PS3651A-T41 in areas that are free of corrosive gases. This unit should only be used where the ambient temperature remains between zero and 50 degrees Celsius. The unit uses forced air cooling with a fan unit.  Excessive dust and dirt can affect the fan’s performance, so make sure you check the fan and clean its filter on a regular basis. This maintenance procedure is covered in associated Pro-face manuals and will help extend the lifetime of your fan unit. This unit should mount within a panel using installation fasteners to minimize vibration. Check the installation gasket after installation on a regular basis to ensure it is in good condition.

Reviews For PS3651A-T41

Internal Review
(4.0)

While the software setup of the PS3651A-T41 may be painless, we recommend that qualified persons assist in the manual install of the hardware itself as it may be confusing for some. - AX Control Techs

Repair Services For PS3651A-T41

Type Lead Time Price Action
Repair Service 1-2 weeks $544

Our highly skilled technicians can repair your PS3651A-T41. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
