PS3650A-T42S-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
The PS3650A-T42S-24V HMI fronts a 24VDC Input Voltage in order to power its 12.1-inch CFL Backlit Touch Panel LCD along with 2 Serial Ports

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a PS3650A-T42S-24V to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3650A-T42S-24V
  • SKU: PS3650AT42S24VPX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3650A-T42S-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
The PS3650A-T42S-24V HMI fronts a 24VDC Input Voltage in order to power its 12.1-inch CFL Backlit Touch Panel LCD along with 2 Serial Ports

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a PS3650A-T42S-24V to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3650A-T42S-24V
  • SKU: PS3650AT42S24VPX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3650A-T42S-24V Technical Specifications

CPU Intel Celeron M320 (1.3GHz)
Dimensions W313mm [12.32in.] x H239mm [9.41in.] x D103mm [4.06in.]
Display Type TFT Color LCD
Enclosure Type NEMA 4/4X/12, IP65f
Features Forced Air Cooling
Input Voltage DC24V
Model Number 3480801-12
Resolution XGA (1024 × 768 dots)
Screen Size 12.1 inch
Weight ~4.5kg [9.9lb]

Product Description

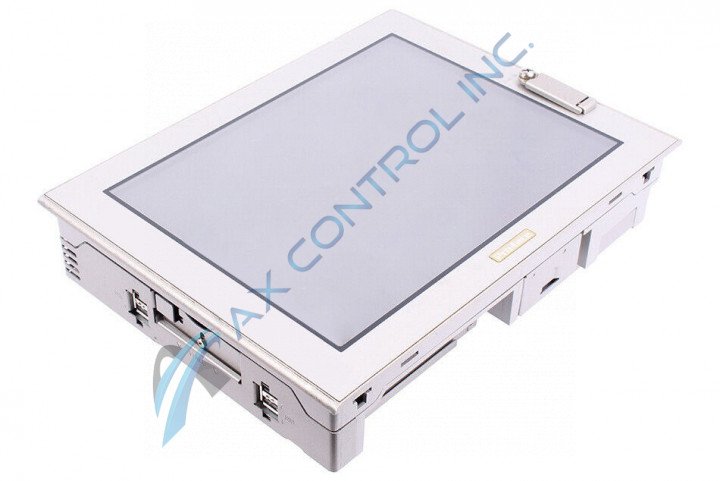

The PS3650A-T42S-24V from Pro-face Xycom is a 12.1-inch XGA Industrial personal computer. This touch panel PC works off of a 24 VDC input and offers 2 serial ports. AX Control maintains on-hand stock of many different Pro-face industrial computers from the PS3000 series as well as other series. This way, we can provide you with the items you need quickly and efficiently. The PS3000 Series is designed to offer users a cost-effective panel that’s thin and compact. These units can support multiple languages. The interfaces comply with international safety standards.

The PS3650A-T42S-24V is built around an Intel Celeron M CPU. This is a 1.5GHz CPU. The unit offers XGA graphic display resolution and has 1 GB of SO-DIMM standard memory. The touch panel is an analog resistive film unit and has an effective display area of 9.68 inches by 7.26 inches.

This unit offers 2 serial ports to users, as well as one front face USB and 4 side USB ports. It has a stereo speaker output, along with other inputs and outputs. Read through associated Pro-face manuals and datasheets for additional information about this particular unit.

The PS3650A-T42S-24V should not be used where corrosive gases are present. The unit uses a fan for forced air cooling. Fans can become less efficient with time due to dust or other contaminants. Make sure to check your fan regularly to make sure it is free from contaminants. Maintenance procedures are listed in associated manuals.

Reviews For PS3650A-T42S-24V
Internal Review

The PS3000 Series is designed to offer users a cost-effective panel that’s thin and compact while still complying with international safety standards. These units can support multiple languages. - AX Technician

Repair Services For PS3650A-T42S-24V

Type Lead Time Price Action
Repair Service 1-2 weeks $472

Our highly skilled technicians can repair your PS3650A-T42S-24V. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

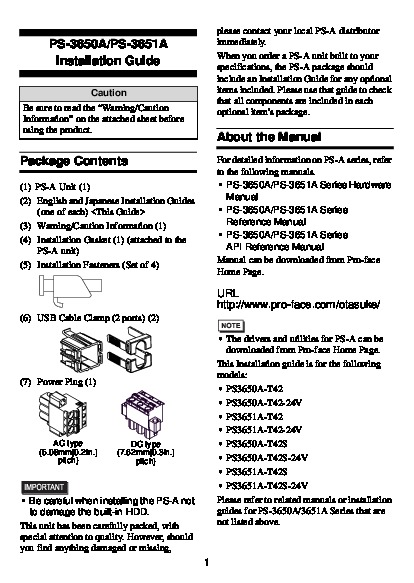

PS3650A-T42S-24V Manuals, White Papers, Data Sheets, and Troubleshooting
