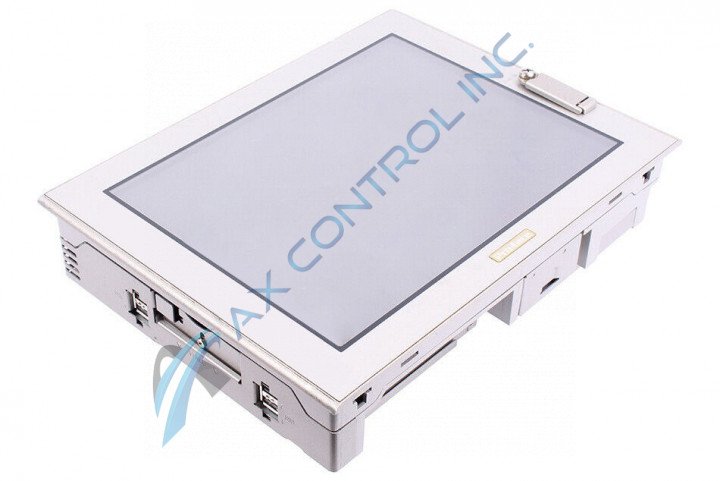

Digital Electronic PS3650A-T42S is a 12.1-inch Industrial Personal Computer from the PS-3600 Series with a resolution of 1024 x 768 pixels and a weight of ~10lbs.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PS3650A-T42S to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PS3650A-T42S

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
Digital Electronic PS3650A-T42S is a 12.1-inch Industrial Personal Computer from the PS-3600 Series with a resolution of 1024 x 768 pixels and a weight of ~10lbs.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PS3650A-T42S to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PS3650A-T42S Technical Specifications

CPU Intel Celeron M320 (1.3GHz)
Dimensions W313mm [12.32in.] x H239mm [9.41in.] x D103mm [4.06in.]
Display Type XGA (1024 × 768 dots)
Enclosure Type IP65f NEMA4/4x/12 Rated
Features Grounding resistance of 100 Ohms
Input Voltage AC100V
Model Number 3480801-02
Resolution 1024 x 768 pixels (XGA)
Screen Size 12.1 inches
Weight ~4.5kg [9.9lb]

Product Description

The Pro-face PS3650A-T42S panel computer features an Intel Celeron M 1.5 GHz microprocessor and delivers quick and easy storage expansion. The PS3650A-T42S supports a 12.1-inch analog touch panel TFT color LCD. The power requirements for this product are the standard 120V or 220/240V AC, or 24V DC. The PS3650A-T42S is built to order, depending on your requirements and environment.

The human-machine interface (HMI) WinGP feature enables the PS3650A-T24s to act as an on-demand touch screen HMI device. It also enables third-party software applications to run at the same time.

The graphics display supports 1024 x 766 pixels (XGA) TFT active matrix resolution. And the PS3650A-T42S supports 262,144 colors. The display area is W 245.76mm (9.68in) x H 184.32mm (7.26in).

The PS3650A-T42S supports RS-232C (COM1) and RS-232C (COM2) serial ports. The PS3650A-T42S also supports one auto-switching 10BASE-T/100BASE-TX Ethernet connection (LAN 1) and one auto-switching 10BASE-T/100BASE-TX/1000BASE-T (supports Wake-On LAN) Ethernet connection (LAN2). One PCI (rev 2.2 compatible) expansion slot is supported. The PS3650A-T42S supports USB 2.0 with 4 USB connectors available for use. Hard disk drives (HDD) and solid-state drives (SSD) are available for reliability and improved usability.

The maximum memory is 1 GB SO-DIMM populating one available DIMM socket. The standard memory is also 1 GB SO-DIMM memory.

Reviews For PS3650A-T42S
Internal Review

The TFT display of the PS3650A-T42S supports a resolution of 1024x766 pixels (XGA), supporting 262,144 colors. However, if dropped, the LCD panel will most likely need to be replaced or repaired. - AX Techs

Repair Services For PS3650A-T42S

Type Lead Time Price Action
Repair Service 1-2 weeks $500

Our highly skilled technicians can repair your PS3650A-T42S. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

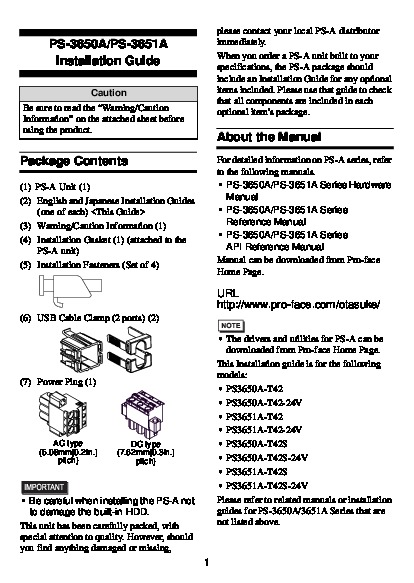

PS3650A-T42S Manuals, White Papers, Data Sheets, and Troubleshooting
