PS3650A-T42-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
The PS3650A-T42-24V by Pro-face offers the user 12.1 inches of NEMA Rated display, a 24V DC Power Supply, and 2 serial ports as well as one front-facing USB and 4 side USB ports

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a PS3650A-T42-24V to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3650A-T42-24V
  • SKU: PS3650AT4224VPX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3650A-T42-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
The PS3650A-T42-24V by Pro-face offers the user 12.1 inches of NEMA Rated display, a 24V DC Power Supply, and 2 serial ports as well as one front-facing USB and 4 side USB ports

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a PS3650A-T42-24V to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3650A-T42-24V
  • SKU: PS3650AT4224VPX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3650A-T42-24V Technical Specifications

CPU Intel Celeron M320 (1.3GHz)
Dimensions W313mm [12.32in.] x H239mm [9.41in.] x D103mm [4.06in.]
Display Type TFT Color LCD
Enclosure Type Rated IP65f, NEMA 4/x/12
Features CFL Backlight
Input Voltage DC24V
Model Number 3480801-12
Resolution XGA (1024 × 768 dots)
Screen Size 12.1 inches
Slot Type 2 RS-232C Compliant Ports
Weight ~4.5kg [9.9lb]

Product Description

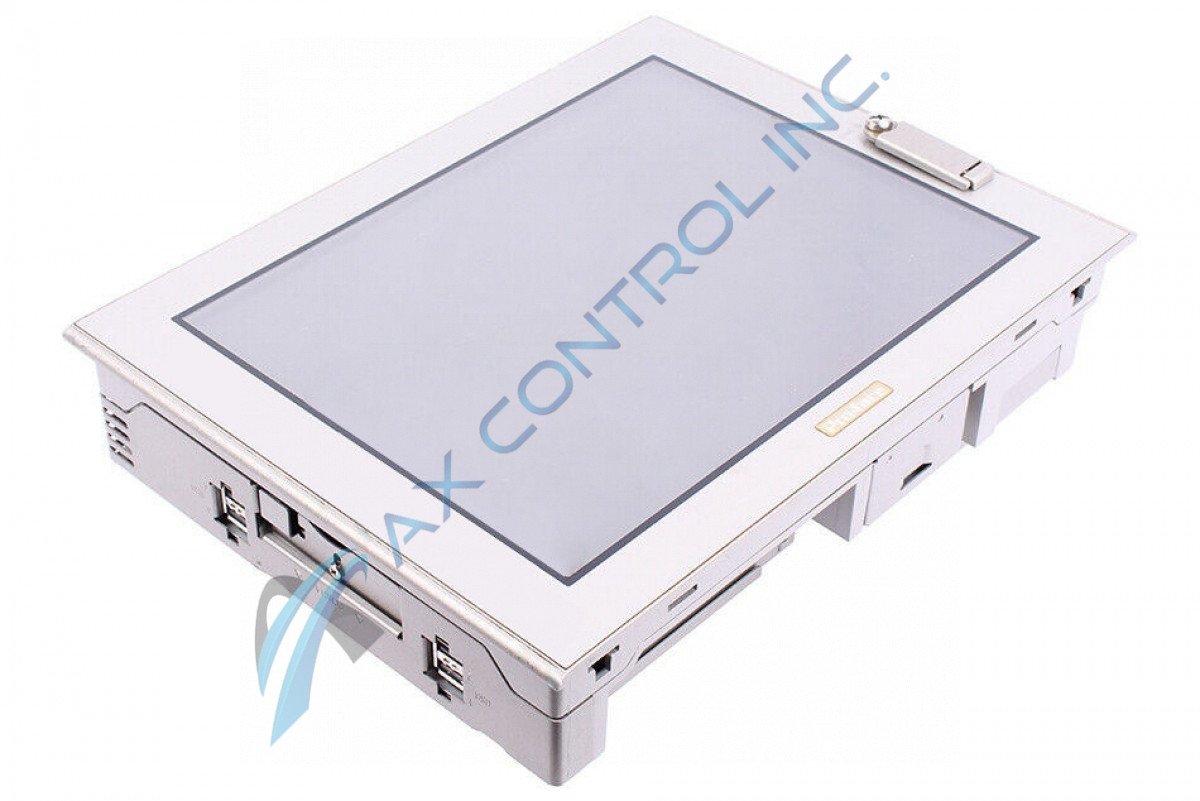

The PS3650A-T42-24V is a 12.1-inch XGA TFT Touch panel computer from Pro-face Xycom. This is part of the PS3000 series. AX Control works hard to maintain the on-hand stock of many different Proface systems so we can get you what you need, quickly.

This unit is built around a 1.5 GHz Intel Celeron CPU. It has a 1 MB L2 Cache memory along with 1GB main memory. The board has 2 COM interfaces, 2 LAN interfaces, multiple USB ports, a RAS interface, speaker output, serial ATA, and a CF card slot.

This industrial computer system requires an input voltage of 24 VDC, with a rated voltage of 19.2 to 20.8 VDC. It has a power consumption of 80 W or less and has an allowable voltage drop of 5ms or less. This unit is UL listed, CE certified, and RoHS compliant.

The PS3650A-T42-24V weighs approximately 9.9 pounds and is 12.32 inches by 9.41 inches by 4.06 inches. This unit should mount within a panel using installation fasteners to minimize vibration. Check the installation gasket after installation regularly to ensure it is in good condition. Make sure to locate the PS3650A-T42-24V in areas that are free of corrosive gases. This unit should only be used where the ambient temperature remains between zero and 50 degrees Celsius. The unit uses forced air cooling with a fan unit. Excessive dust and dirt can affect the fan’s performance, so make sure you check the fan and clean its filter regularly. This maintenance procedure is covered in associated Pro-face manuals and will help extend the lifetime of your fan unit.

Reviews For PS3650A-T42-24V
Internal Review

The unit uses forced air cooling with a fan unit. Excessive dust and dirt can affect the fan’s performance, so make sure you check the fan and clean its filter on a regular basis. This maintenance procedure is covered in associated Pro-face manuals and will help extend the lifetime of your fan unit. - AX Technician

Repair Services For PS3650A-T42-24V

Type Lead Time Price Action
Repair Service 1-2 weeks $632

Our highly skilled technicians can repair your PS3650A-T42-24V. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

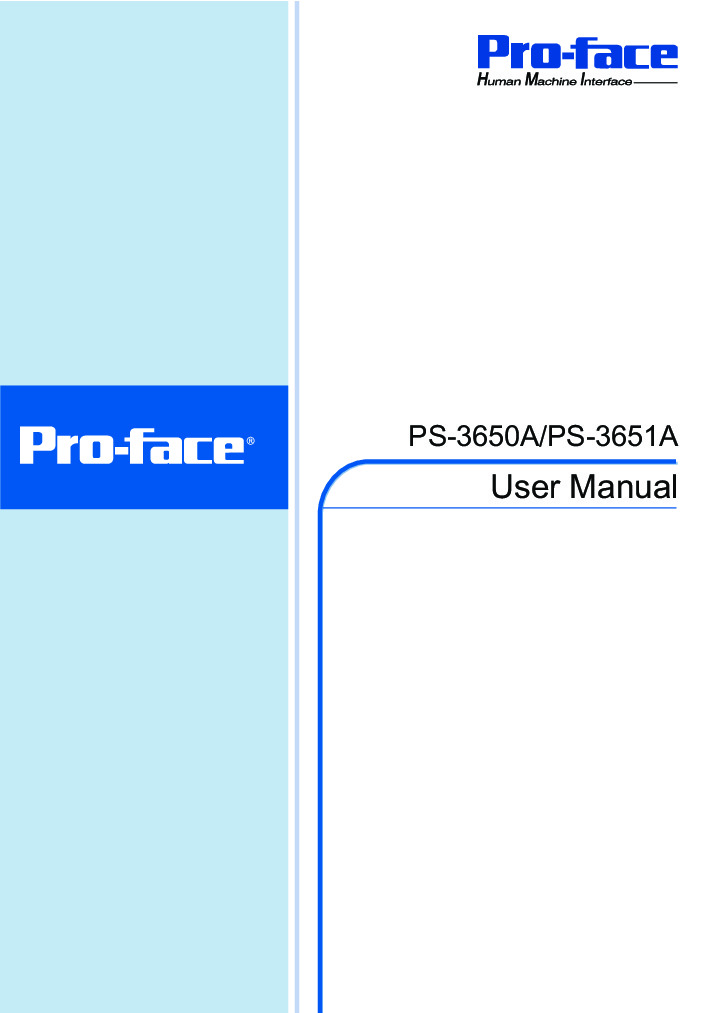

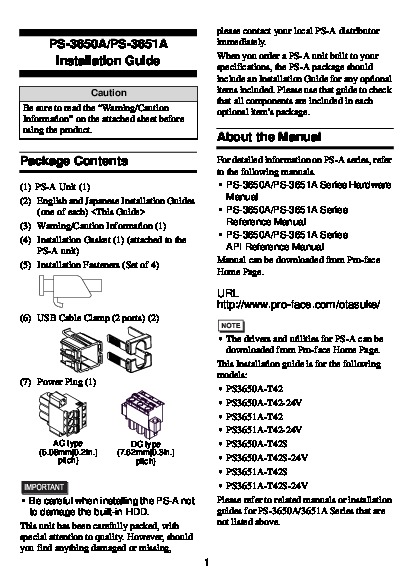

PS3650A-T42-24V Manuals, White Papers, Data Sheets, and Troubleshooting
