PS3650A-T42

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product

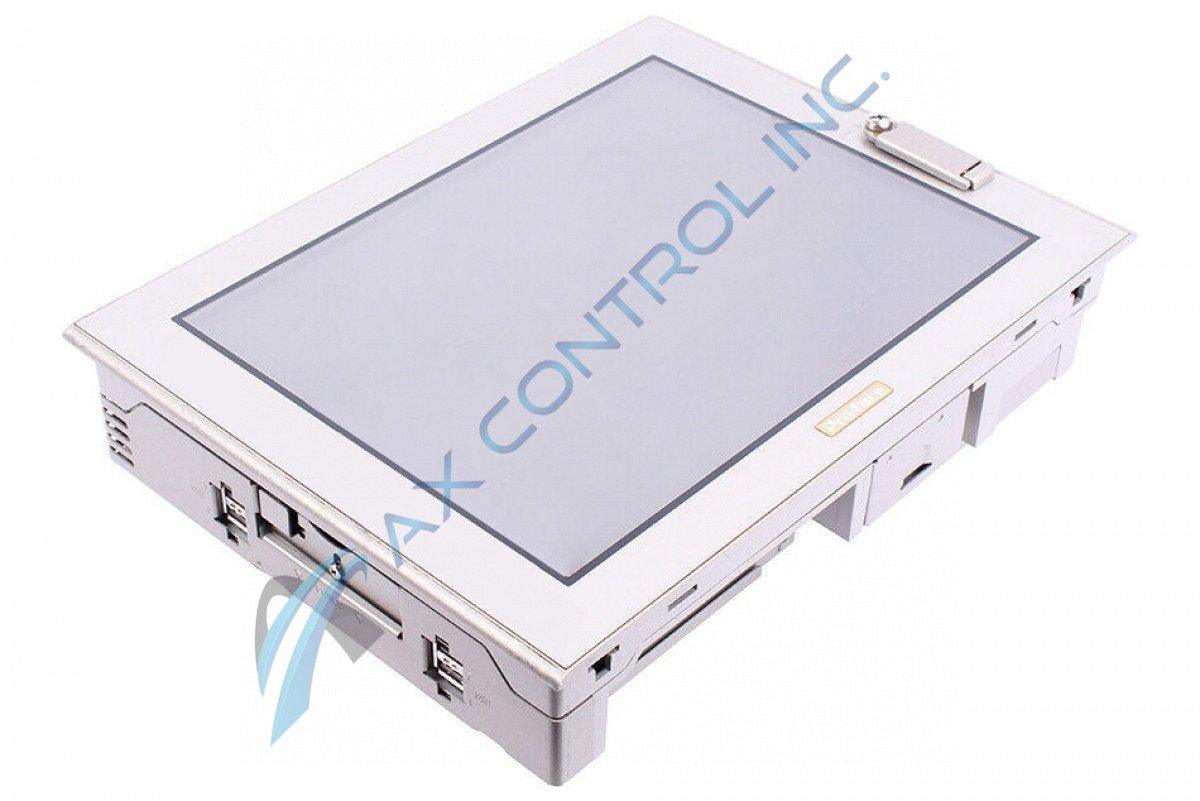

Pro-face PS3650A-T42 panel computer

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a PS3650A-T42 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3650A-T42
  • SKU: PS3650AT42PX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3650A-T42 Technical Specifications

CPU Intel Celeron M320 (1.3GHz)
Dimensions W313mm [12.32in.] x H239mm [9.41in.] x D103mm [4.06in.]
Display Type TFT Color LCD
Enclosure Type IP65f NEMA4/4x/12 Rated
Features Forced cooling by fan
Input Voltage AC100V
Model Number 3480801-02
Resolution XGA (1024 × 768 dots)
Screen Size 12.1 inches
Slot Type 2COM Ports
Weight ~4.5kg [9.9lb]

About the PS3650A-T42

The Pro-face PS3650A-T42 panel computer contains an Intel Celeron M 1.5 GHz microprocessor and provides quick and easy storage expansion. The PS3650A-T42 supports a 12.1-inch analog touch panel TFT color LCD. The power requirements for this product are the standard 120V or 220/240V AC, or 24V DC. The PS3650A-T42 is fully customizable and is built to order, depending on your requirements.

The graphics display supports 1024x766 pixels (XGA) TFT active matrix resolution. And, the PS3650A-T42 supports 262,144 colors. The display area is W 245.76mm (9.68in) x H 184.32mm (7.26in).

The PS3650A-T42 supports an RS-232C (COM1) serial port. A COM2 serial port is not available. The PS3650A-T42 also supports one auto change to 10BASE-T/100BASE-TX Ethernet connection (LAN 1) and one auto change to 10BASE-T/100BASE-TX/1000BASE-T (supports Wake-On LAN) Ethernet connection (LAN2). One PCI (rev 2.2 compatible) expansion slot is supported. This unit supports USB 2.0 with a maximum of 4 USB connectors. Hard disk drives (HDD) and solid-state drives (SSD) are available for reliability and improved usability.

Windows® XP Multi-language, Windows® XP Pro, and Windows® XP Embedded Multi-language operating systems are supported and are selectable in the build-to-order process.

The standard memory configuration is 1 GB SO-DIMM populating one available DIMM socket.

Reviews For PS3650A-T42

Internal Review
(5.0)

The PS3650A-T42 is fully customizable and is built to order, depending on your requirements. This unit supports USB 2.0 with a maximum of 4 USB connectors. HDD's and SSD's are available for reliability, improved usability, and storage expansion. - AX Techs

Repair Services For PS3650A-T42

Type Lead Time Price Action
Repair Service 1-2 weeks $459

Our highly skilled technicians can repair your PS3650A-T42. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

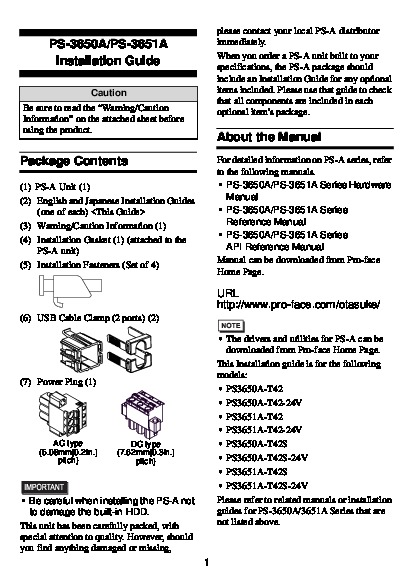

PS3650A-T42 Manuals, White Papers, Data Sheets, and Troubleshooting
