PS3451A-T41-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product

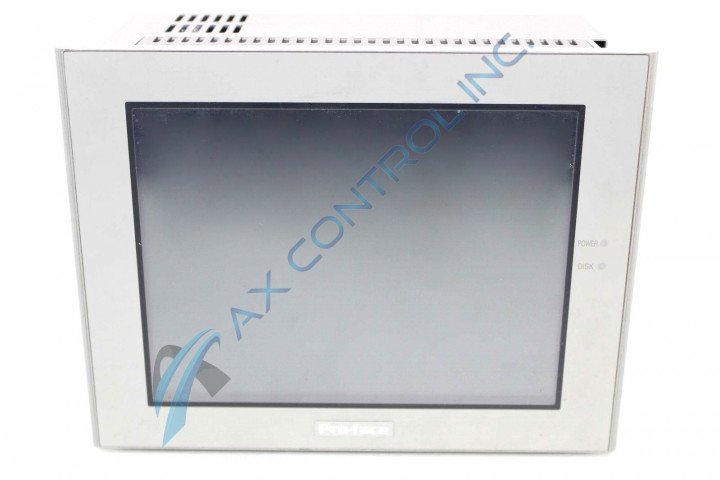

The PS3451A-T41-24V Module is an 8.4" Touchscreen HMI designed by Digital Electronics, a subsidiary for Pro-face. This series is NEMA Rated and this unit in particular features passive air cooling for silent operation.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a PS3451A-T41-24V to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PS3451A-T41-24V
  • SKU: PS3451AT4124VPX
  • Manufacturer: Pro-face Xycom
  • Series: PS3000 Series

PS3451A-T41-24V Technical Specifications

CPU ULV IntelĀ® CeleronĀ® M (600MHz)
Dimensions W230mm [9.06in] X H177mm [6.97in] X D65mm [2.56in]
Display Type TFT Color LCD
Enclosure Type Rated IP65f, NEMA 4/x/12
Features Passive Air Cooling
Input Voltage DC24V
Model Number 3581702-12
Resolution SVGA (800 x 600 dots)
Screen Size 8.4 inches
Slot Type 2 Serial (RS-232C) slots
Weight ~3.5Kg (7.7lbs)

About the PS3451A-T41-24V

The PS3451A-T41-24V is an 8.4" Proface HMI Touchscreen Display with a 24VDC Input power requirement. The resolution of this display TFT Color LCD Display is 800 x 600 Pixels while the display colors total 262,144 colors.

The supported operating systems for the PS3451A-T41-24V are as follows: Windows 2000, Windows XP, and Windows XP Embedded. The software for the PS3451A-T41-24V can be used to adjust the brightness of the display (4 options can be selected). The touch panel resolution is standard for this type of HMI at 1024 x 1024. A natural air circulation system that uses vents on the back of the touchscreen ensures that heat regulation is kept in check during prolonged use.

When installing this PS3000 HMI in an application the user must download the application-specific program using the quick designer software before use. If no external copy of the software is available, AX Control can attempt to retain the software on the panel during repair if requested in the repair order. If not specifically requested, generally the HMI is reset to factory defaults during the repair process.

Reviews For PS3451A-T41-24V

Internal Review
(4.0)

With necessary programs such as Windows 2000, Windows XP, and Windows XP Embedded, this unit is outdated. However, that is what we specialize in and will be more than happy you assist you getting your workshop back up and running. - AX Techs

Repair Services For PS3451A-T41-24V

Type Lead Time Price Action
Repair Service 1-2 weeks $449

Our highly skilled technicians can repair your PS3451A-T41-24V. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
