AGP3400-T1-D24 HMI by Pro-face is powered by a DC24V power supply that features a 7.5 inch VGA input TFT color LCD with a resolution of 640 x 480 dots with a standard board type.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a AGP3400-T1-D24 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

AGP3400-T1-D24

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
AGP3400-T1-D24 HMI by Pro-face is powered by a DC24V power supply that features a 7.5 inch VGA input TFT color LCD with a resolution of 640 x 480 dots with a standard board type.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a AGP3400-T1-D24 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

AGP3400-T1-D24 Technical Specifications

Display Type TFT Color LCD
Model AGP-3400T
Model Number 3280035-01
Resolution 640 x 480
Screen Size 7.5 in.

Product Description

The AGP3400-T1-D24 is an HMI operator interface from Pro-Face. This unit is designed to work efficiently and to streamline the processes on your plant floor.

The AGP3400-T1-D24 may also be listed as global code PFXGP3400TAD.  The unit is a standard GP series machine built with a TFT color touchscreen.  This is a 7.5 inch VGA display with a resolution of 640 x 480 dpi.   The unit is designed to operate on a 24VDC power supply.

The touchscreen on the  AGP3400-T1-D24 has a dot pitch of .01 inch by .01 inch.  Color/shade levels are over 65k colors.  The unit is backlit either by a CCFL or a White LED.  The unit has eight levels of brightness control available from the screen.

TheAGP3400-T1-D24 is most often used with GP-Pro EX software, which provides easy operations through user-friendly drag-and-drop operations.  It has a menu and icons that are familiar to most users and have animation features to reduce the number of display screens required at a given time.  These screens can be used to hide or call up specific parts and to move, rotate and change the color of an object.

The AGP3400-T1-D24 includes a CF Card and USB memory.  These allow the user to operate CSV data transfer and logging functions.   Additionally, operation logs that record actions and error causes, or the who/what/when of your operation, allow you much of the data needed to decrease operator error and improve your factory floor metrics.

More information about the  AGP3400-T1-D24 may be found through documentation like user guides and product manuals.  If you need information regarding shipping, payment options, or warranty service, please visit those pages on our website.

Reviews For AGP3400-T1-D24
Internal Review

This standard GP3000 HMI from Pro-face Xycom weighs approximately 1.8 kg with external dimensions of 8.46 inches by 6.69 inches by 2.36 inches. When properly installed in a panel, the HMI will have a rating equivalent to IP65f or NEMA Type 4x/13. Make sure to check the positioning of the rear gasket as you install the unit. --AX Control Tech Team.

Repair Services For AGP3400-T1-D24

Type Lead Time Price Action
Repair Service 1-2 weeks $476

Our highly skilled technicians can repair your AGP3400-T1-D24. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

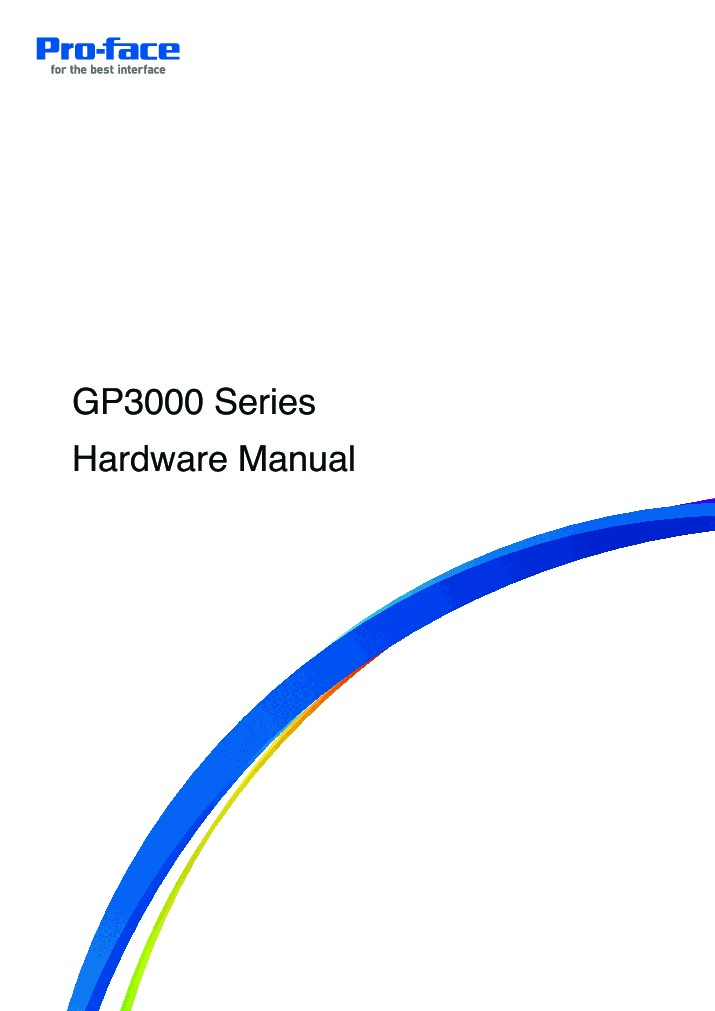

AGP3400-T1-D24 Manuals, White Papers, Data Sheets, and Troubleshooting
