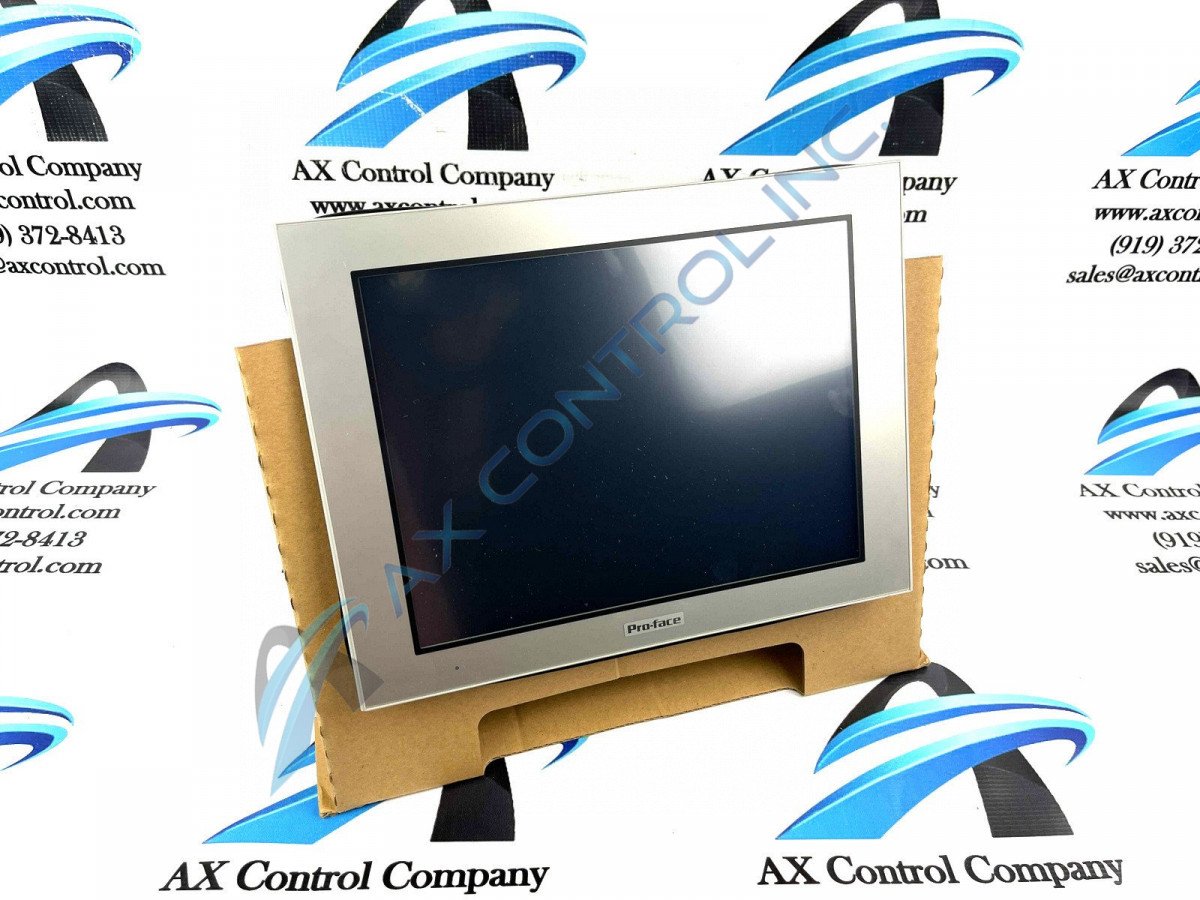

The PFXGP4601TMA Matrix HMI has a 12.1-inch TFT SVGA 800 x 600 Matrix Touch Panel, along with 2 COM ports and a replaceable battery/SD card slot



Sell Surplus: Have a PFXGP4601TMA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PFXGP4601TMA
  • Manufacturer: Pro-face by Schneider Electric
  • Series: GP4000 Series

PFXGP4601TMA Technical Specifications

Manufacturer Pro-Face
Touch Panel Matrix Resistive Film
Software Version GP-Pro EX
Screen Size 12.1-Inch
Resolution 800 x 600 dots (SVGA)
Battery Removable
Language Options Korean, English, Japanese, Traditional Chinese, Simp. Chinese, Thai, Cyrillic
Input Voltage AC type power supply
Features Matrix Touch Panel
Display Type TFT color LCD
Brightness Control Options 16 Levels that can be adjusted via the Display or through the software

Product Description

PFXGP4601TMA is a Schneider Electric ProFace Display with a rated input voltage of AC 100 to 240 V. The input voltage limits are AC 85 to 264 V. The allowable voltage drop is 1 cycle or less, and the voltage drop interfal must be 1 second or more. The power consumption is 44 VA or less at 100 VAC and 58 VA or less at 240 VAC. The in-rush current is 30 A or less. The voltage endurance is 1500 VAC, 20 mA for one minute (between charging and FG terminals). The insulation resistance is 500 VDC, 10 MΩ or more (between charging and FG terminals). The ambient and storage humidity for this display should be kept between 10 and 90%. The allowable dust is 0.1 mg/m3 (10-7 oz/ft3) or less at non-conductive levels.

The atmosphere must be kept free of corrosive gases. This display should be kept under 2000 meters above sea level or less. The Contact Discharge Method is 6 kV (IEC/EN61000-4-2 Level 3). The approximate weight is 2.5 kg or less. The external dimensions are 315 mm x 241 mm x 56 mm. To install this display, create a panel cut out. The panel thickness should be 1.6 mm to 5.0 mm. Mount the GP unit at least 100 mm away from adjacent structures and other parts. The outer shell acts as the GP’s ventilation system so that it can naturally cool itself. However, if the unit must be installed sideways or horizontally, a forced air cooling system should be implemented to lower the surrounding temperature and avoid overheating.

Reviews For PFXGP4601TMA

Internal Review

The PFXGP4601TMA HMI model is a 12.1 inch HMI touch screen operator interface that can support four protocol drivers at one time. The unit has a Matrix resistive film touch screen. The color SVGA display supports over 65,000 colors. This is an AC input unit (AC 100 to 240 VAC.) Do not use at altitudes above 2000 meters or where temperatures exceed 55 degrees Celsius. The unit uses natural air circulation for cooling and so must be installed properly to operate properly.
