The PFXGP4402WADW Widescreen 7-inch TFT LCD 800 x 480 Resolution Touch PaneI by Pro-face has USB Storage and an FTP server. It also allows for MAC Address Display and a variety of language font options.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PFXGP4402WADW to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PFXGP4402WADW

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
The PFXGP4402WADW Widescreen 7-inch TFT LCD 800 x 480 Resolution Touch PaneI by Pro-face has USB Storage and an FTP server. It also allows for MAC Address Display and a variety of language font options.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a PFXGP4402WADW to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

PFXGP4402WADW Technical Specifications

Backlight LED (Replaceable During Repair)
Dimensions Width: 8.15\" Height: 6\" Depth: 1.5\"
Display Color 65,536 Colors (No blink)/16,384 Colors (Blink)
Display Type Wide TFT Type Color LCD
Features 2 COM Ports/2 USB Ports
Input Voltage DC24V
Manufacturer Pro-Face by Schneider Electric
NEMA Rating Enclosure Type 4 IP65 - Indoor Use Only
Part Number PFXGP4402WADW
Product Type Widescreen HMI
Resolution 800 x 480 dots (WVGA)
Screen Size 7 inches
Series GP4000E Series
Software Version GP-Pro EX

Product Description

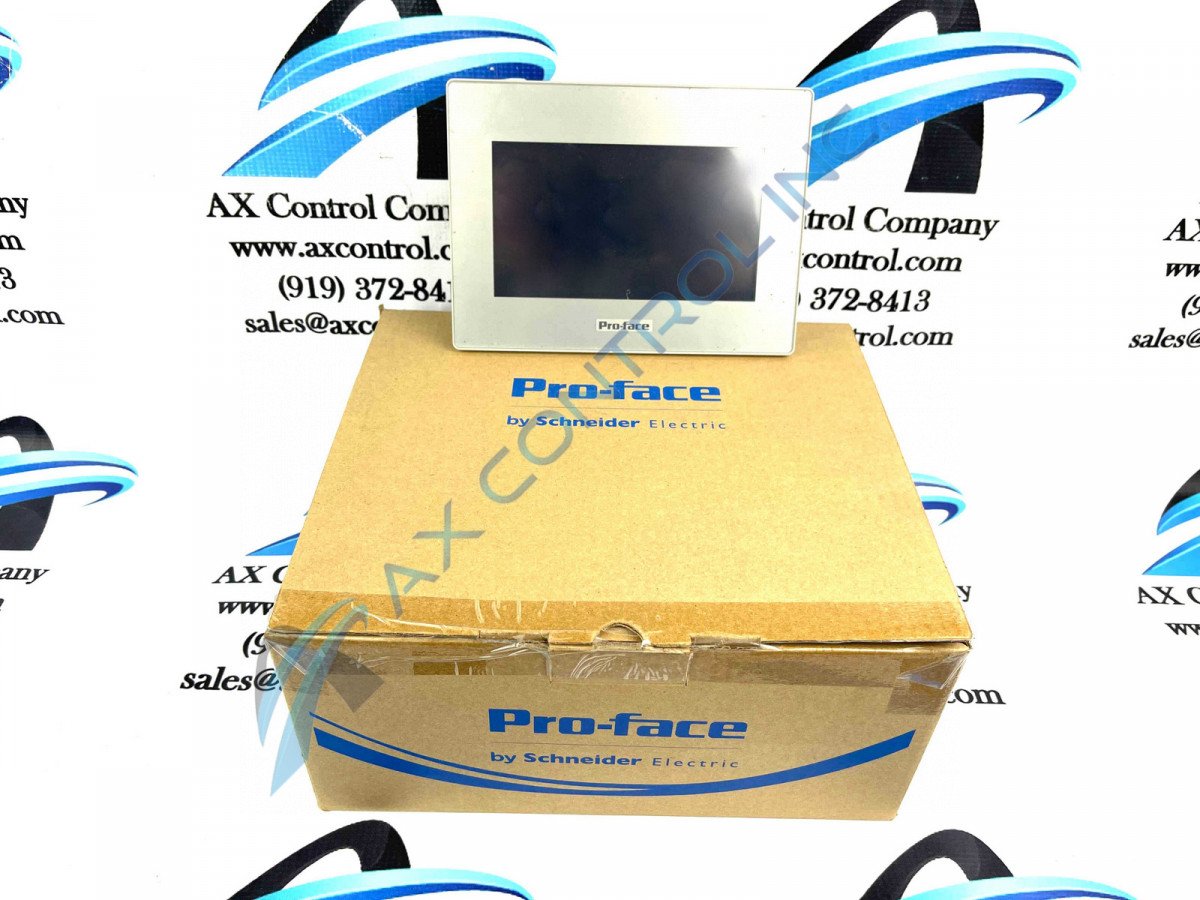

The PFXGP4402WADW is a widescreen 7-inch Pro face human-machine interface from the company’s GP4000 series.  This particular unit includes USB storage and supports MAC address display.

Like other human-machine interfaces in the GP4000 series, the PFXGP4402WADW is built around a TFT color LCD display.  The analog touchscreen offers up as many as 64,536 colors and is backlit by a white LED.  The resistive touchscreen has a 1024 x 1024 resolution.   Our company maintains many versions of the GP4000 series in our on-hand stock, so please ask our team about other units if this one does not meet your needs.

The PFXGP4402WADW widescreen HMI does not come equipped with separate SRAM backup memory.  However, the module is designed to use part of its internal memory for backup, allowing alarm history and filing data to be saved as part of the unit’s internal memory even when the HMI is turned off.

Please be aware that the PFXGP4402WADW model does not support 2-point touch on its touch panel.  If for some reason you simultaneously connect with the panel at two different locations at the same time, the panel will calculate the touch coordinate centered between those points.

The PFXGP4402WADW does not include any sort of internal fan and relies on air cooling to maintain proper operating temperature.  Please be sure to read through and understand all installation instructions including orientation and required gaps between equipment to ensure proper ventilation is maintained.  If you don’t have the Pro Face manuals or user guides that house these instructions, please talk to our staff when you place your order.  We are happy to assist with document replacement when we can.


Reviews For PFXGP4402WADW
Internal Review

The touch panel on the PFXGP4402WADW has a lifetime of 1 million or more touches or sweep gestures. This is a resistive film analog touch panel with 8 levels of brightness control and a backlit display. The backlight service life of 20,000 is for continuous operation at 25 degrees Celsius. Read associated manuals for options to extend backlight service life.--AX Control Tech team.

Repair Services For PFXGP4402WADW

Type Lead Time Price Action
Repair Service 1-2 weeks $449

Our highly skilled technicians can repair your PFXGP4402WADW. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
