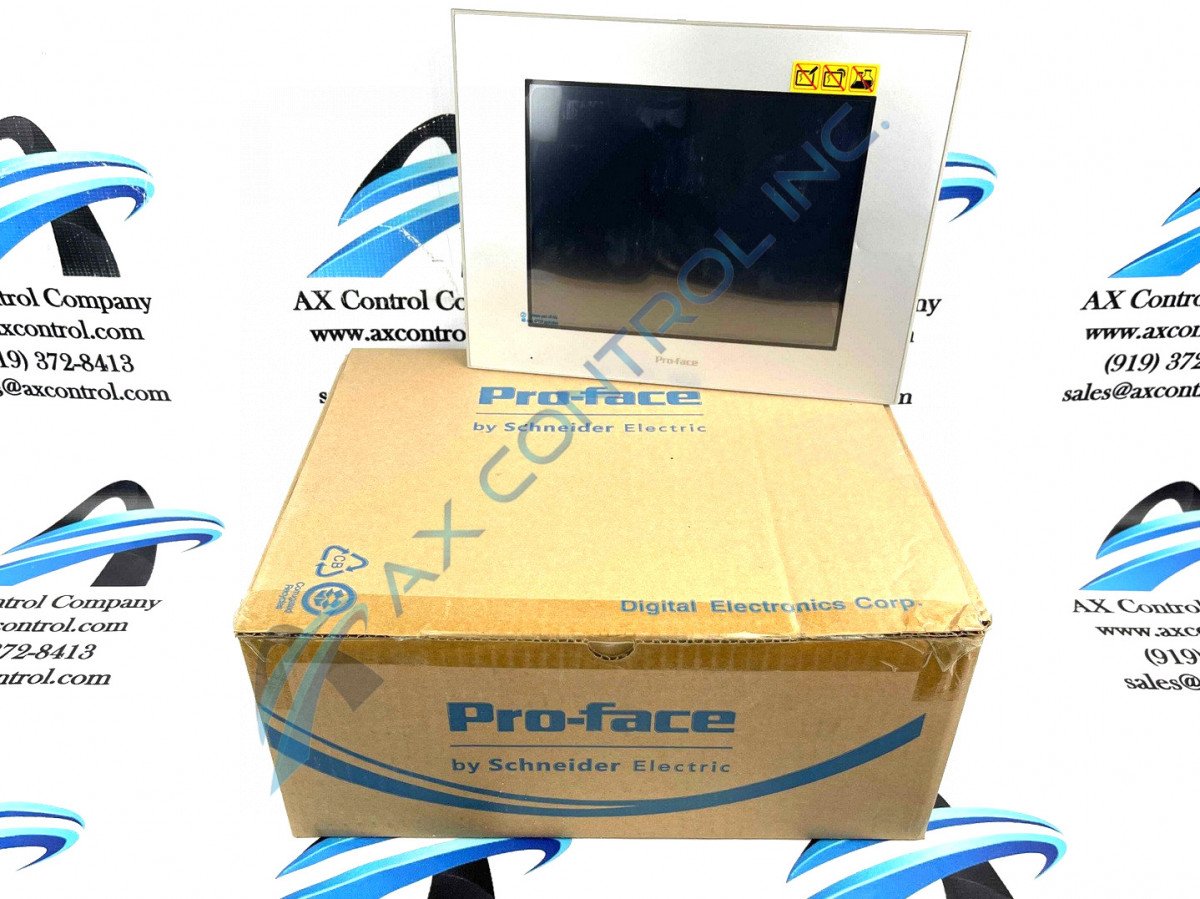

The GP-4501T Matrix HMI from Pro-face, now owned by Schneider Electric, is a reliable 10.4-inch TFT Display with 2 COM ports, a replaceable battery, and SD card slot

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a GP-4501T Matrix to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

GP-4501T Matrix

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
The GP-4501T Matrix HMI from Pro-face, now owned by Schneider Electric, is a reliable 10.4-inch TFT Display with 2 COM ports, a replaceable battery, and SD card slot

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a GP-4501T Matrix to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

GP-4501T Matrix Technical Specifications

Display Color 65,536 Colors
Display Type TFT Type Color LCD
Features Matrix Touch Panel
Global Code PFXGP4501TMD
Input Voltage 24VDC
Manufacturer Pro-Face
Resolution 640 x 480 dots
Screen Size 10.4-inch
Software Version GP-Pro EX

Product Description

The GP-4501T Matrix is a standard GP4000 human-machine interface module from Proface Xycom (now Schneider Electric.)  The GP4000 series was specifically created for ease-of-use and to offer reliable connectivity for interaction with other necessary equipment like bar code readers, PLCs, vision systems, and motion controllers.   The units are designed with energy-efficient displays that will reduce users’ on-site power consumption while providing fast communication and supporting two protocol drivers at one time.

The GP-4501T Matrix includes a 10.4-inch color TFT color touch panel with 16 software-adjustable levels of brightness and contrast.  These can also be changed through the touch panel itself.   The GP-4501T Matrix supports two USB ports, an SD card reader, as well as serial COM ports.  Data transfer up to 187.5 kbps is possible.   The unit has 512 kb of backup memory as well as 32 MB of programmable memory.

Since this unit does not include any kind of internal fan and relies on natural air circulation for cooling, it is imperative that it is installed to manufacturer specifications.   Make sure you read through manuals and user guides to understand where and how to mount the unit.   This unit operates in areas where the relative humidity remains below 90% and the temperature is zero to 55 degrees Celsius.   The GP-4501T Matrix is CE marked and UL listed.  Input voltage for this unit is 100-240 VAC.

AX Control ships most in-stock products the day we receive your purchase order.  Local customers can send their courier to our Wake County location to pick up their purchase for a faster turnaround.  It’s best to arrange this ahead of time to limit your wait time.


Reviews For GP-4501T Matrix
Internal Review

The ProFace GP 4501T Matrix HMI can also be listed by part number PFXGP4501TMA. The unit is CE marked and UL Cl 1 Div 2 listed. Natural air circulation maintains the unit's operating temperature. This increases the need for proper installation to maintain the unit within temperature limitations. Not recommended for use over 2000 meters altitude. --AX Control Tech team.

Repair Services For GP-4501T Matrix

Type Lead Time Price Action
Repair Service 1-2 weeks $673

Our highly skilled technicians can repair your GP-4501T Matrix. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
