GP-4303T

Product Description

General Information

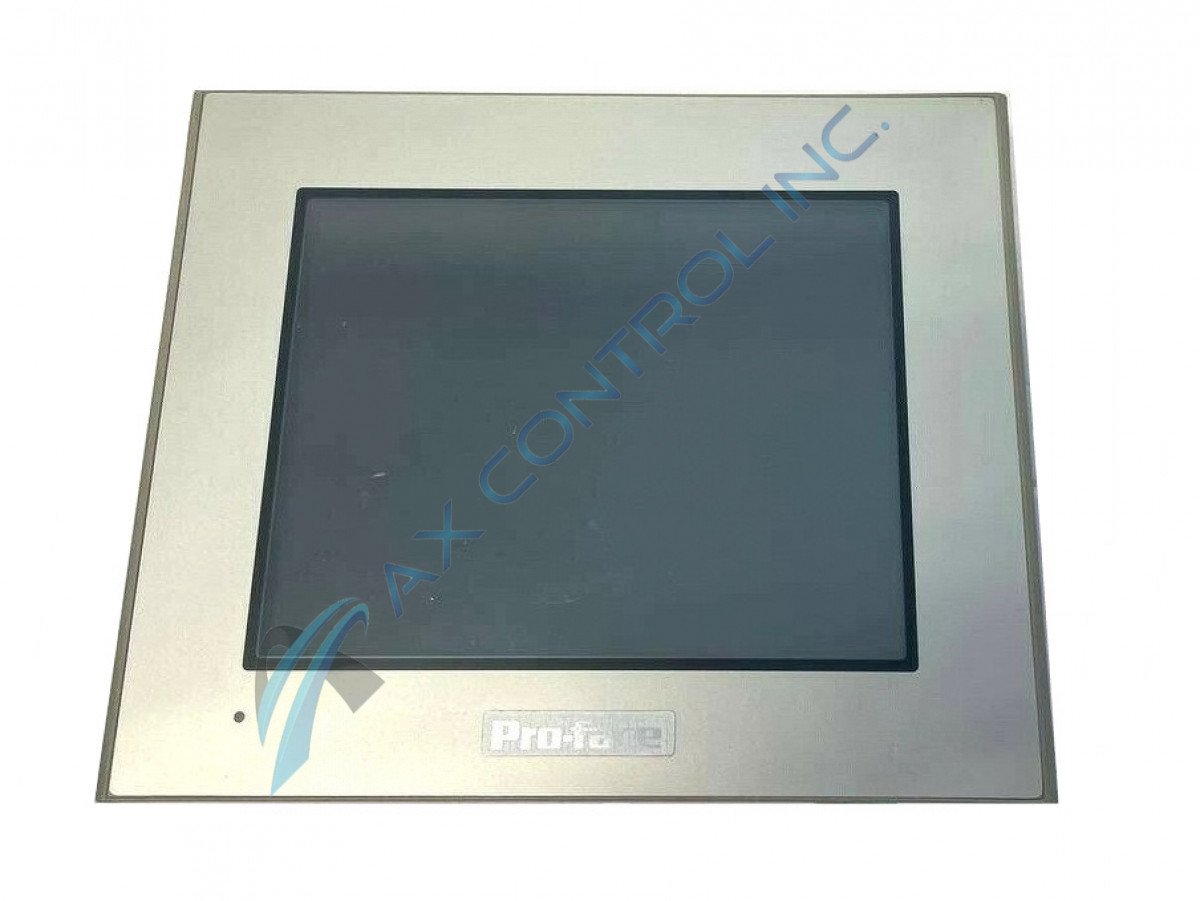

The GP-4303T is a Pro-face HMI operator interface. The GP-4303T is a 5.7-inch TFT Color LCD unit. The HMI communicates well with motion controllers, inverters, and vision systems with easy setup. The HMI has a reduced power consumption compared to many other HMIs using its built-in LED backlight panel and multiple dimmer settings.

HMI Specifications

The GP-4303T supports up to 65,536 colors. The unit offers sixteen levels of brightness control through either software or touchpanel. It supports several language fonts (some must download) and can expand character size up to eight times. The touch panel’s resistive film has a resolution of 1,024 x 1,024 and has a service life of one million touches or more.

The GP-4303T offers 16 MB of flash EPROM application memory and 132 KB (15,000 steps) in the logic program area. Additionally, the unit has a replaceable lithium battery for backup memory that supports 320 KB SRAM data backup. This unit comes with six different interface options including two serial COM ports (RS-232C and RS-485 isolated), an Ethernet LAN port, a USB-A port, a USB type B port, and an SD Card slot.

Installation Information

The GP-4303T requires DC 24V input voltage and has a power consumption of 10.5 W or less. This unit is cooled through natural air circulation, so be sure to follow installation instructions and ensure adequate space around it. When properly installed, the unit's housing has protection equivalent to IP65f, so it should be able to withstand environments up to that level of severity.
