Unit GLC2400-TC41-24V-M is a 7.4-inch Touch Panel Human-Machine Interface that features a color TFT display with a CCFL backlight rated at 50K hours.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a GLC2400-TC41-24V-M to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

GLC2400-TC41-24V-M

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
Unit GLC2400-TC41-24V-M is a 7.4-inch Touch Panel Human-Machine Interface that features a color TFT display with a CCFL backlight rated at 50K hours.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a GLC2400-TC41-24V-M to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

GLC2400-TC41-24V-M Technical Specifications

Input Voltage 24VDC
LCD Type TFT Type Color LCD
Manufacturer Pro-Face
Screen Size 7 inches
Series GLC2000 Series

Product Description

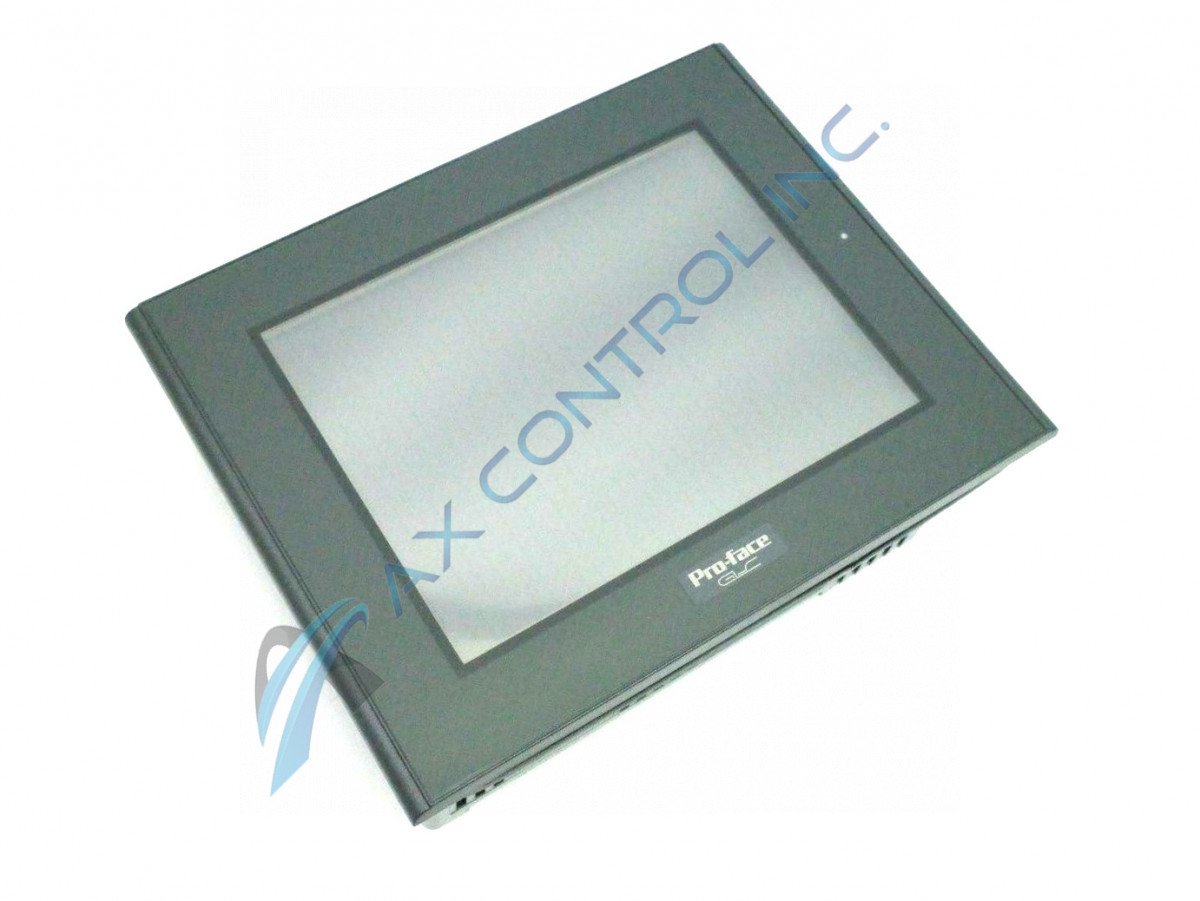

The GLC2400-TC41-24V-M from ProFace Xycom is a color 7.4 inch TFT touch panel HMI unit. The unit is capable of secured data collection and sharing like recipes trending, security, data logging, and alarm management. It can also provide data sharing via the Internet, its CF Card, or Ethernet connectivity. The HMI is built with multiple interface points including two COM ports that allow for connections to temperature controllers, PLCs, PCs, or barcode readers. The GLC2400-TC41-24V-M is designed with a 256-color display with a 3-speed blink. Color switching is done via software. The display is backlit by a replaceable CCFL with a service life of 50K hours or more. The HMI offers 4 levels of brightness adjustment through touch panel balancing. The unit s two COM ports have a minimum data transmission rate of 2400 baud. Other interfaces include a CF Card, an expansion interface, an Ethernet port, and a tool connector port. The HMI also has a Flex Network Interface that allows for the connection of distributed I/O modules. The GLC2400-TC41-24V-M should not be used around corrosive or flammable chemicals. Additionally, the LDC display should not be stored or operated in direct sunlight as this may cause the liquid crystal display s quality to deteriorate. Make sure the HMI is used within the proper temperature range and that it is not stored in an area that is too hot or too cold. Both extreme heat and cold can damage the LCD. More information about this unit can be found through original manuals or user guides from Pro-Face. These will provide detailed information on maintenance, installation, and operation.
Reviews For GLC2400-TC41-24V-M
Internal Review

Flaunting a bigger and better screen, along with a Video-mix Unit, the GLC2400-TC41-24V-M enables more realistic monitoring and control that will allow you to see every detail from your monitoring set up. - AX Tech

Repair Services For GLC2400-TC41-24V-M

Type Lead Time Price Action
Repair Service 1-2 weeks $577

Our highly skilled technicians can repair your GLC2400-TC41-24V-M. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
