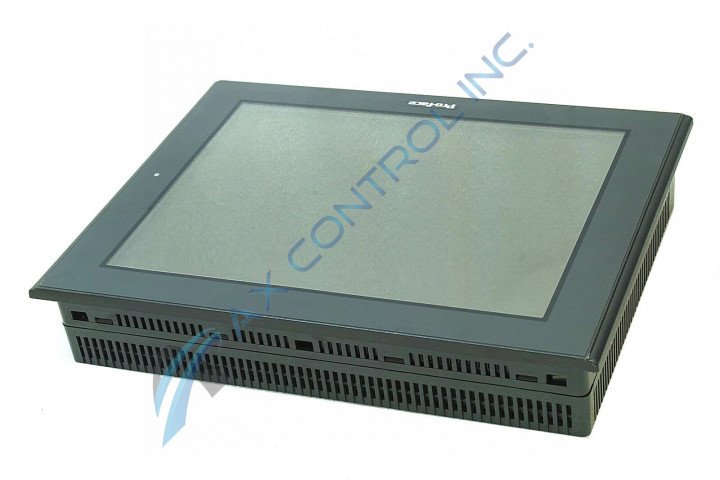

FP2600-T42-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The FP-2600 Series units are equipped with a 12.1 inch TFT type color LCD with a resolution of 800(H) X 600(W) pixels. This unit has superb brightness and can display 260,000 colors.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a FP2600-T42-24V to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

FP2600-T42-24V

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The FP-2600 Series units are equipped with a 12.1 inch TFT type color LCD with a resolution of 800(H) X 600(W) pixels. This unit has superb brightness and can display 260,000 colors.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a FP2600-T42-24V to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

FP2600-T42-24V Technical Specifications

Dimensions W317mm [12.48 in] x H243mm [9.57 in] x D58mm [2.28 in]
Display Type TFT color LCD
Features Passive Air Cooling
Input Voltage 24 VDC
Manufacturer Pro-Face
Model Number 3280033-04
Resolution 800 x 600 dots
Screen Size 12.1 inch
Standards Equivalent to IP65f (JEM 1030)
Weight 3.5kg (7.7lb) or less

Product Description

The FP2600-T42-24V unit includes a 317mm by 243mm glass panel from the front view. However, the side view is 227mm by 58m, while the top is 301mm. It comes with several screen display adjustments, which can be found in the main menu, such as; DIM, AGC, DSP, RST, and SAVE. The Dip Switch can be used for various functions. 1-1 switches between the USB and the RS-232C while 1-2 hides and displays the OSD. Several other functions can be explored.

The FP unit comes with several items in a single package:

  • A unit of installation gasket
  • A unit of the installation guide
  • 1 CD-ROM
  • 4 units of the installation bracket
  • A unit of USB cable strap

The FP units are designed for indoor use only. It comes with a full kit for easy installation. The manual offers a step-by-step guide to help. Other unit components can be replaced if damaged, such as the backlight. If you need to make a purchase or need help with installation, reach out to us here at AXConsult, and we will offer our service.

Reviews For FP2600-T42-24V
Internal Review

The FP2600-T42-24V unit's slim and compact design makes installation a snap. Also, market availability makes replacing or repairing this unit a breeze - AX Techs

Repair Services For FP2600-T42-24V

Type Lead Time Price Action
Repair Service 1-2 weeks $660

Our highly skilled technicians can repair your FP2600-T42-24V. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
