APL3700-TD-CD2G

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.80 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.80 (8)
  • Click a star to rate this product
Unit APL3700-TD-CD2G from Digital Electronic's Corporation Japan and Pro-face Series APL3700T of 15-inch Touchscreen PC with 262,144 Colors TFT Color LCD

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a APL3700-TD-CD2G to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

APL3700-TD-CD2G

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.80 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.80 (8)
  • Click a star to rate this product
Unit APL3700-TD-CD2G from Digital Electronic's Corporation Japan and Pro-face Series APL3700T of 15-inch Touchscreen PC with 262,144 Colors TFT Color LCD

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a APL3700-TD-CD2G to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

APL3700-TD-CD2G Technical Specifications

Display Type TFT Color LCD
Global Code PFXPL38xxKDxxxxx
Input Voltage DC24V
Keypad/Display Resistive Film (Analog)
Model Number APL3700-TD
Resolution 1024 x 768 pixels (XGA)
Screen Size 15 inch

Product Description

The APL3700-TD-CD2G from Pro-face is a 15-inch industrial-level touch-panel PC. It has a Windows XP Pro operating system loaded onto an Intel Core Duo 2.0 GHz CPU. The APL3700-TD-CD2G has a solid-state drive designed for increased realiability and faster data access. If necessary, the APL3700-TD-CD2G allows the user to hotswap an HDD unit while the unit is running and powered up. The APL3700-TD-CD2G also is designed with software mirror functionality which writes user data to 2 HDDs at the same time without any load to the CPU. This allows for a perfect data backup without an extra step.

The APL3700-TD-CD2G comes with 1GB memory standard but is expandable to 4GB. It has 64MB of video memory. The screen is a 15-inch TFT LCD 1024 x 768 pixel XGA display with 262,144 possible colors. Resistive film is used for the touchscreen.

The APL3700-TD-CD2G has the following available port connections:

  • 4 Serial Com Ports. RS-232C, D-sub 9-pin

  • 5 USB Ports 2.0 compatible rear 4 ports front 1 port Disable/enable selectable

  • Rear RAS connector with 9-pin socket

  • 2 LAN RJ-45 type modular jack connector 8-pins

The APL3700-TD-CD2G comes with 2 PCI slots, a DVD-RW drive, and a 250 GB Hard drive. It is designed for DC24V input. The APL3700-TD-CD2G is cooled by forced air cooling via a system fan and a CPU fan. It is important for the user to leave sufficient space for air circulation during installation. Operating temperature for this unit is between 0 to 50 degrees Celsius, 10 to 90% non-condensing humidity.

  • APL3700-TD-CD2G-2P
  • APL3700-TD-CD2G-4P
Reviews For APL3700-TD-CD2G
Internal Review

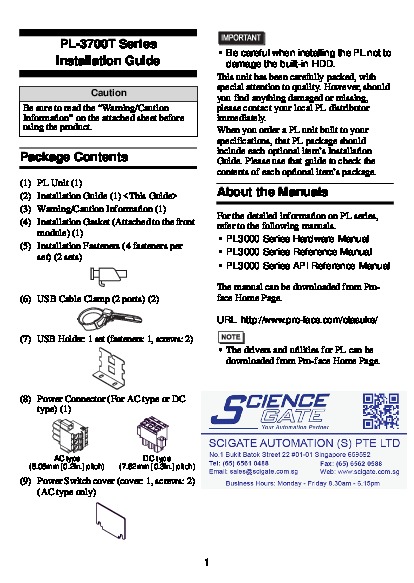

The APL3700-TD-CD2G offers solid-state drive design. This increases reliability and allows for faster data access. This ruggedized PC offers you the ability to have a ruggedized computer on site that can double as a touch panel HMI whenever needed. See associated Proface Manuals for more information. --AX Control Tech Team.

Repair Services For APL3700-TD-CD2G

Type Lead Time Price Action
Repair Service 1-2 weeks $633

Our highly skilled technicians can repair your APL3700-TD-CD2G. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
