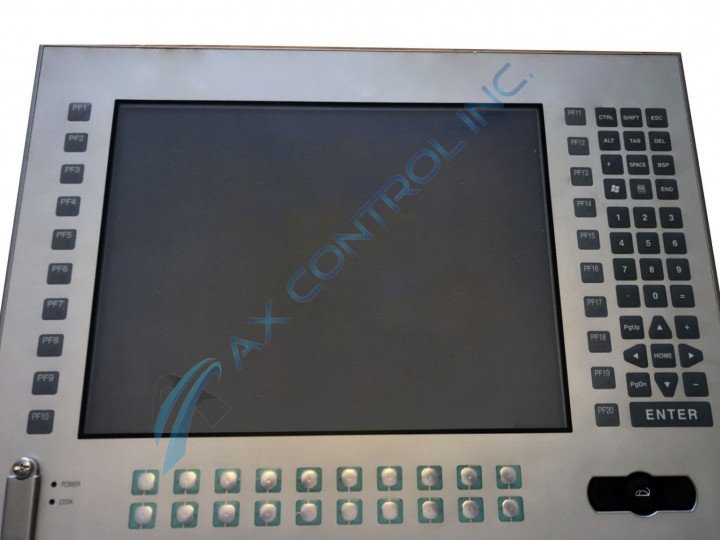

Schneider Electric Pro-face APL3600-KD-CD2G 12.1 inch Keypad Mouse Touch-Panel PC Supports Windows XP Pro TFT Color LCD Display



Sell Surplus: Have a APL3600-KD-CD2G to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: APL3600-KD-CD2G
  • Manufacturer: Pro-face Xycom
  • Series: APL3000 Series

APL3600-KD-CD2G Technical Specifications

Display Type TFT Type Color LCD
Global Code PFXPL36xxKDxxxxx
Input Voltage DC24V
Keypad/Display 74 Key Switches
Model Number APL3600-KD
Resolution 800 x 600 pixels (SVGA)
Screen Size 12.1 inch

Product Description

APL3600-KD-CD2G is a 12.1 inch panel computer with a keypad that is manufactured for the APL3600 series that is manufactured by Proface. The power supply is 24 VDC. The CPU is a CoreDuo 2.0 GHz processor. The atmosphere for this unit must be free of corrosive gases, and the temperature must not fall below 0°C or rise above 50°C. Optional items for this PC include the DIM module, the hard disk unit, the SSD unit, the CF card, the USB front cable, the DVI-I-RGB conversion cable, the DVI-D/RGB branch cable, the panel-cut conversion attachment brackets, the screen protection sheet, the software mirroring utility, and the right-angle DC and AC power supply connectors.

The PC error/alert monitoring features include the power voltage alarm, the cooling fan RPM alarm, the internal temperature alarm, the watchdog timer timeup, the soft mirror, the backlight alarm, the SMART alert, and the battery alarm. The various processing functions include the LED indicator, the pop-up message output, the buzzer output, system shutdown, system hibernation, and system reset. When the green LED is lit, the power is ON and the PC is operating normally. When the green LED is flashing, the system is not running and is in soft OFF mode. When the Orange LED is lit, a RAS error/alert occurred and the LED is enabled via the System Monitor Property. When the orange LED is blinking, a backlight burnout is detected. When the LED is not lit, the PC power is off.

Reviews For APL3600-KD-CD2G

Internal Review

Your operation and maintenance of this Pro-face touch panel PC will be simpler if the unit is properly installed with at least 50mm of clearance from any adjacent structures or nearby equipment. Be sure to leave at least 120 mm for the connecting cable's curve.--AX Control Tech Team

  • APL3600-KD-CD2G-2P-1G-EM2G
  • APL3600-KD-CD2G-2P-1G-EM2G-D
  • APL3600-KD-CD2G-2P-1G-NO16S
  • APL3600-KD-CD2G-2P-1G-XM16S
  • APL3600-KD-CD2G-2P-1G-XM250
  • APL3600-KD-CD2G-2P-1G-XM250-M
  • APL3600-KD-CD2G-2P-2G-EM2G
  • APL3600-KD-CD2G-2P-2G-EM2G-D
  • APL3600-KD-CD2G-2P-2G-EM2GNO250
  • APL3600-KD-CD2G-2P-2G-NO16S
  • APL3600-KD-CD2G-2P-2G-XM16S
  • APL3600-KD-CD2G-4P-1G-EM2G
  • APL3600-KD-CD2G-4P-1G-EM2G-D
  • APL3600-KD-CD2G-4P-1G-NO16S
  • APL3600-KD-CD2G-4P-1G-XM16S
  • APL3600-KD-CD2G-4P-1G-XM250
  • APL3600-KD-CD2G-4P-2G-EM2G
  • APL3600-KD-CD2G-4P-2G-EM2G-D
  • APL3600-KD-CD2G-4P-2G-NO16S
  • APL3600-KD-CD2G-4P-2G-XM16S
