Parker Eurotherm ControlNet LINK Card L5354

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a L5354 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

L5354

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product

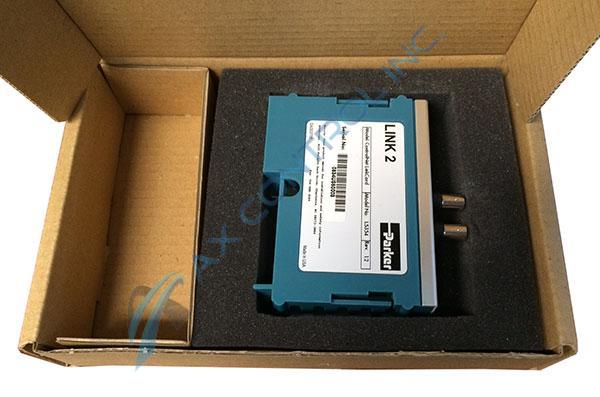

Parker Eurotherm ControlNet LINK Card L5354

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a L5354 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

L5354 Technical Specifications

Dimensions 4.72H x 1.25W x 3.54D inches, 0.16lbs
Manual Number HA470733
Manufacturer Eurotherm Parker SSD
Model ControlNet Communications Interface
MPN L5354
Product Type Communications Unit
Series SSD Link / Eurotherm Drives
Software DSD
Voltage 5 VDC

Product Description

L5354

One of the many standard types of open protocol networks, ControlNet directly connects to a ControlNet master device, such as the L5354 ControlNet LINK Card, manufactured and produced originally by a subsidiary of the Parker Hannifin Corporation: Parker Eurotherm SSD.

The L5354 LINK Card is a part of the family of LINK 2 products and when either an L5300 LINK Rack or L5392 LINK Station is installed with ControlNet software tools, the L5354 LINK Card is able to provide a gateway connecting the space between either the LINK Rack or LINK Station and a LINK Control system.

With the current operating system, the L5354 will be able to be controlled by a ControlNet master server. However, a programmable logic controller including an integrated scanner would also be a compatible method of using the L5354.

This model is outfitted with a number of useful, standard hardware elements, such as a pair of coaxial Bayonet Neill–Concelman (BNC) frequency connector terminals, and a pair of LED lights. These two LED light are used to signal to users about any changes in the module’s status and power levels, and on the status of the network connectivity and communications. Both of the LEDs are bi-colored with red and green lights, and many color combinations and steady or flashing appearances are used to depict specific problems.

The AX Control staff are available if there are any issues after shipment, and if you have any broken inventory that needs to be disposed of, we are willing to get rid of it in an environmentally safe way and will benefit you as a part of our exchange credit program.

Frequently Asked Questions about L5354

What are some features included in the L5354?
The L5354 includes features such as LED indicators, function block inputs/outputs, and automatic baud rate selection.
What Linkrack is the L5354 compatible with?
The L5354 is a Linkcard that is plugged into a Linkrack. The L5354 is compatible with the linkstation L5392 or the Linkrack L5300.
How do I installed the L5354?
To install the L5354, follow these simple instructions.
1. Take off the back cover of the Linkrack or station.
2. Insert the L5354 into a slot on the Linkrack or station.
3. Place the back cover back on and complete all wire connections.
  • L5354-Issue 1
  • L5354-Issue 2
  • L5354-Issue 2.1
  • L5354-Issue 3
  • L5354-Rev. 2.0
  • L5354-Rev. 2.1
  • L5354-Rev. 3.0
  • L5354-Rev. 4.1

Repair Services For L5354

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your L5354. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

L5354 Manuals, White Papers, Data Sheets, and Troubleshooting
