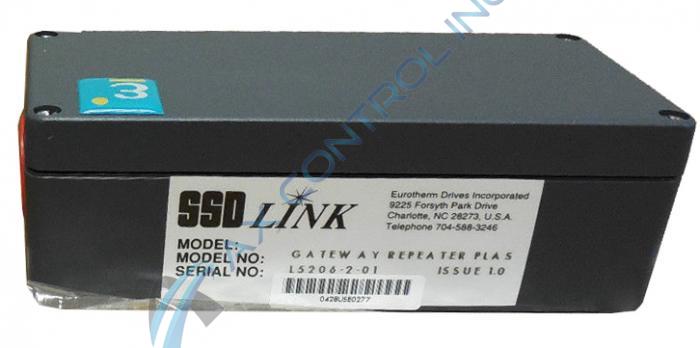

Parker Eurotherm Link Repeater L5206-2-01

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a L5206-2-01 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: L5206-2-01
  • SKU: L5206201PES
  • Manufacturer: Parker Eurotherm SSD
  • Series: Link Hardware

L5206-2-01 Technical Specifications

Manufacturer Eurotherm Parker SSD
Series SSD Link / Eurotherm Drives
MPN L5206-2-01
Product Type Link Gateway Repeater
Model Link Gateway Repeater
Manual Number HA351222A
Voltage 20/28VDC
Dimensions 6.89in x 3.15in x 2.32in, 1.35lbs

About the L5206-2-01

L5206-2-01

Developed and built by Parker Eurotherm SSD, the L5206-2-01 is a LINK Gateway Repeater model, built for data intake and transfer between fiber optic networks and LINK Gateways, and is meant to be connected together  by a shielded cable to the repeater’s DB25 connector port.

The L5206-2-01 is kept safe by an IP 66 grade NEMA 4 frame casing, designed to handle outdoor hazards and debris that may cause damage when unprotected, and built to protect operators from any injury that may occur from a damaged product.

This model is suitable for mounting to both indoor and outdoor equipment enclosures or in unprotected environments. The L5206-2-01 supports the transmission of two LINK channels: either a primary and secondary pair of channels, or a pair of discrete primary channels.

The L5206-2-01 model has standard technical specifications, such as an operating temperature range from negative 10 degrees Celsius to 70 degrees Celsius, and requires a power intake ranging from 20 to 28 DCV, though 24 DCV is a nominal average. It has a current consumption of 55 milliamperes.

The model’s physical dimensions include a height of 175 millimeters, or 6.89 inches, with a width of 80 mm, or 3.15 in, and a standard physical depth of 59 mm, or 2.32 in. This model weighs a standard 0.61 kilograms, or 1.35 pounds.

AX Control offers a comprehensive warranty of up to 3 years, and our team is available for any questions on pricing, repairs, and/or recycling irreparable products.

Frequently Asked Questions about L5206-2-01

What type of environment should the L5206-2-01 be installed in?
The L5206-2-01 is held in a NEMA 4 enclosure which helps protect it in any environment it is placed in. The NEMA 4 case allows the L5206-2-01 to be installed in a harsh climates or outside the equipment enclosure.
What happens when the L5206-2-01 is connected?
When the L5206-2-01 is connected to the Link repeater, the L5206-2-01 get added to the Link network and data is processed through it.
Does AX Control have the manual for the L5206-2-01?
AX Control has the manual for the L5206-2-01 which describes the function of the device, technical specifications, and installation process of the device.
  • L5206-2-01-Issue 1
  • L5206-2-01-Issue 2
  • L5206-2-01-Issue 2.1
  • L5206-2-01-Issue 3
  • L5206-2-01-Rev. 2.0
  • L5206-2-01-Rev. 2.1
  • L5206-2-01-Rev. 3.0
  • L5206-2-01-Rev. 4.1
