GV6K-U6R-NK

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The GV6K-U6R-NK Gemini GV6K Servo Drive Controllers by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-U6R-NK to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-U6R-NK
SKU: PES-59237

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty

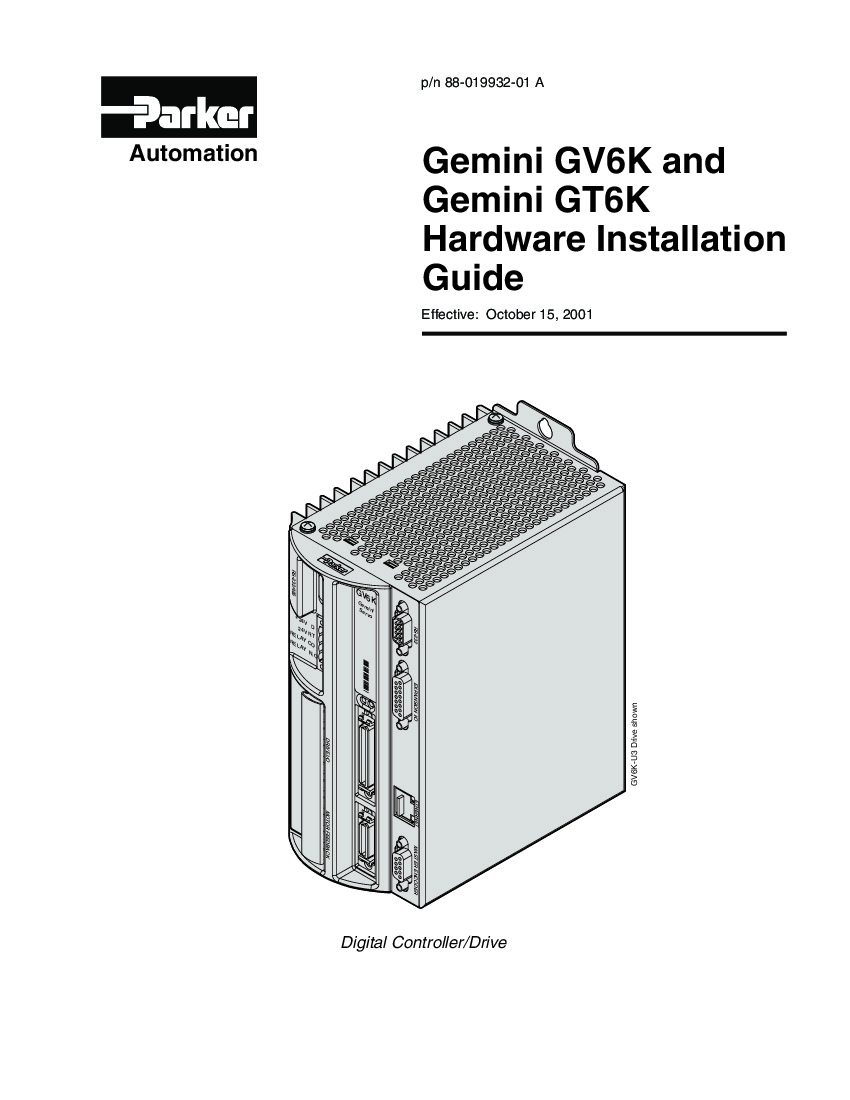

Manuals

GV6K-U6R-NK Technical Specifications

Part Number	GV6K-U6R-NK
Series	Gemini GV6K Servo Drive Controllers
Manufacturer	Parker
Still Air Temperature	45 degrees Celsius
Moving Air Temperature	50 degrees Celsius
Voltage Input	Universal Voltage
Weight	5.5 lbs
PWM	8, 16, or 20 kHz
Serial Ports	RS232/RS485; RS232
Manual Number	88-019932-01 A

About the GV6K-U6R-NK

The GV6K-U6R-NK is a Gemini GV6K Servo Drive Controller from Parker. The GV6K-U6R-NK offers an advanced system and design, with this unit operating as a standalone drive. The GV6K-U6R-NK can also be used with any ASCII based serial device, which gives users more freedom to connect external devices with the Gemini GV6K unit. Some of the ASCII devices include HMI panels and PLC ASCII modules.

GV6K-U6R-NK Hardware Tips and Specifications

There are a number of motors that the GV6K-U6R-NK can be used with. The unit is compatible with both brushless servo motors and linear servo motors. Some of the Compumotor motor series that the GV6K-U6R-NK is compatible with are:

SM Series
NeoMetric Series
LXR Series
SL Series

The GV6K-U6R-NK can easily be configured using the RS232/RS485 port that the unit has. The GV6K-U6R-NK also has an RS232 (3 wire) port, as well as an Ethernet communications port. There are onboard I/O points, including both digital and analog points. Along with the onboard points, there are expandable I/O points on the unit that allow for up to 256 additional discrete I/O points.

The GV6K-U6R-NK has several protective features. Some of these features are:

Current foldback protection
Drive undervoltage protection
Inrush current protection

Frequently Asked Questions about GV6K-U6R-NK

How many digital inputs does the GV6K-U6R-NK have?

The GV6K-U6R-NK has 8 digital inputs, with 5 programmable and 3 with programmable limits.

Does the GV6K-U6R-NK have multitasking functionalities?

Yes, the GV6K-U6R-NK does have a multitasking functionality. The unit can run up to 10 programs at the same time.

Reviews For GV6K-U6R-NK

Internal Review

(5.0)

The GV6K-U6R-NK can perform at an advanced level due to the unit being in the Gemini GV6K series. The unit has more functions than other Gemini series, including S-curve profiling and scaling. These control features allow for users to only need one system, given the number of features that the GV6K-U6R-NK has. The GV6K-U6R-NK is a standalone unit. - AX Control Lead Technician

Repair Services For GV6K-U6R-NK

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1456

Our highly skilled technicians can repair your GV6K-U6R-NK. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
