What are the LEDs for on the GV6K-U6E?

The LEDs can indicate drive status, firmware, download, and 24 VDC control power active.

Does the GV6K-U6E have programmable inputs?

Yes, the GV6K-U6E has 8 programmable inputs. Three of these inputs have limited programming available.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Parker Eurotherm SSD Gemini GV6K Servo Drive Controllers GV6K-U6E

About | Product Specifications | FAQs

GV6K-U6E

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The GV6K-U6E GV6K Drive Controller by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-U6E to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-U6E
SKU: PES-59233

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty

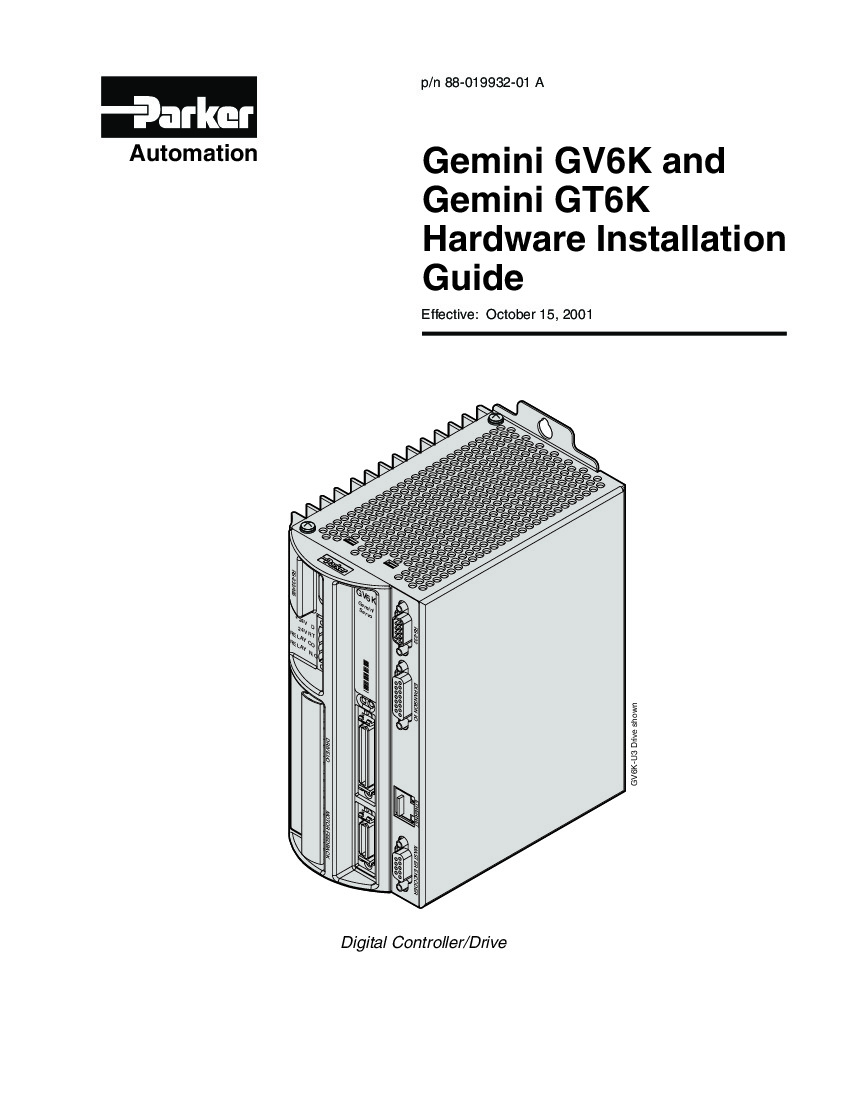

Manuals

GV6K-U6E Technical Specifications

Part Number	GV6K-U6E
Manufacturer	Parker
Series	Gemini GV6K Servo Drive Controllers
Voltage Input	Universal Voltage
PWM	8, 16, or 20 kHz
Still Air Temperature	45 degrees Celsius
Moving Air Temperature	50 degrees Celsius
Humidity Rating	0 to 95% non condensing
Serial Ports	RS232/RS485; RS232
Manual Number	88-019932-01 A

About the GV6K-U6E

The GV6K-U6E was manufactured by Parker as part of the Gemini GV6K Servo Drive Controllers series. The GV6K-U6E comes with complete position based following, as well as electronic cam profiling. There are a number of benefits to using the GV6K-U6E and the GV6K series.

The GV6K-U6E is a standalone drive/controller, which eliminates the need for multiple units. The GV6K-U6E also has a universal voltage rating, which is rated at 120/240 VAC. The GV6K-U6E can be programmed using the RS232/485 port with the Compumotor Motion Planner software package.

The GV6K series offers a number of protective features. Some of these features are:

Current-foldback protection
Regeneration protection
Drive and motor overtemperature protection
Inrush current protection

The GV6K-U6E also has a 24VDC Keep Alive Circuit that powers the controller section and maintains vital position and controller information. The circuit runs on a 24 VDC supply, rather than AC power.

Reviews For GV6K-U6E

Internal Review

(5.0)

The GV6K-U6E offers advancements from the Gemini GV and Gemini GV6 series. This unit comes with an Ethernet port that is not offered with the earlier Gemini series, giving this unit more communication capabilities. The GV6K-U6E also has an error log that records the last 10 errors from the unit. This feature comes with a time stamp that allows users to see when and how the error occurred. - AX Control Lead Technician

Repair Services For GV6K-U6E

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1269

Our highly skilled technicians can repair your GV6K-U6E. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
