GV6K-U3E-NK

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The GV6K-U3E-NK Gemini GV6K Servo Drive Controller by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-U3E-NK to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-U3E-NK
SKU: PES-59231

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty
Manuals

GV6K-U3E-NK Technical Specifications

Part Number	GV6K-U3E-NK
Manufacturer	Parker
Series	Gemini GV6K Servo Drive Controllers
Phase Type	Single Phase
Peak Current	7.5A Peak
Feedback Option	Encoder Option
Bus Voltage	170/340 VDC
Humidity Rating	0 to 95% non condensing
Serial Ports	RS232/RS485; RS232
Country of Manufacturer	United States

About the GV6K-U3E-NK

The GV6K-U3E-NK is from the Gemini GV6K Servo Drive Controllers series. This series was manufactured by Parker as another line in the Gemini family. The GV6K-U3E-NK offers advanced control features, as well as greater flexibility in distributed-control applications.

The GV6K-U3E-NK comes standard with a range of protective features. Some of these features are:

Short circuit protection
Drive and motor overtemperature protection
Regeneration protection
Inrush current protection

The GV6K-U3E-NK also has an error log that records the 10 most recent errors with a time stamp of each event. The Gemini GV6K units have diagnostic LEDs that show drive status, as well as firmware, download, and 24 VDC control power active.

The GV6K-U3E-NK can be connected to external devices using the ports that it has been equipped with. Several of these ports are serial communication ports, like the RS232 port. The GV6K-U3E-NK also offers connectivity to ASCII based devices, including HMI panels and PLC modules.

Frequently Asked Questions about GV6K-U3E-NK

Is there a manual for the GV6K-U3E-NK?

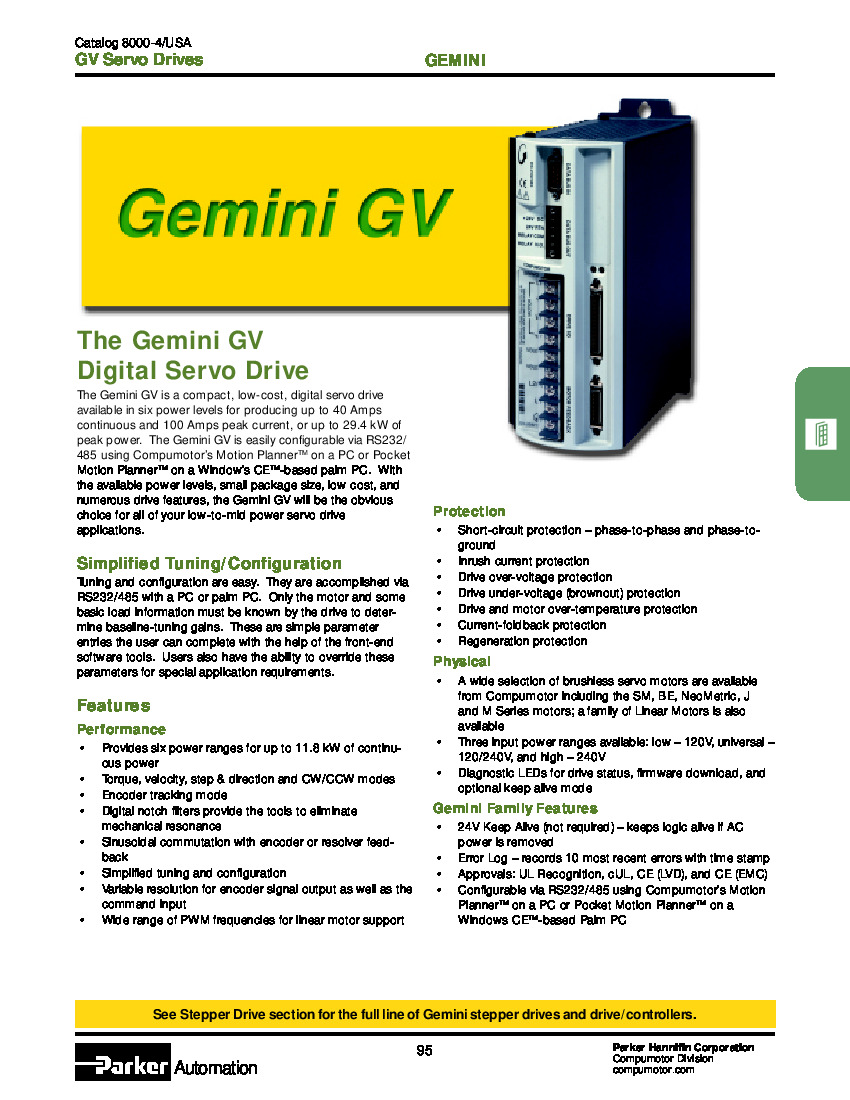

Yes, there are two important manuals for the GV6K-U3E-NK. There is a hardware installation manual and a data sheet that can be used for the Gemini GV6K series as a whole. These documents can be found under the "Manuals" tab on this part page.

What Ethernet communication port does the GV6K-U3E-NK have?

The GV6K-U3E-NK has a 10 Base-T, 10 Mbps twisted pair Ethernet port.

Reviews For GV6K-U3E-NK

Internal Review

(5.0)

The GV6K-U3E-NK has up to 300KB of program storage, which allows users to store plenty of data. The unit is also capable of running up to 10 programs at the same time. This is done through the multitasking functionality. The GV6K-U3E-NK can be configured and programmed easily using the RS232/485 port that is equipped on the unit. - AX Control Lead Technician

Repair Services For GV6K-U3E-NK

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1156

Our highly skilled technicians can repair your GV6K-U3E-NK. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
