Does the GV6K-U12R-NK offer overvoltage protection?

Yes, the GV6K-U12R-NK offers both under and overvoltage protection.

How much storage does the GV6K-U12R-NK have?

The GV6K-U12R-NK has 300 KB of program storage.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Parker Eurotherm SSD Gemini GV6K Servo Drive Controllers GV6K-U12R-NK

About | Product Specifications | FAQs

GV6K-U12R-NK

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The GV6K-U12R-NK Drive Controller by Parker

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-U12R-NK to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-U12R-NK
SKU: PES-59229

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty

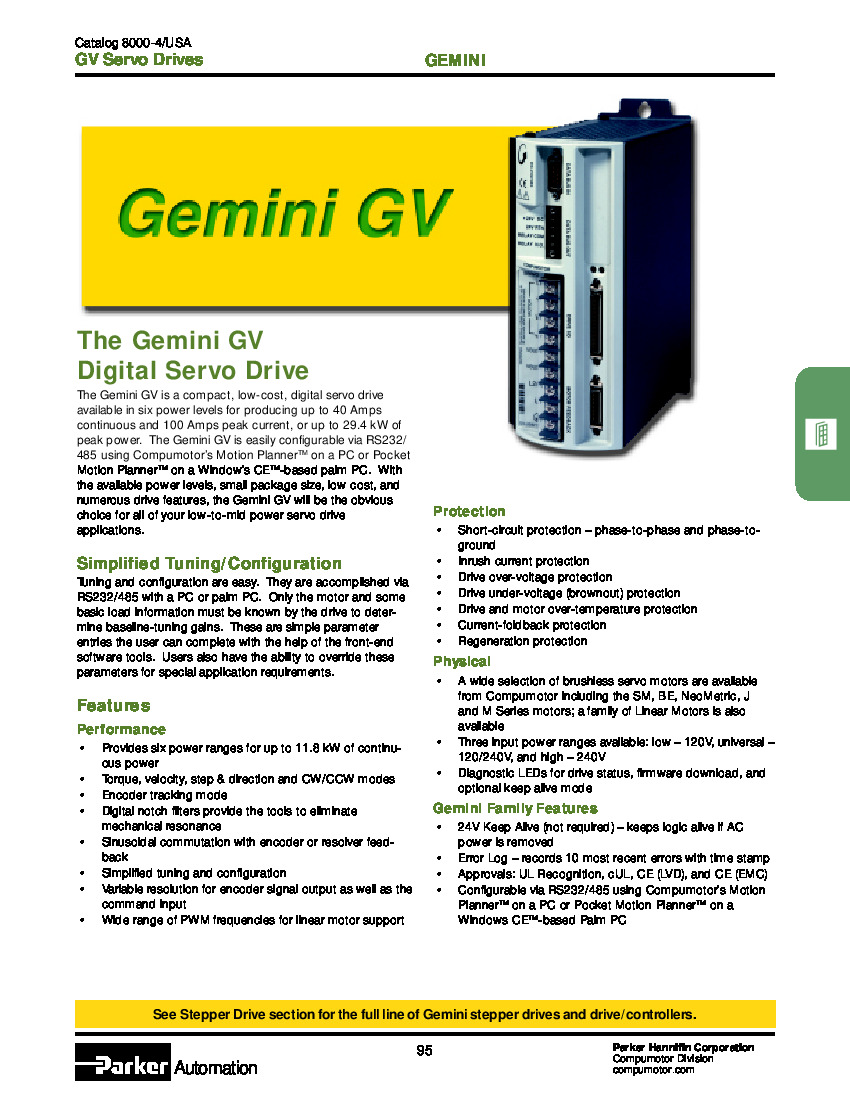

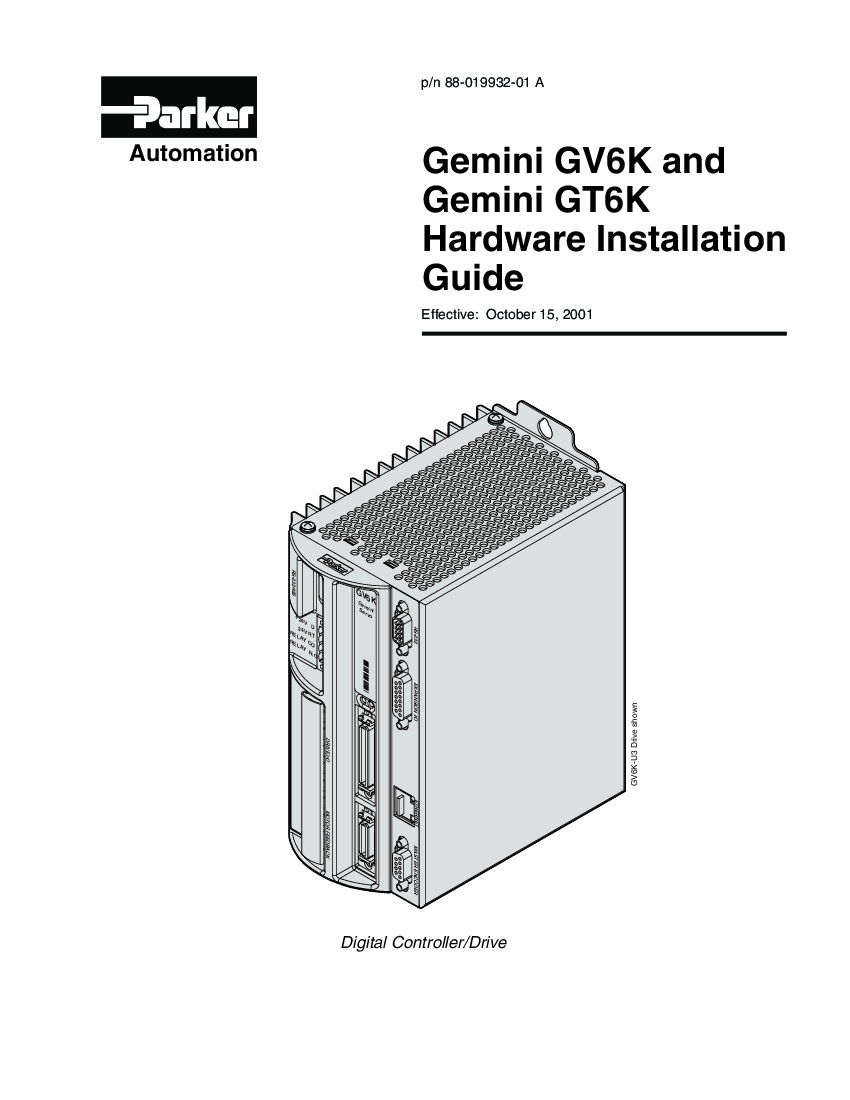

Manuals

GV6K-U12R-NK Technical Specifications

Part Number	GV6K-U12R-NK
Manufacturer	Parker
Series	Gemini GV6K Servo Drive Controllers
Feedback Option	Resolver
Peak Current	30A Peak
Continuous Current	12A
Still Air Temperature	45 degrees Celsius
Moving Air Temperature	50 degrees Celsius
Weight	5.6 lbs
Ethernet Type	10 Base-T

About the GV6K-U12R-NK

The GV6K-U12R-NK is from the Gemini GV6K Servo Drive Controllers series. The series was manufactured by Parker as a new line from the Gemini family. The GV6K-U12R-NK is a standalone drive, as are all of the Gemini GV6K units.

The GV6K-U12R-NK has several types of ports built into it. These ports allow for external devices to be connected to the GV6K-U12R-NK. Some of these ports are:

RS232 port
RS232/485 port
Ethernet port
Digital and analog inputs

There are also expandable serial I/O points and expandable Ethernet I/O points that allow for additional connections to be made. The GV6K-U12R-NK also offers comprehensive program monitoring and status and diagnostic features.

The GV6K-U12R-NK should be stored in an environment that ranges from -40 to 85 degrees Celsius. There should also be a humidity rating from 0 to 95% non-condensing. All of this information can be found in the manuals for the Gemini GV6K series. These documents are located under the "Manuals" tab on this part page.

Reviews For GV6K-U12R-NK

Internal Review

(5.0)

The GV6K-U12R-NK has a number of control features that give the unit the advanced motion control capabilities that it has. One of these features is multitasking capabilities. The unit can run up to 10 programs at the same time, which allows users to complete multiple projects at once. The GV6K-U12R-NK also has a full scaling functionality. - AX Control Lead Technician

Repair Services For GV6K-U12R-NK

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1236

Our highly skilled technicians can repair your GV6K-U12R-NK. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
