What are some motors that the GV6K-U12R is compatible with?

The GV6K-U12R is compatible with several Compumotor series, including the SM Series, M Series, and SL Series.

How many inputs does the GV6K-U12R have?

The GV6K-U12R has 8 digital inputs and 1 analog input.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Parker Eurotherm SSD Gemini GV6K Servo Drive Controllers GV6K-U12R

About | Product Specifications | FAQs

GV6K-U12R

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The GV6K-U12R Servo Drive Controller by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-U12R to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-U12R
SKU: PES-59228

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty
Manuals

GV6K-U12R Technical Specifications

Part Number	GV6K-U12R
Series	Gemini GV6K Servo Drive Controllers
Manufacturer	Parker
Phase Type	Single Phase
Voltage Input	Universal Voltage
Bus Voltage	170/340 VDC
Peak Power	8.75 kW
Storage Temperature	-40 to 85 degrees Celsius
PWM	8, 16, or 20 kHz

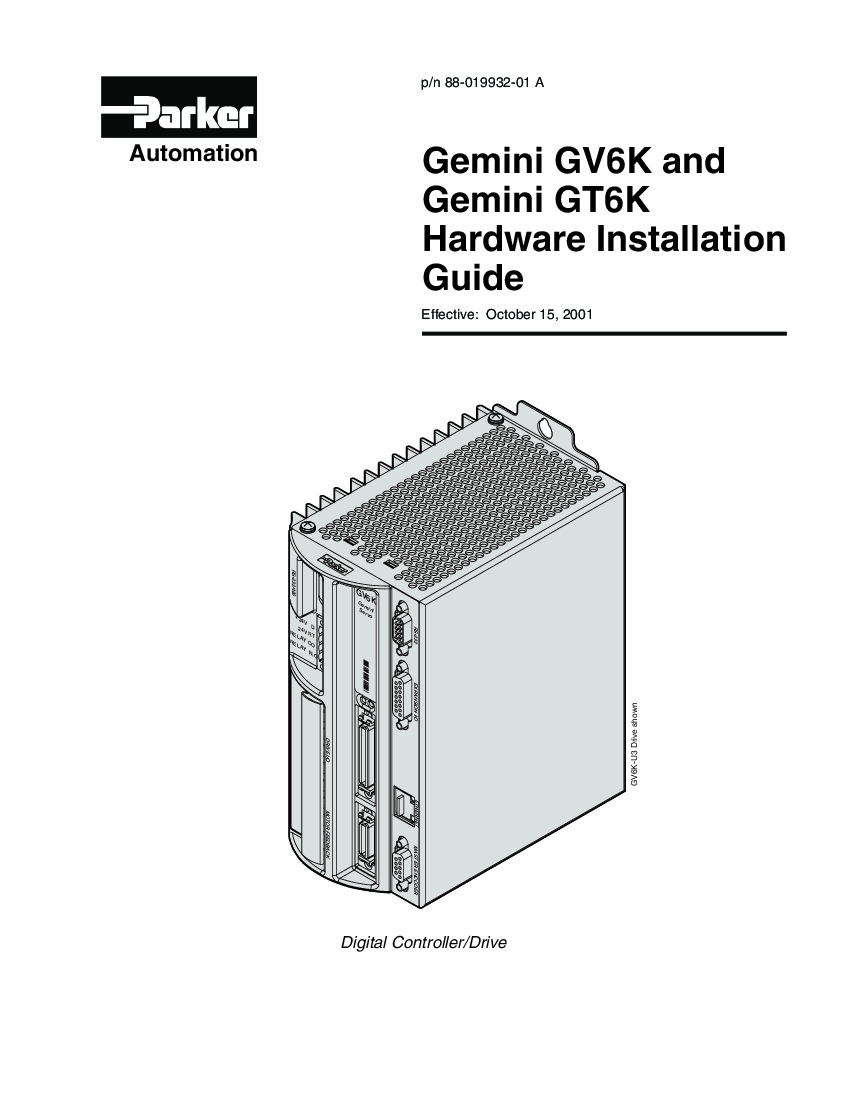

Manual Number	88-019932-01 A

About the GV6K-U12R

The GV6K-U12R is a Gemini GV6K Servo Drive Controller by Parker. The Gemini GV6K series is more advanced than previous Gemini series. This is in part due to the 6K Controller features that the series is built with. The series has greater flexibility and more advanced motion control.

GV6K-U12R Hardware Tips and Specifications

The GV6K-U12R has a number of different features that are important to the functionality of the controller. One of these features is the standalone nature of the controller, which allows users to avoid needing multiple units. Some of the other features of the GV6K-U12R are:

300 KB program storage
Two serial communication ports
Full scaling functionality
Error log

The error log allows for the last 10 events to be recorded and saved with a time stamp on the controller. The GV6K-U12R also has multitasking capabilities, which allows for up to 10 programs to run simultaneously.

The GV6K series also has protective features when the controller is running. Some of the protections that the series offers are:

Regeneration protection
Drive under-voltage protection
Short circuit protection
Inrush current protection

Reviews For GV6K-U12R

Internal Review

(5.0)

The GV6K-U12R offers full ASCII communication capabilities, which allows users to connect any ASCII based serial devices to the unit. This includes HMI panels and PLC modules. The GV6K-U12R also has expandable I/O points, which allow for up to 256 additional digital I/O points for the unit. There can also be expandable Ethernet I/O points. - AX Control Lead Technician
