GV6K-U12E-NK

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

The GV6K-U12E-NK GV6K Servo Drive Controller by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-U12E-NK to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-U12E-NK
SKU: PES-59227

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty

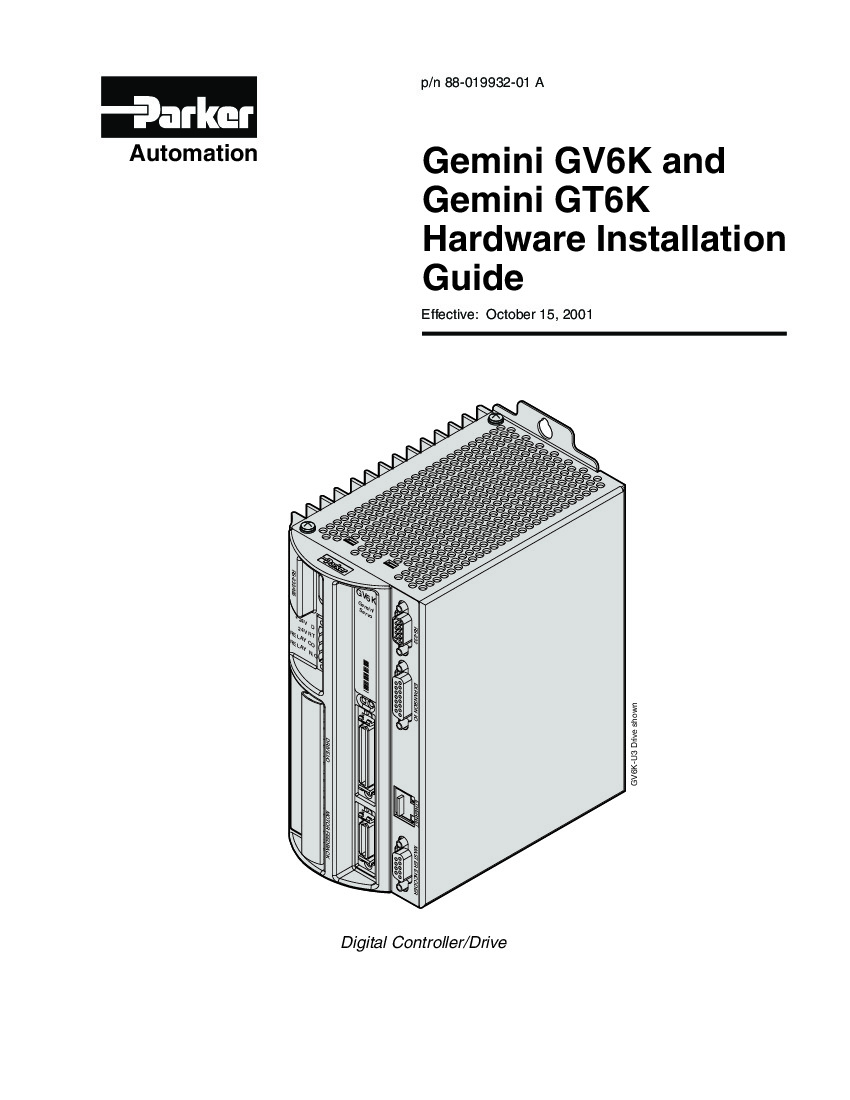

Manuals

GV6K-U12E-NK Technical Specifications

Part Number	GV6K-U12E-NK
Series	Gemini GV6K Servo Drive Controllers
Manufacturer	Parker
Phase Type	Single Phase
Bus Voltage	170/340 VDC
Feedback Option	Encoder Option
PWM	8, 16, or 20 kHz
Ethernet Type	10 Base-T
Storage Temperature	-40 to 85 degrees Celsius
Weight	5.6 lbs

About the GV6K-U12E-NK

The GV6K-U12E-NK is from the Gemini GV6K Servo Drive Controllers series. This series was manufactured by Parker and incorporates features from the Gemini GV and Gemini GV6 series, while also adding advanced features from the Compumotor 6K Controller. These advanced features include better motion control and sequencing capabilities. The GV6K-U12E-NK can be used in distributed control applications.

The GV6K-U12E-NK has a number of performance features that are important to the unit. These features are standard for the GV6K series. Some of these performance features are:

Full ASCII communication capability
Daisy chaining up to 99 units
Simple configuration and tuning
Multitasking

The GV6K-U12E-NK also has up to 300KB of program storage that is battery backed. The GV6K-U12E-NK can be used with a wide range of motors, including brushless servo and linear servo motors from Compumotors. Some of the series that the GV6K-U12E-NK is compatible with include:

SM Series
NeoMetric Series
LXR Series

Frequently Asked Questions about GV6K-U12E-NK

Does the GV6K-U12E-NK have any features for diagnostics?

Yes, the GV6K-U12E-NK has a diagnostic LEDs that allow users to see the status of the drive. There is also an error log that displays the 10 most recent errors that occurred on the drive.

What protection does the GV6K-U12E-NK provide?

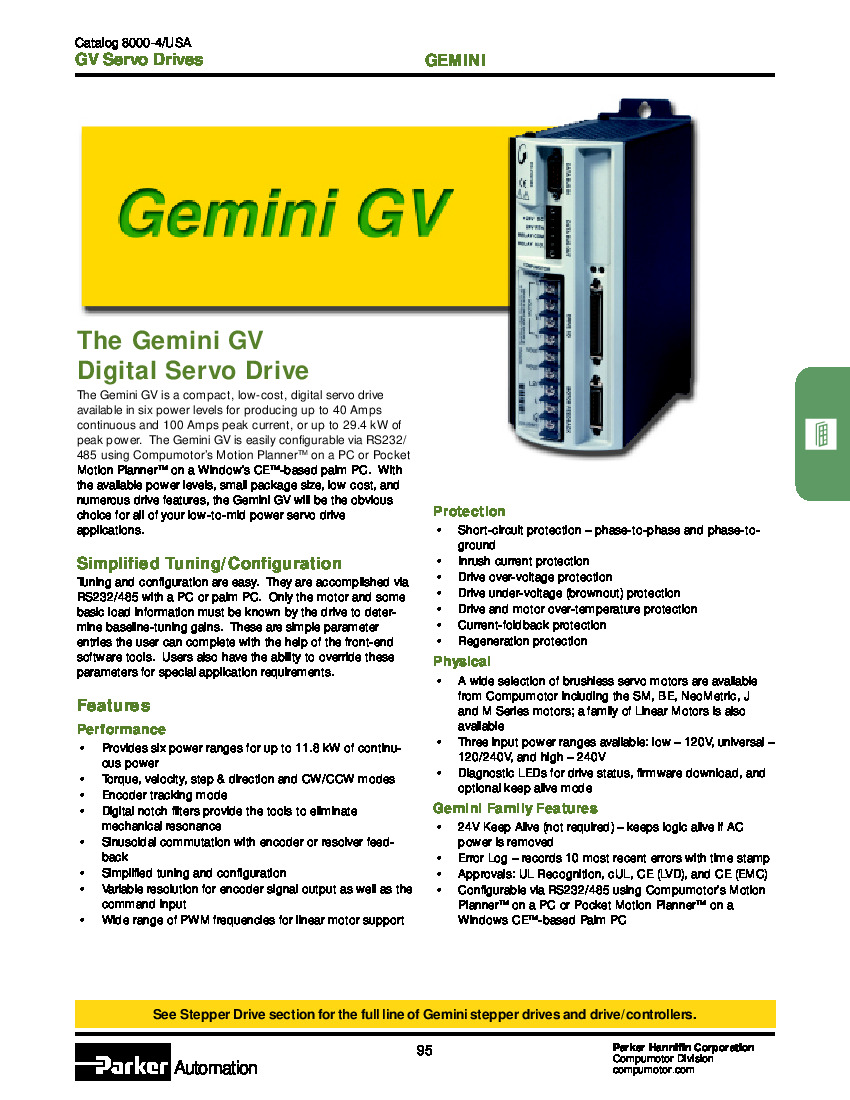

The GV6K-U12E-NK has several protective features including: drive overvoltage protection, drive undervoltage protection, and inrush current protection. A full list of protective features can be found on page 97 of the GV6K-U12E-NK_DataSheet that is located under the "Manuals" tab on this part page.

Reviews For GV6K-U12E-NK

Internal Review

(5.0)

The GV6K-U12E-NK has multiple ports that allow for external communications. The GV6K series features an RS232 port and an RS232/RS485 port for serial communications. There is also an Ethernet communication port and several I/O points. The GV6K-U12E-NK can connect to an HMI panel or PLC that is ASCII based, given it has full ASCII communications capabilities. - AX Control Lead Technician
