How much does the GV6K-U12E weigh?

The GV6K-U12E only weighs 5.6 pounds.

What serial ports does the GV6K-U12E have?

The GV6K-U12E has an RS232 port and an RS232/RS485 port.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Parker Eurotherm SSD Gemini GV6K Servo Drive Controllers GV6K-U12E

About | Product Specifications | FAQs

GV6K-U12E

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The GV6K-U12E Gemini GV6K Servo Drive Controllers by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-U12E to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-U12E
SKU: PES-59226

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty
Manuals

GV6K-U12E Technical Specifications

Part Number	GV6K-U12E
Manufacturer	Parker
Series	Gemini GV6K Servo Drive Controllers
Voltage Rating	Universal Voltage
Continuous Current	12 Amps
Continuous Power	3.5 kW
Peak Current	30 Amps
Peak Power	8.75 kW
Country of Origin	United States

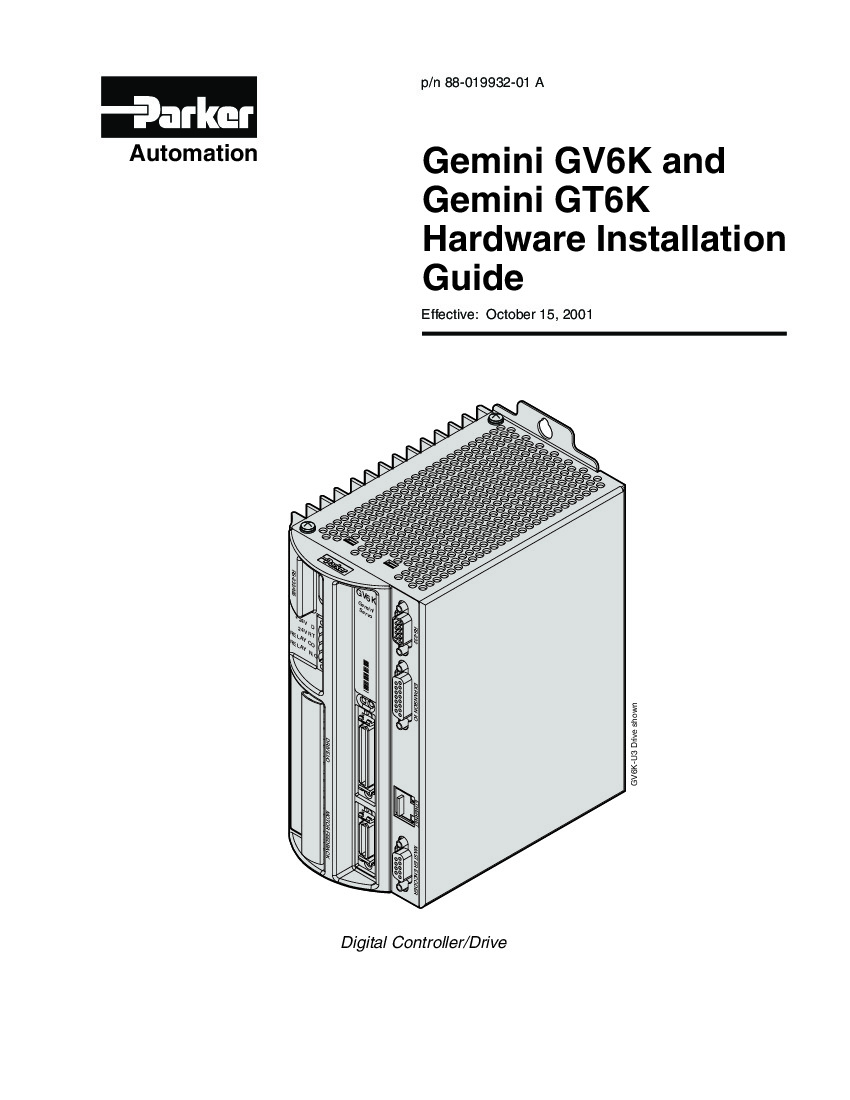

Manual Number	88-019932-01 A

About the GV6K-U12E

The GV6K-U12E is a standalone unit from the Gemini GV6K Servo Drive Controllers series. This series was manufactured by Parker as an advancement of the Gemini GV and Gemini GV6 series. The GV6K series combines the features of these two previous series, while also adding the total motion control solution and sequencing capabilities that allow for more flexibility in distributed-control applications.

The GV6K-U12E is a flexible unit given its smaller size, but there are some environmental specifications that should be followed when using the unit. If these conditions are not met, damage could be caused to the unit. Some of these environmental factors are:

Moving air temperature of 50 degrees Celsius
Still air temperature of 45 degrees Celsius
Minimum temperature of 0 degrees Celsius
Humidity rating of 0-95% non condensing

The GV6K-U12E has some important features that are useful to know about. Some of the features are:

Diagnostic LEDs
Daisy chaining of up to 99 units
24VDC Keep Alive Circuit
Error log

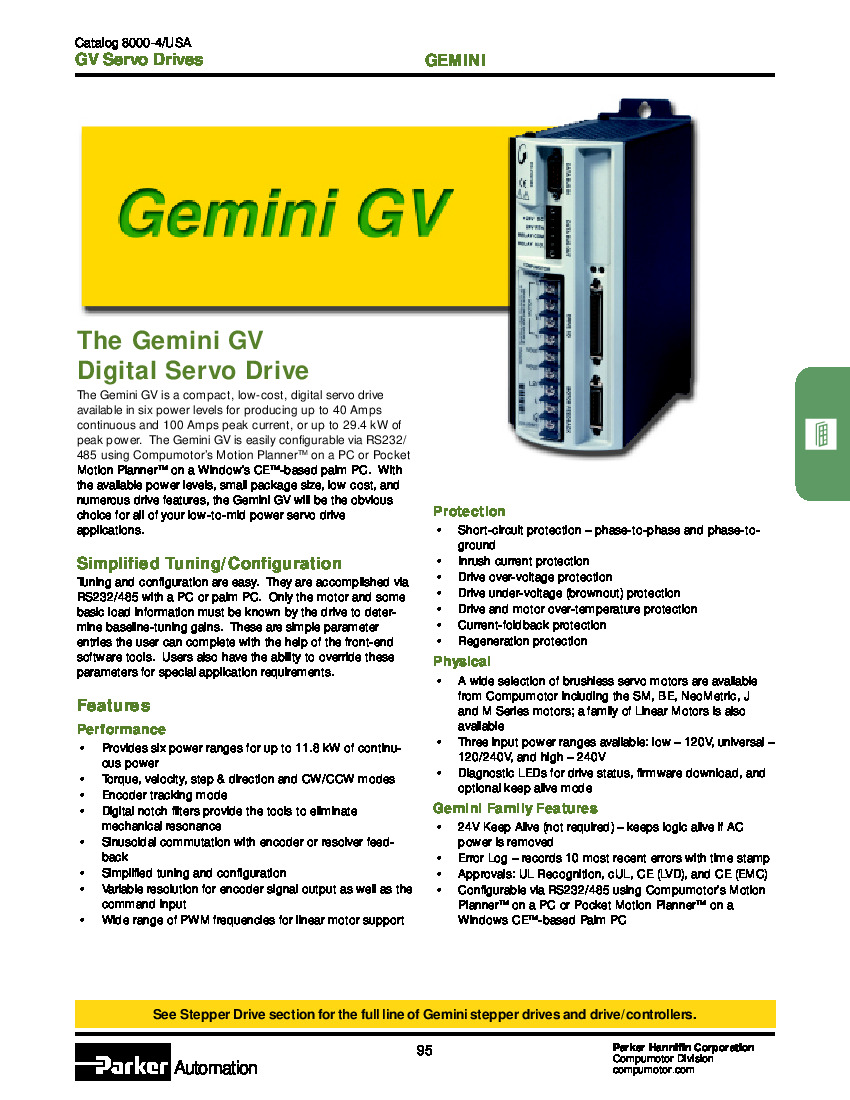

A full list of features can be found in the GV6K-U12E_DataSheet under the "Manuals" tab on this part page.

Reviews For GV6K-U12E

Internal Review

(5.0)

The GV6K-U12E has a number of input and output points that allow for connections to be made. The GV6K-U12E also has expandable serial points that give even more access to connections. These expandable points can be either digital or analog. Another feature of the GV6K-U12E is the Ethernet port that allows for external devices to be connected to the unit. - AX Control Lead Technician

Repair Services For GV6K-U12E

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1299

Our highly skilled technicians can repair your GV6K-U12E. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
