GV6K-L3R-NK

4.00 (1)
Click a star to rate this product

4.00 (1)
Click a star to rate this product

The GV6K-L3R-NK Servo Drive Controller by Parker

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-L3R-NK to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-L3R-NK
SKU: PES-59225

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty

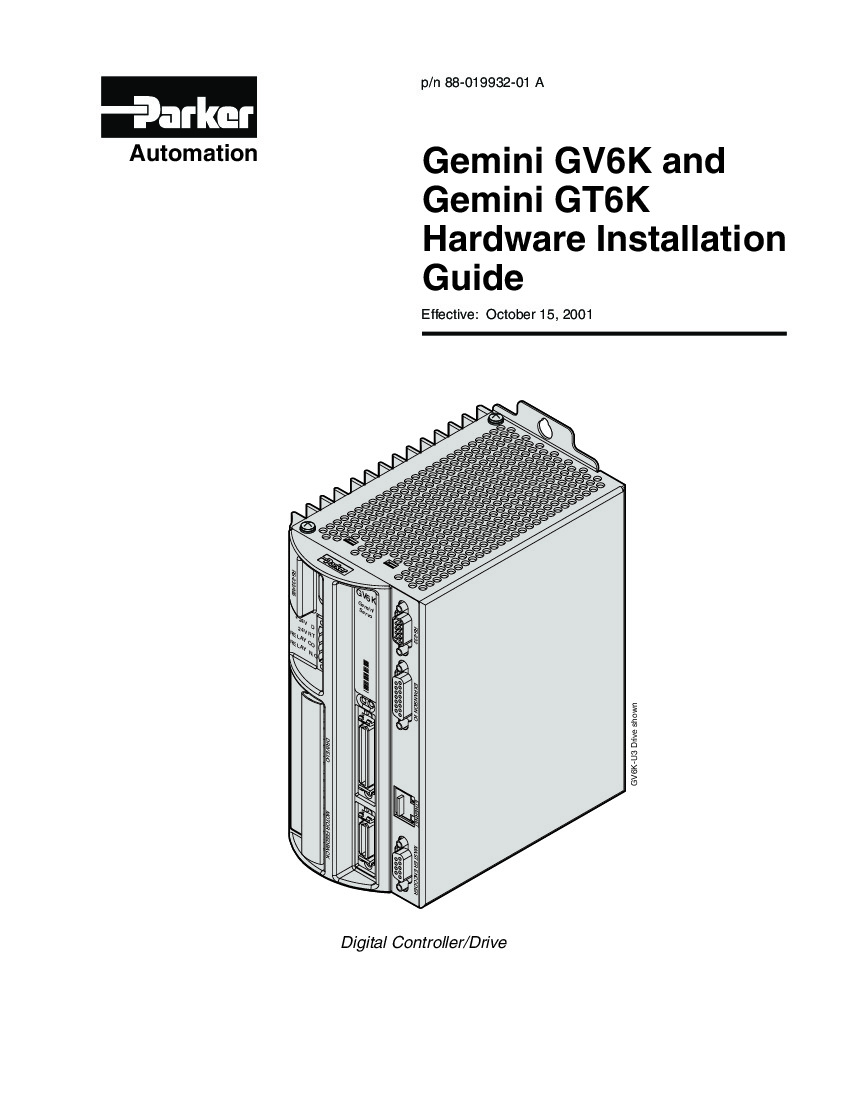

Manuals

GV6K-L3R-NK Technical Specifications

Part Number	GV6K-L3R-NK
Manufacturer	Parker
Series	Gemini GV6K Servo Drive Controllers
Voltage Rating	95 to 132 VAC
Peak Current	7.5A Peak
Feedback Option	Resolver
Frequency	50/60 Hz
Still Air Temperature	45 degrees Celsius
Moving Air Temperature	50 degrees Celsius
Storage Temperature	-40 to 85 degrees Celsius

About the GV6K-L3R-NK

The GV6K-L3R-NK is a Parker unit from the Gemini GV6K Servo Drive Controllers series. The GV6K series stems from the Gemini GV and Gemini GV6 series, which are similar but do not have the full capabilities of the GV6K series. The GV6K-L3R-NK is a standalone drive/controller that has a complete motion control solution for users.

The GV6K-L3R-NK has full ASCII communication capability, which allows the controller to be paired with an HMI panel or PLC that is ASCII based. This helps with communication between multiple devices that users may have. The GV6K-L3R-NK has an Ethernet port, multiple serial ports, and onboard I/O ports. The GV6K-L3R-NK can also be easily programmed and configured through the RS232/RS485 port that it has.

The GV6K series offers protective features, which is helpful when running the drives. Some of these protective features are:

Drive over-voltage protection
Current foldback protection
Regeneration protection
Short circuit protection

The GV6K-L3R-NK is also equipped with an error log that records the last 10 errors with a time stamp of when the error occurred. This allows users the chance to see what kind of error might have occurred while in operation.

Frequently Asked Questions about GV6K-L3R-NK

How many programs can run at the same time on the GV6K-L3R-NK?

There can be up to 10 programs running simultaneously on the GV6K-L3R-NK.

Does the GV6K-L3R-NK have expandable inputs and outputs?

Yes, the GV6K-L3R-NK can have up to 256 additional discrete digital I/O points, 64 analog I/O points, or a combination of both digital and analog points.

Reviews For GV6K-L3R-NK

Internal Review

(5.0)

The GV6K-L3R-NK can be used with a range of Compumotor motors, including the LXR and SL linear motor series. The GV6K series is a more advanced series than the Gemini GV and Gemini GV6 series. The advancement allows for total motor control, as well as better sequencing capabilities. The GV6K-L3R-NK also allows for electronic cam profiling and scaling functionalities. - AX Control Lead Technician

Repair Services For GV6K-L3R-NK

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1367

Our highly skilled technicians can repair your GV6K-L3R-NK. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty
