Does the GV6K-L3E-NK have an Ethernet port?

Yes, the GV6K-L3E-NK has a 10 Base-T Ethernet communication port.

How much storage does the GV6K-L3E-NK have?

The standard storage for GV6K units is 300KB.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Parker Eurotherm SSD Gemini GV6K Servo Drive Controllers GV6K-L3E-NK

About | Product Specifications | FAQs

GV6K-L3E-NK

4.00 (2)
Click a star to rate this product

4.00 (2)
Click a star to rate this product

The GV6K-L3E-NK Gemini GV6K Servo Drive Controller by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-L3E-NK to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-L3E-NK
SKU: PES-59224

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty
Manuals

GV6K-L3E-NK Technical Specifications

Part Number	GV6K-L3E-NK
Manufacturer	Parker
Series	Gemini GV6K Servo Drive Controllers
Phase Type	Single Phase
Bus Voltage	170 VDC
Inputs	8 programmable; 1 analog
Outputs	6 programmable; 2 analog monitors

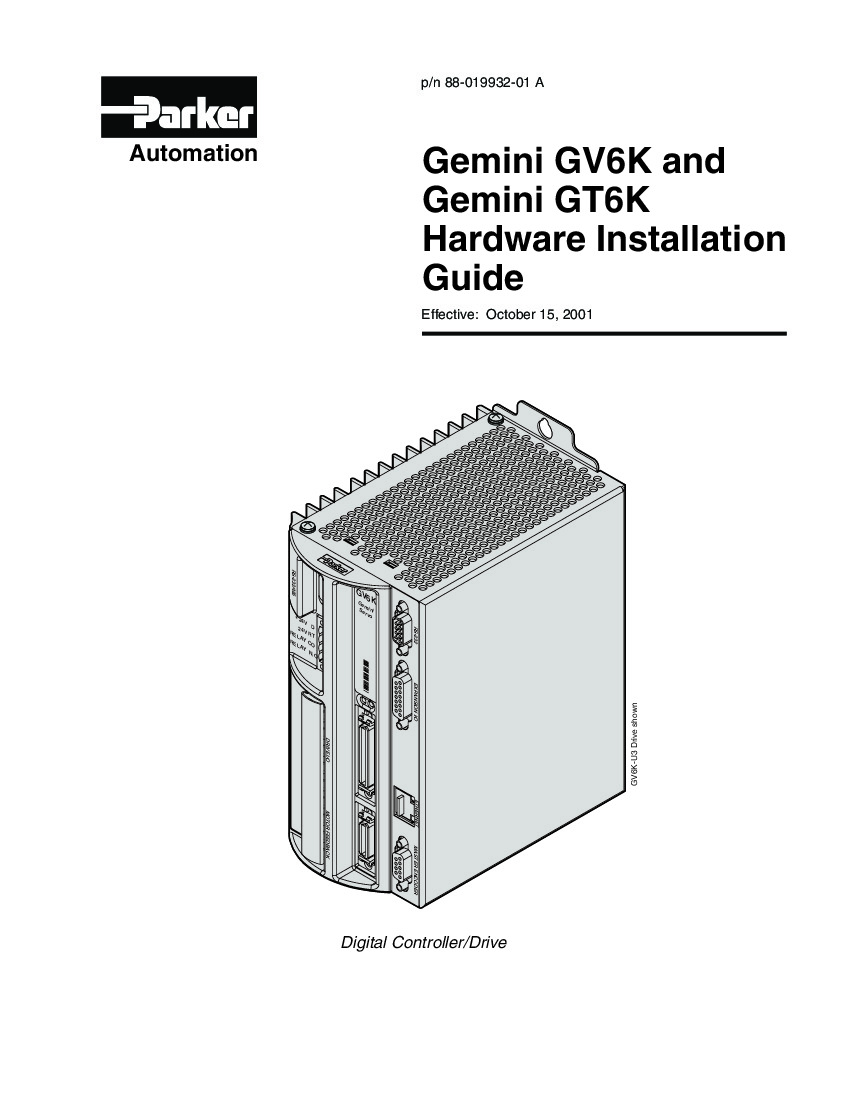

Manual Number	88-019932-01 A
Peak Power	1.1 kW
Continuous Power	3 Amps

About the GV6K-L3E-NK

The GV6K-L3E-NK is a Gemini GV6K Servo Drive Controller that was manufactured by Parker. There are multiple advancements that the GV6K-L3E-NK has when compared to other Gemini product lines, like the Gemini GV or Gemini GV6. The GV6K line has highly advanced motion control and sequencing capabilities, which comes from the Compumotor's 6K Controller.

The GV6K-L3E-NK has several important features that are standard for the GV6K series. Some of these features are:

Complete ASCII communication capability
Simplified configuration
Diagnostic LEDs
Program monitoring
Multitasking capabilities

The GV6K-L3E-NK can be used with a wide range of motors, including brushless servo motors and linear servo motors. These motor series are also from the Compumotor family. Some of the motor series are:

SM Series
NeoMetric Series
SL Series
LXR Series

Reviews For GV6K-L3E-NK

Internal Review

(5.0)

The GV6K-L3E-NK offers complete capabilities for controlling motors in one package. The GV6K-L3E-NK can be configured and programmed using the RS232/RS485 port that the unit has. The GV6K-L3E-NK also offers a variety of protective features. Some of these include short circuit protection, drive and motor over temperature protection, and inrush current protection. - AX Control Lead Technician

Repair Services For GV6K-L3E-NK

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1345

Our highly skilled technicians can repair your GV6K-L3E-NK. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
