Home Parker Eurotherm SSD Gemini GV6K Servo Drive Controllers GV6K-H20R-NK

About | Product Specifications | FAQs

GV6K-H20R-NK

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The GV6K-H20R-NK Servo Drive Controller by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-H20R-NK to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-H20R-NK
SKU: PES-59222

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty
Manuals

GV6K-H20R-NK Technical Specifications

Part Number	GV6K-H20R-NK
Series	Gemini GV6K Servo Drive Controllers
Manufacturer	Parker
Voltage Input	High Voltage Input
Continuous Current	20 Amps
Country of Manufacturer	United States
Weight	9.6 lbs
Serial Ports	RS232/RS485; RS232
Still Air Temperature	45 degrees Celsius
Moving Air Temperature	50 degrees Celsius

About the GV6K-H20R-NK

The GV6K-H20R-NK is from the Gemini GV6K Servo Drive Controllers series. This series was manufactured by Parker as an advancement to the Gemini GV and GV6 series. The GV6K-H20R-NK offers a complete motion control solution for users. The GV6K series provides a greater amount of flexibility for users and their applications.

The GV6K-H20R-NK can be configured and programmed using the RS232/485 port, which allows for easy configuration of the drive. The GV6K-H20R-NK can also be connected to any ASCII based serial device, which includes HMI panels and PLC ASCII modules. The GV6K-H20R-NK is a standalone drive, which cuts down on the number of units needed for controls.

There are a number of motors that the GV6K-H20R-NK can be used with. These include:

SM Series
NeoMetric Series
LXR Series
SL Series

These motors are either brushless servo motors or linear servo motors. The GV6K-H20R-NK has multiple PWM frequencies, which helps with linear motor support.

The GV6K-H20R-NK also has several control features that are important for its function. Some of these are:

Registration
PLC scan
Scaling
S-curve profiling

Frequently Asked Questions about GV6K-H20R-NK

Does the GV6K-H20R-NK have manuals related to it?

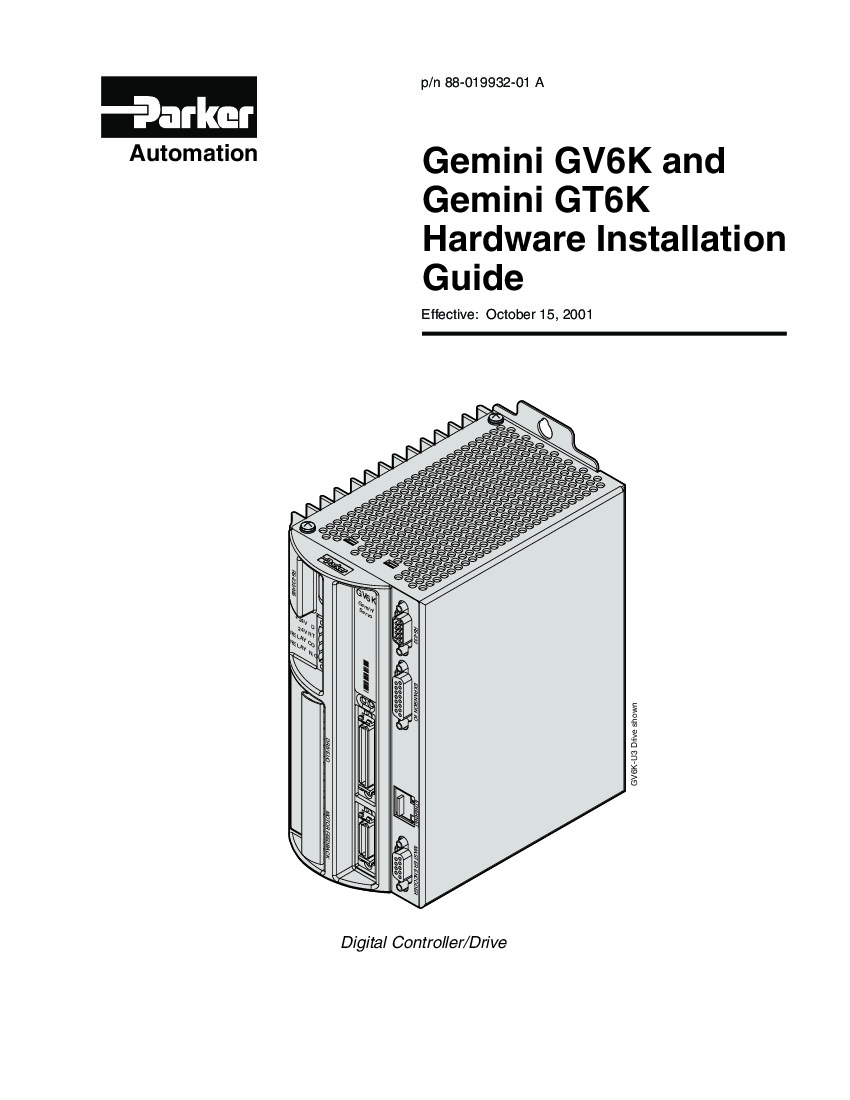

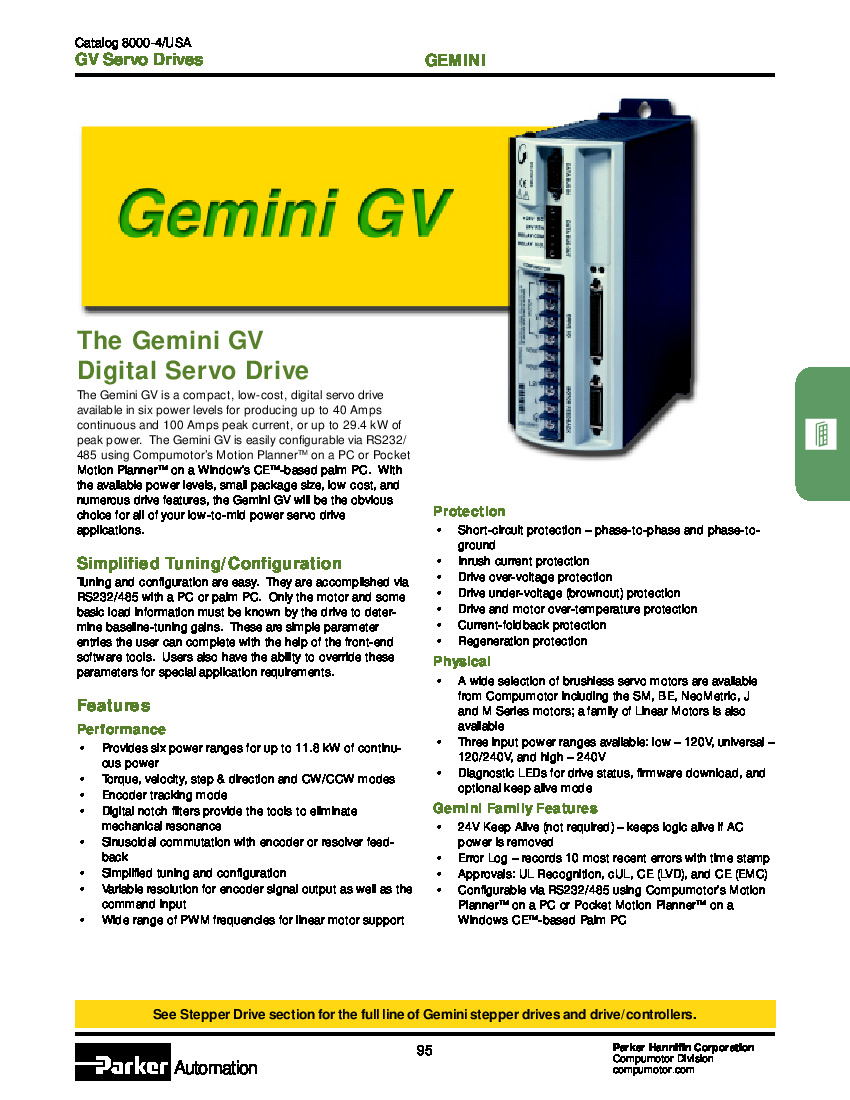

Yes, there are several manuals related to the GV6K-H20R-NK. There is a comprehensive manual with processes related to the Gemini GV6K series, and there is a data sheet that has an overview of the series.

What is the Keep Alive Circuit on the GV6K-H20R-NK?

The Keep Alive Circuit requires a 24 VDC supply and it powers the controller section independent of AC power. The circuit also maintains vital position and controller information.

Reviews For GV6K-H20R-NK

Internal Review

(5.0)

The GV6K-H20R-NK is a flexible and reliable choice for users to rely on. The GV6K-H20R-NK has a high voltage rating, which ranges from 208 to 265 VAC. The unit has a number of protective features that help the drive remain reliable. The GV6K-H20R-NK can be connected to external devices, including HMIs and PLCs, as long as they are ASCII compatible. - AX Control Lead Technician

Repair Services For GV6K-H20R-NK

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1489

Our highly skilled technicians can repair your GV6K-H20R-NK. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
