GV6K-H20R

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

The GV6K-H20R Gemini GV6K Servo Drive Controller by Parker

AVAILABILITY:

IN STOCK
SHIPS IN 1-2 WEEKS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV6K-H20R to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV6K-H20R
SKU: PES-59221

Manufacturer: Parker Eurotherm SSD
Series: Gemini GV6K Servo Drive Controllers

Description
Repairs
Warranty

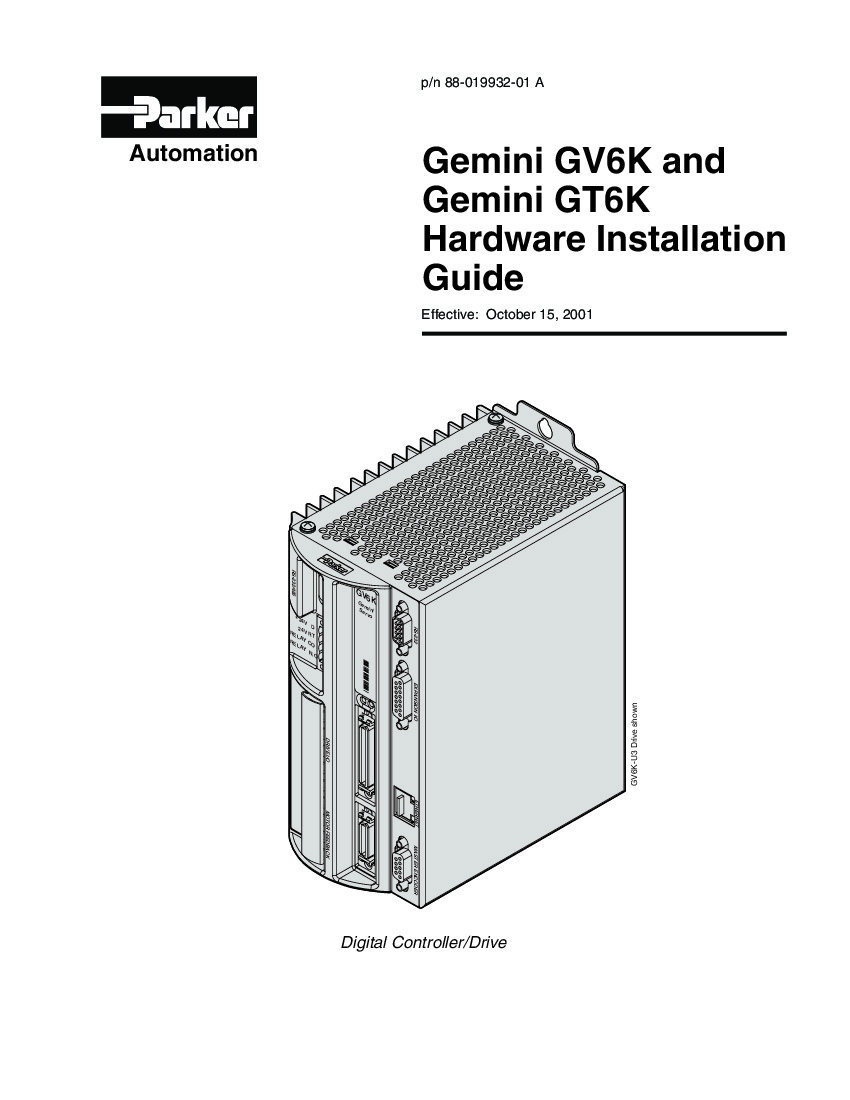

Manuals

GV6K-H20R Technical Specifications

Part Number	GV6K-H20R
Manufacturer	Parker
Series	Gemini GV6K Servo Drive Controllers
Peak Current	50 A peak
Feedback Option	Resolver
Manual Number	88-019932-01 A
Ethernet Type	10 Base-T
Inputs	8 programmable; 1 analog
PWM	8, 16, or 20 kHz
Voltage Rating	208-265 VAC

About the GV6K-H20R

The GV6K-H20R is a Parker drive from the Gemini GV6K Servo Drive Controllers series. The GV6K-H20R offers users a complete motion control solution in a single device. The GV6K series allows for greater flexibility in distributed-control applications.

The GV6K-H20R has the control functionalities from Compumotor's 6K Controller, which allows for the increased control abilities that this drive has. This also allows for advanced sequencing capabilities. The GV6K-H20R has a number of standard control features that are important for the overall performance of the drive. Some of these are:

Multitasking (up to 10 individual programs simultaneously)
Full scaling functionality
PLC scan mode
Electronic cam profiling

The GV6K-H20R also has expandable I/O features. There can be up to 256 additional discrete I/O points and/or 192 Ethernet I/O points. This is in addition to the onboard I/O ports that the GV6K-H20R already has. There are multiple programmable inputs and outputs, as well as an analog input and a relay output.

Another feature of the GV6K-H20R is the comprehensive program monitoring that it has, which allows for users to get updates on the programs it is running. There are also LED indicators that can alert users to any status or diagnostic issues within the drive.

Frequently Asked Questions about GV6K-H20R

Does the GV6K-H20R have any protective features?

Yes, the GV6K-H20R has a variety of protective features, including drive and motor overtemperature protection and regeneration protection.

Can the GV6K-H20R be connected to external devices, such as HMIs?

Yes, the GV6K-H20R can be connected to any ASCII based serial device, which includes HMI panels.

Reviews For GV6K-H20R

Internal Review

(5.0)

The GV6K-H20R combines the best drive and control features of the GV and GV6 series with the more advanced control functions of the GV6K series. The GV6K-H20R is one of the most powerful units from the GV6K series, with connectivity and front end software abilities. The GV6K-H20R can be used with a variety of motors, including brushless and linear servo motors. - AX Control Lead Technician

Repair Services For GV6K-H20R

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1472

Our highly skilled technicians can repair your GV6K-H20R. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
